Con
nection
to a PLC
External Device Setup Manual
18.3.7

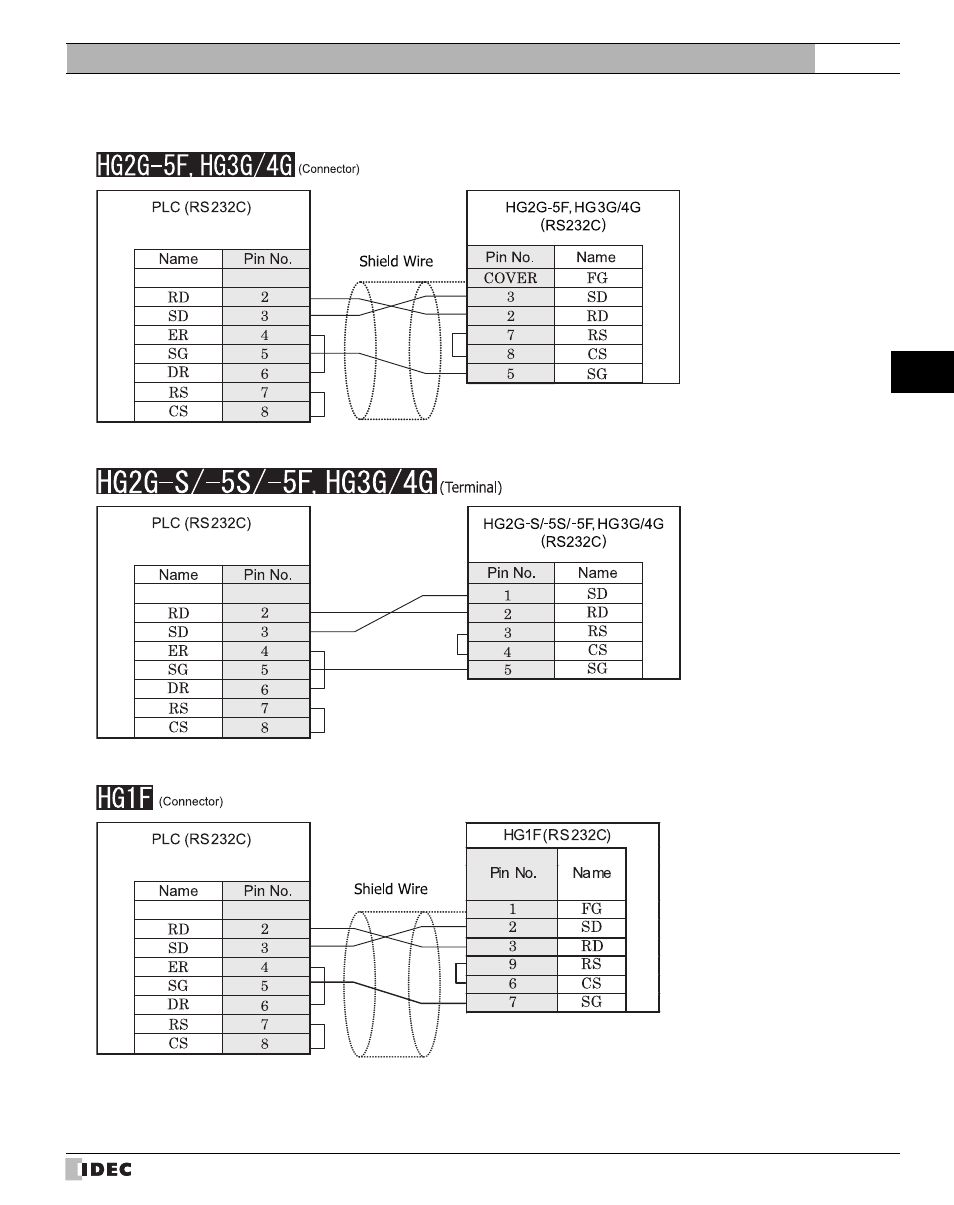

Connection Diagram 7: MICREX-SX series (Loader connection connector)
D-sub, 9P connector socket type
D-sub, 9P connector plug type
D-sub, 9P connector socket type
Terminal
D-sub, 9P connector socket type
D-sub, 9P connector socket type
