Chapter 2
302
External Device Setup Manual
9
JTEKT (Toyoda)
9.1
Connection Table
9.1.1
Compatible PLCs
9.2

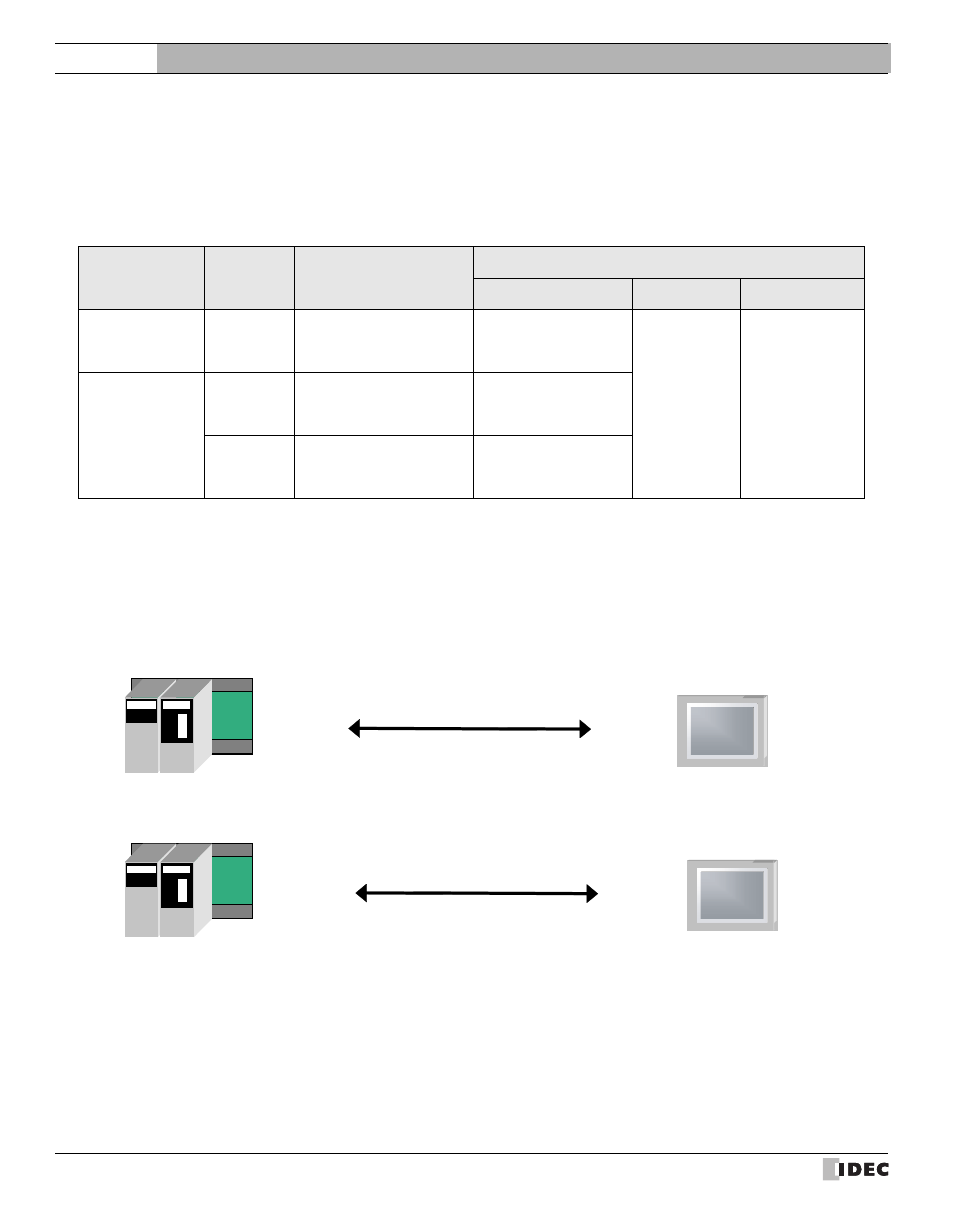

System Configuration
This is the system configuration for the connection of JTEKT (Toyoda) PLCs to the MICRO/I.
9.2.1
TOYOPUC-PC3J series (using the Built-in Link)
Series Name
System
(CPU unit)
Link Unit
WindO/I-NV2 Settings
Interface
Flow Control
Host I/F Driver
TOYOPUC-PC2J
PC2J
*1
*1. We tested with the PLC of these parts.
Not required
(connects to Built-in Link)
RS422/485 2-wire
Connection Diagram 1
(refer to P303)
Hardware
TOYOPUC-PC3J
TOYOPUC-PC3J
PC3J
Not required
(connects to Built-in Link)
RS422/485 2-wire
Connection Diagram 1
(refer to P303)
Not required
(connects to Built-in Link)
RS422/485 2-wire
Connection Diagram 2
(refer to P306)
MICRO/I
RS422
Connection Diagram 1
PC3J, PC3JD
MICRO/I
RS422
Connection Diagram 2
PC3JG
