Con
nection
to a PLC

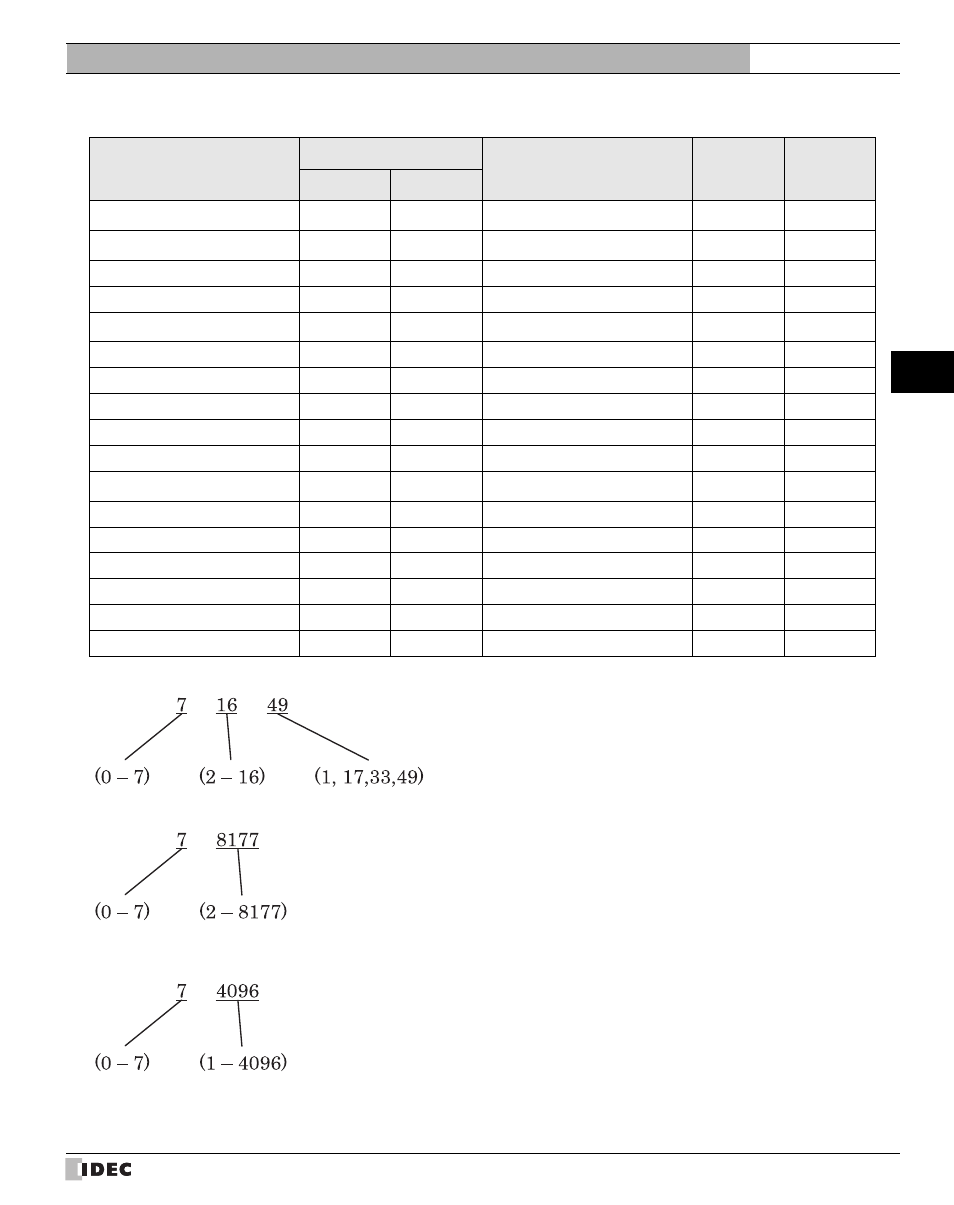

External Device Setup Manual
Word Device
Device Name
Device Symbol
Address Range
Read
/Write
Address
Gradual
MICRO/I
PLC
Input Relay (word)
XW
X
00201 - 71649
R
Dec
*1
*1. Please specify in the following ranges.
Output Relay (word)
YW
Y
00201 - 71649
R/W
Int. Relay (word)
IW
I
00001 - 65521
R/W
Dec
Comm. Relay (word)
EW
E
0001 - 4081
R/W
Dec
Link Relay (word)
LW
L
00001 - 78177
R/W
Dec
*2
*2. Please specify in the following ranges.
Timer (Current Value)
TP
T
0001 - 3072
R
Dec
Counter (Current Value)
CP
C
0001 - 3072
R
Dec
Timer (Preset Value)
TS
T
0001 - 3072
R/W
Dec
Counter (Preset Value)
CS
C
0001 - 3072
R/W
Dec
Data Register
D
D
00001 - 65535
R/W
Dec
Link Register
W
W
00001 - 78192
R/W
Dec
*3
*3. Please specify in the following ranges.
File Register
B
B
00001 - 262144
R/W
Dec
Spec. Relay
MW
M
0001 - 9969
R/W
Dec
Spec. Register
Z
Z
0001 - 1024
R/W
Dec
Comm. Register
R
R
0001 - 4096
R/W
Dec
Index Register
V
V
001 - 256
R/W
Dec
Cache register
F
F
000001 - 524288
R/W
Dec
