Chapter 7
652
External Device Setup Manual

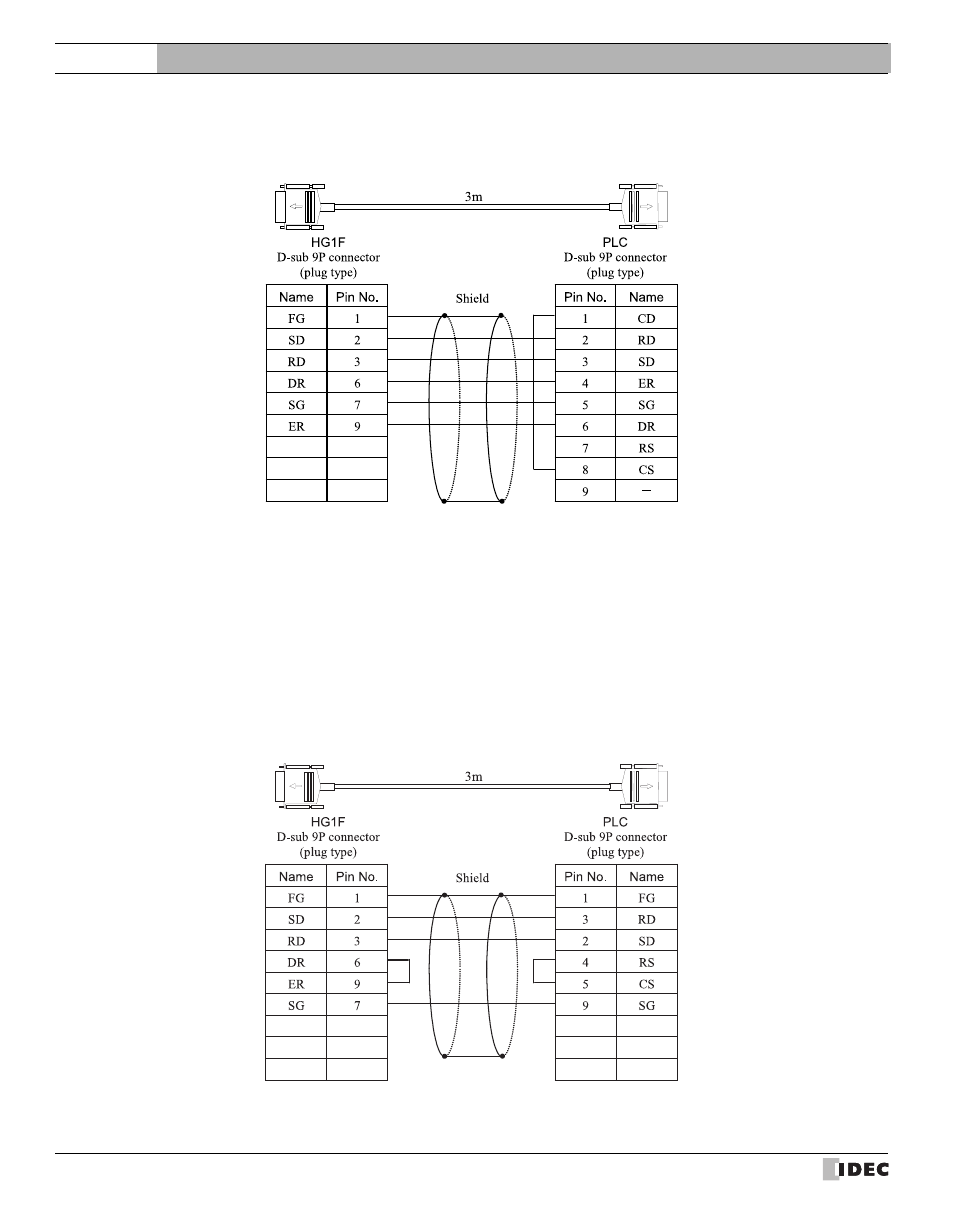

1.14 PLC connection cable: HG9Z-XC203
Direct connection cable for the HG1F (RS232C type) SIO1 and PLC (RS232C, D-sub 9P, Mitsubishi Computer Link Unit).
1.15 PLC connection cable: HG9Z-XC213
Direct connection cable for the HG1F (RS232C type) SIO1 and PLC (RS232C, D-sub 9P, Omron CPU Unit RS232C I/F except for
C20H/28H/40H).
