Con
nection
to a PLC
External Device Setup Manual
MICRO/I
RS422

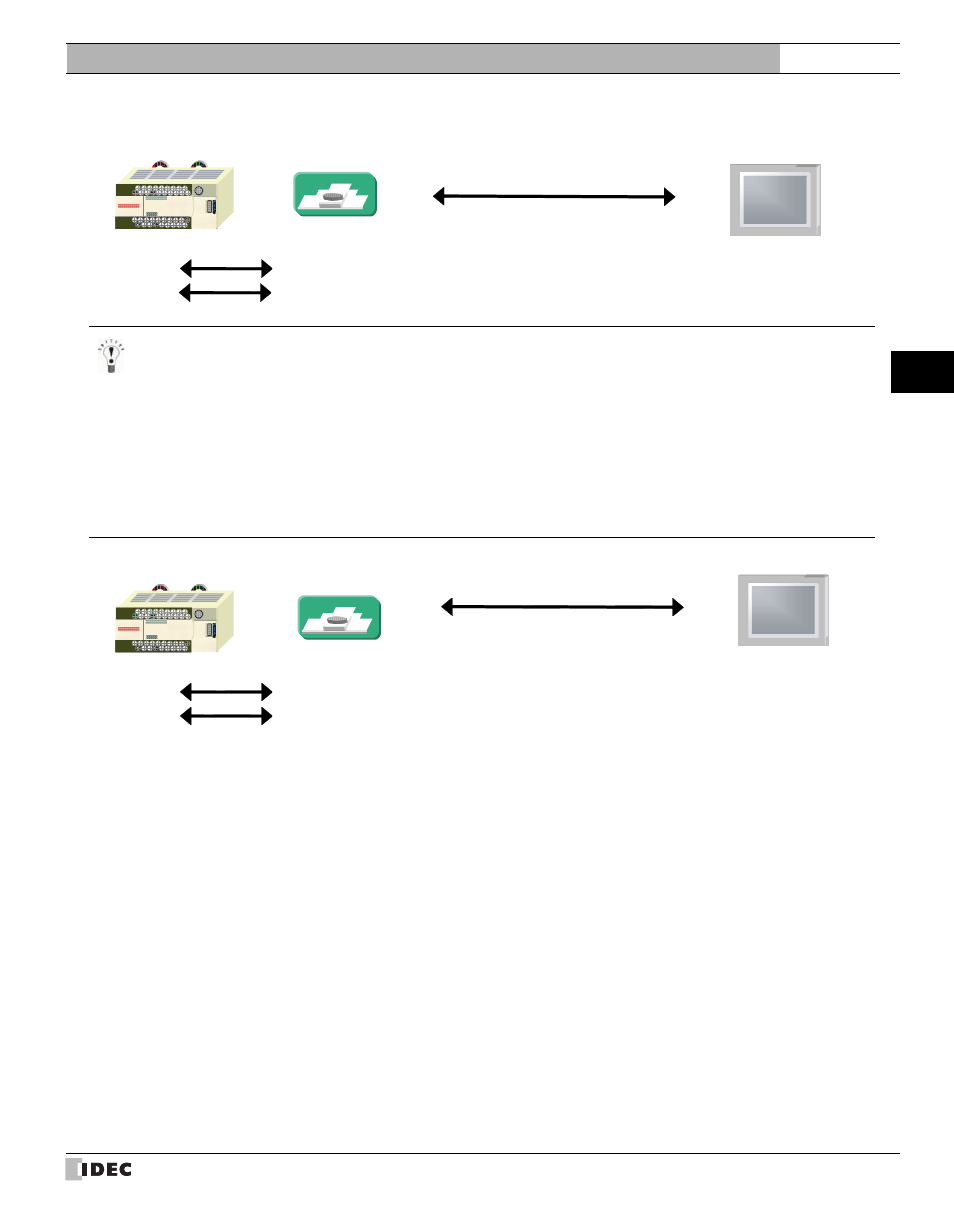

Connection Diagram 10
FX2N
FX2N-422-BD
FX1N
FX1N-422-BD
- In case of HG2G-5F, HG3G/4G a connection cable is available. (part number: HG9Z-XC305).
- In case of HG2G-S/-5S/-5F, HG3G/4G a connection cable is available for Connection Diagram for Connection Diagram
10
(part number: HG9Z-XC275).
Please do not use the HG9Z-XC275 for the MELSEC-FX3U/FX3UC-32-MT-LT because the Mini Din connector inter-
feres with the housing of the PLC.
- In case of HG1F a connection cable is available for Connection Diagram 10 (part number: HG9Z-XC245).
Please do not use the HG9Z-XC245 for the MELSEC-FX3U/FX3UC-32-MT-LT because the Mini Din connector inter-
feres with the housing of the PLC.
RS232C
MICRO/I
Connection Diagram 5
FX2N
FX2N-232-BD
FX1N
FX1N-232-BD
