651
1 Communication Cables
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
Co
mmun
ication
Ca
ble
s
External Device Setup Manual

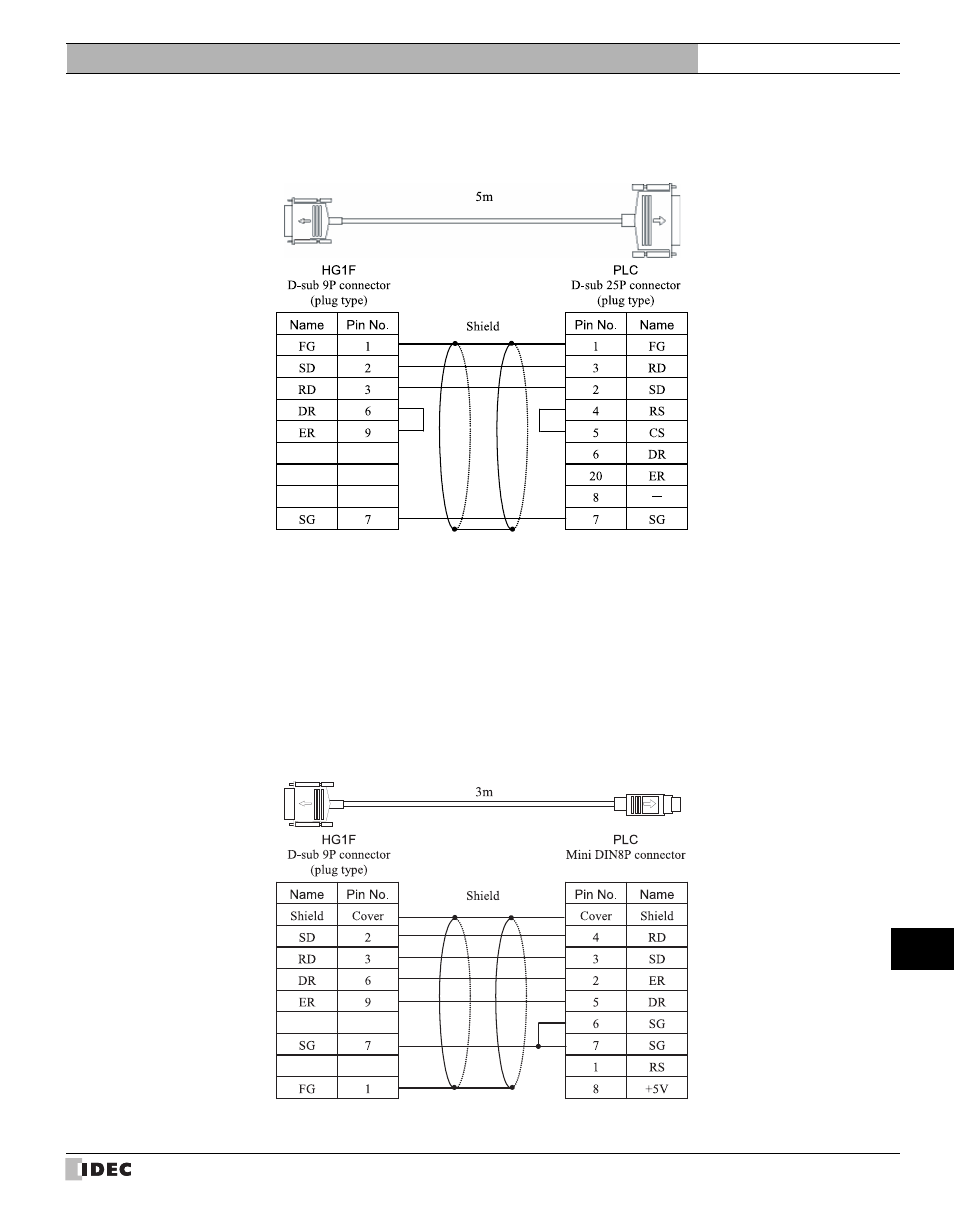

1.12 PLC connection cable: HG9Z-XC155
Direct connection cable for the HG1F (RS232C type) SIO1 and PLC (RS232C, D-sub 25P, Omron Host Link Unit).
1.13 PLC connection cable: HG9Z-XC183
Direct connection cable for the HG1F (RS232C type) SIO1 and the IDEC OpenNet Controller and MICROSmart Port2.
