Con
nection
to a PLC
External Device Setup Manual
11.3 Connection Diagram
The connector types given in the Connection Diagrams are for the unit and not for the cable. For details regarding wiring,
refer to Chapter 1 "3 Important Points Regarding Wiring" on page 19.

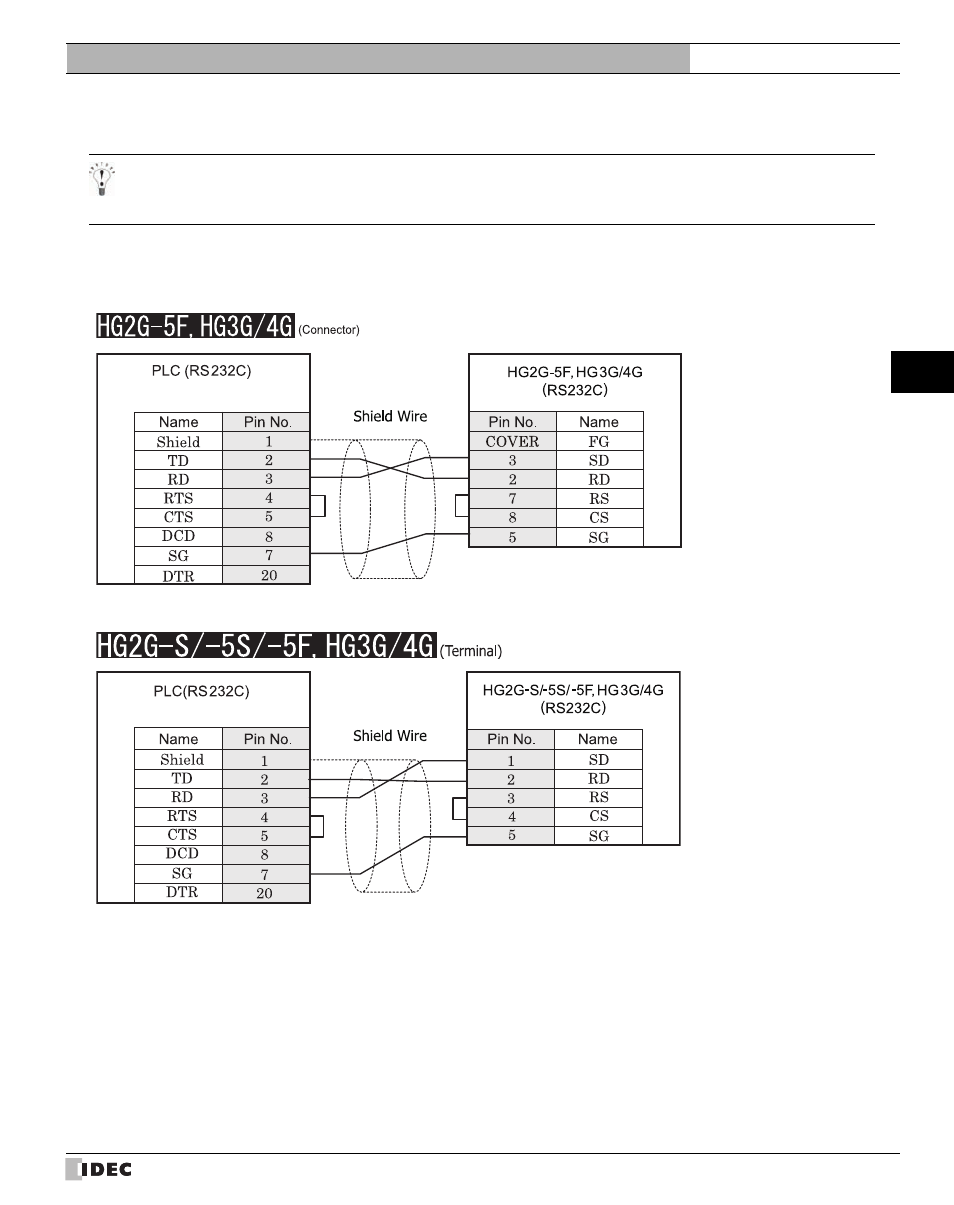

11.3.1 Connection Diagram 1: Series 90-30 Communication Coprocessor Module (CMM) (RS232C)
to MICRO/I
D-sub, 25P connector socket type (unit side) D-sub, 9P connector plug type
D-sub, 25P connector socket type (unit side) Terminal
