Page 626

Chapter 5
608
External Device Setup Manual

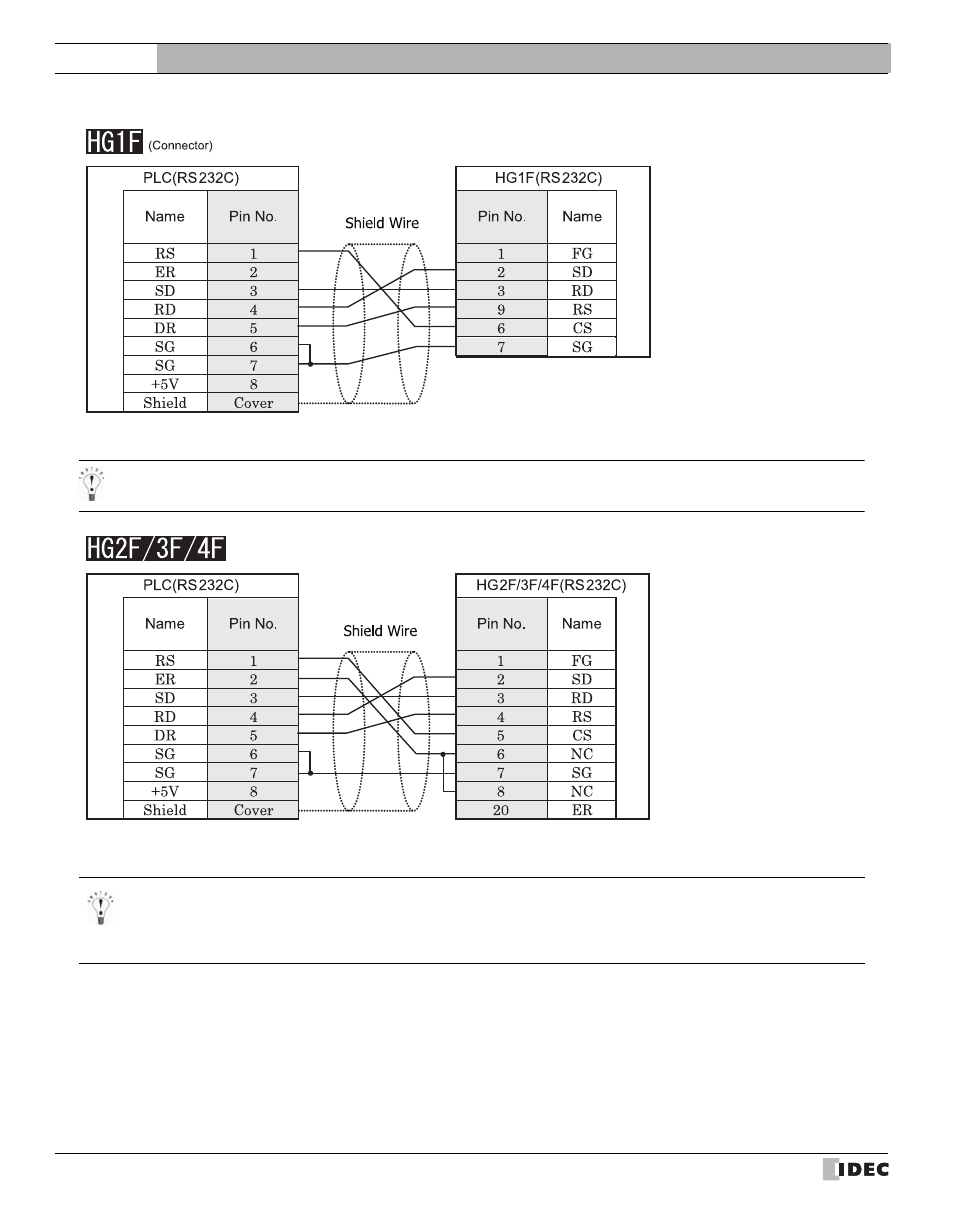

In case of HG1F a connection cable is available. (part number: HG9Z-XC183).
Mini Din 8P
D-sub, 9P connector socket type
Mini Din 8P
D-sub, 25P connector socket type
- In case of HG2F/3F/4F a connection cable is available. (part number: HG9Z-3C125).
- The connection diagram 1 is not same as HG9Z-3C125. But both diagrams are available. Refer to Chapter 7 "1.4 PLC
connection cable: HG9Z-3C125" on page 645 about the connection diagram of HG9Z-3C125.
