Chapter 2
200
External Device Setup Manual
4.5.3
PLC-5 (Half Duplex)
Bit Device
Device Name
Device Symbol
Address Range
Read
/Write
Address
Gradual
MICRO/I
PLC
Input I
I
0 - 27717
*1

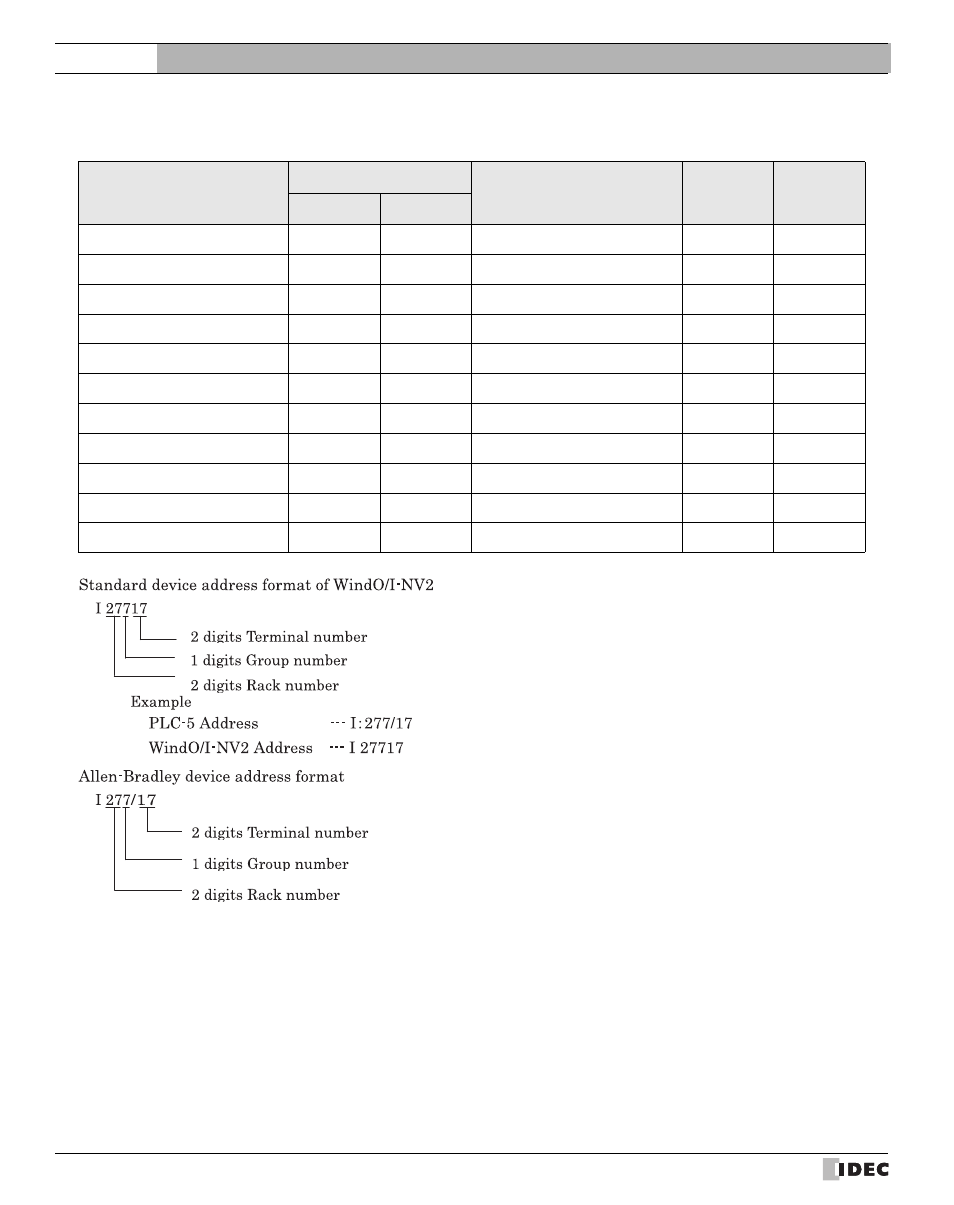

*1. Address selection rule is as follows.
R/W
8
Output O
O
0 - 27717
R/W
8
Bit B
B
300000 - 9999915
*2
R
10
Timer (complete)
TDN
T
3000 - 99999
*3
R
10
Timer (timing)
TT
T
3000 - 99999
R
10
Timer (enable)
EN
T
3000 - 99999
R
10
Counter (complete)
CDN
C
3000 - 99999
R
10
Counter (up enable)
CU
C
3000 - 99999
R
10
Counter (down enable)
CD
C
3000 - 99999
R
10
Counter (overflow)
OV
C
3000 - 99999
R
10
Counter (underflow)
UN
C
3000 - 99999
R
10
