3 Omron
2
Con
nection
to a PLC
External Device Setup Manual
3.3.6

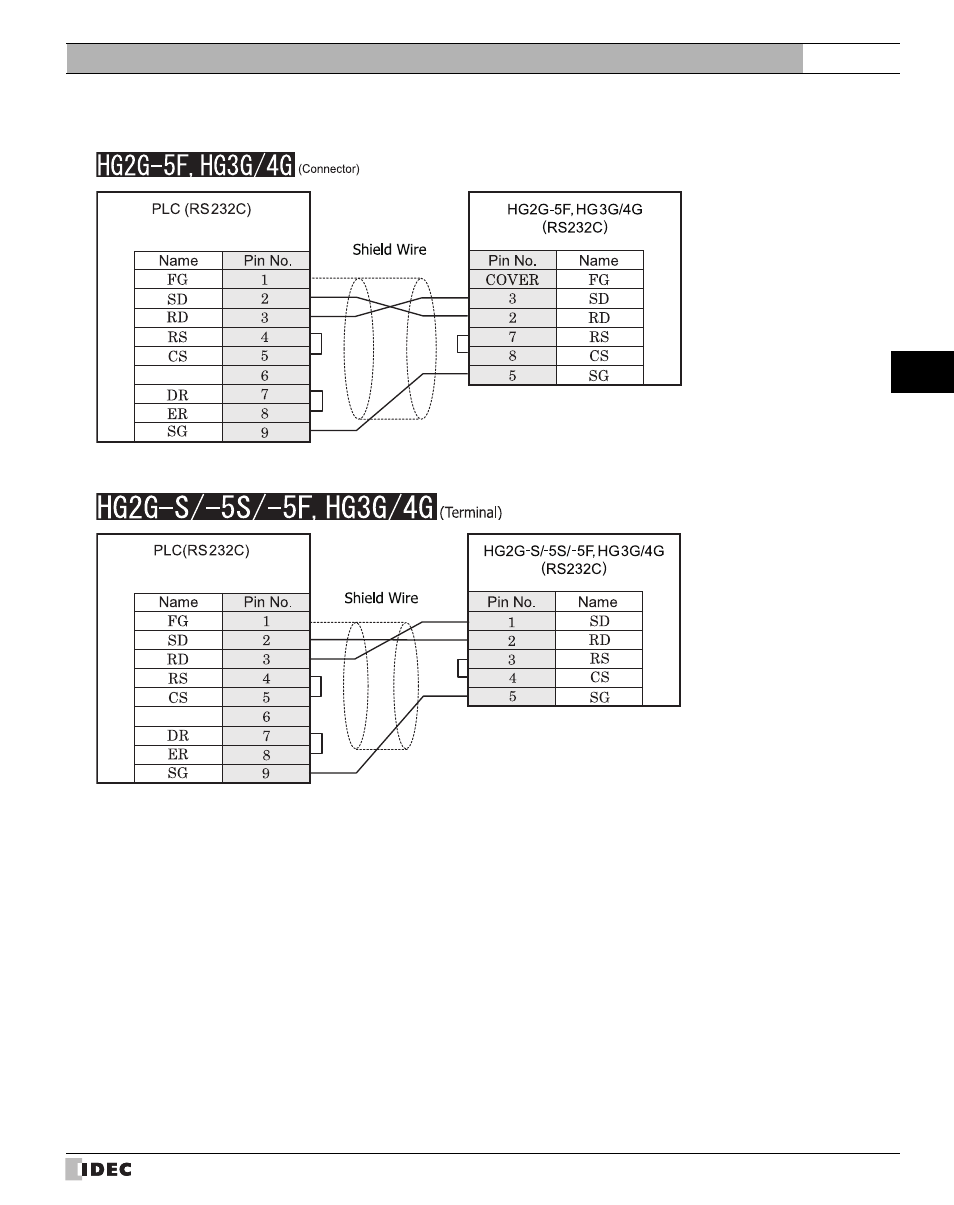

Connection Diagram 6: PLC (RS232C) I/F to MICRO/I
D-sub, 9P connector socket type
D-sub, 9P connector plug type
Terminal
