Refer to p89) – IDEC High Performance Series User Manual
Page 107

89
2 Mitsubishi
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Con
nection
to a PLC
External Device Setup Manual
2.3.9

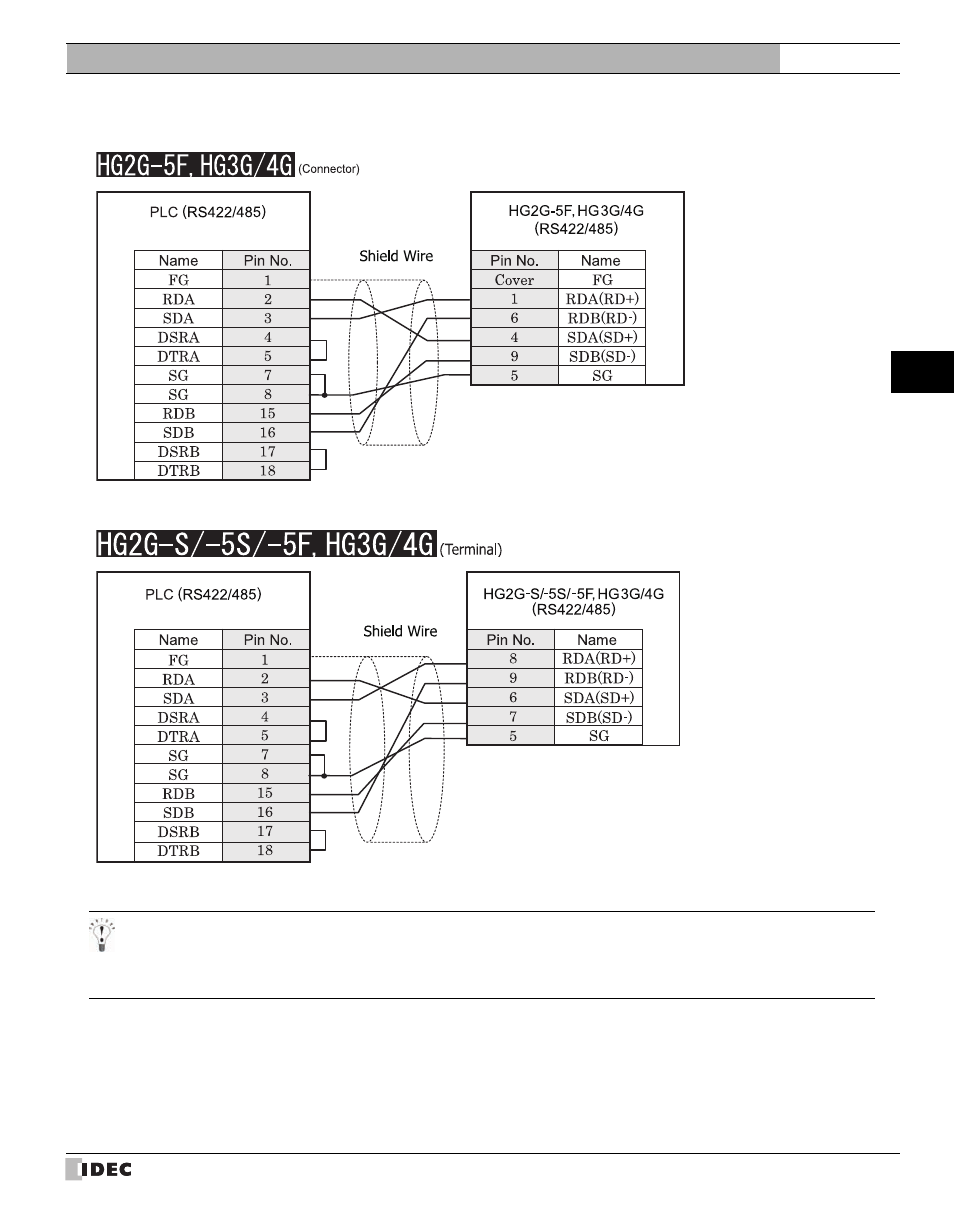

Connection Diagram 9: Computer Link Unit (RS485) to MICRO/I
There is no pin number corresponding to TERM on the HG2G-S/-5S/-5F, HG3G/4G. When inserting a termination resistor,
use a communication switch. For the setting of the switch, refer to Appendix "3 Important Points Regarding Wiring" on
page 19.
D-sub, 25P connector socket type
D-sub, 9P connector plug type
D-sub, 25P connector socket type
Terminal
