- WO, WI, WB is same devices as O, I, B. They are used as word devices.

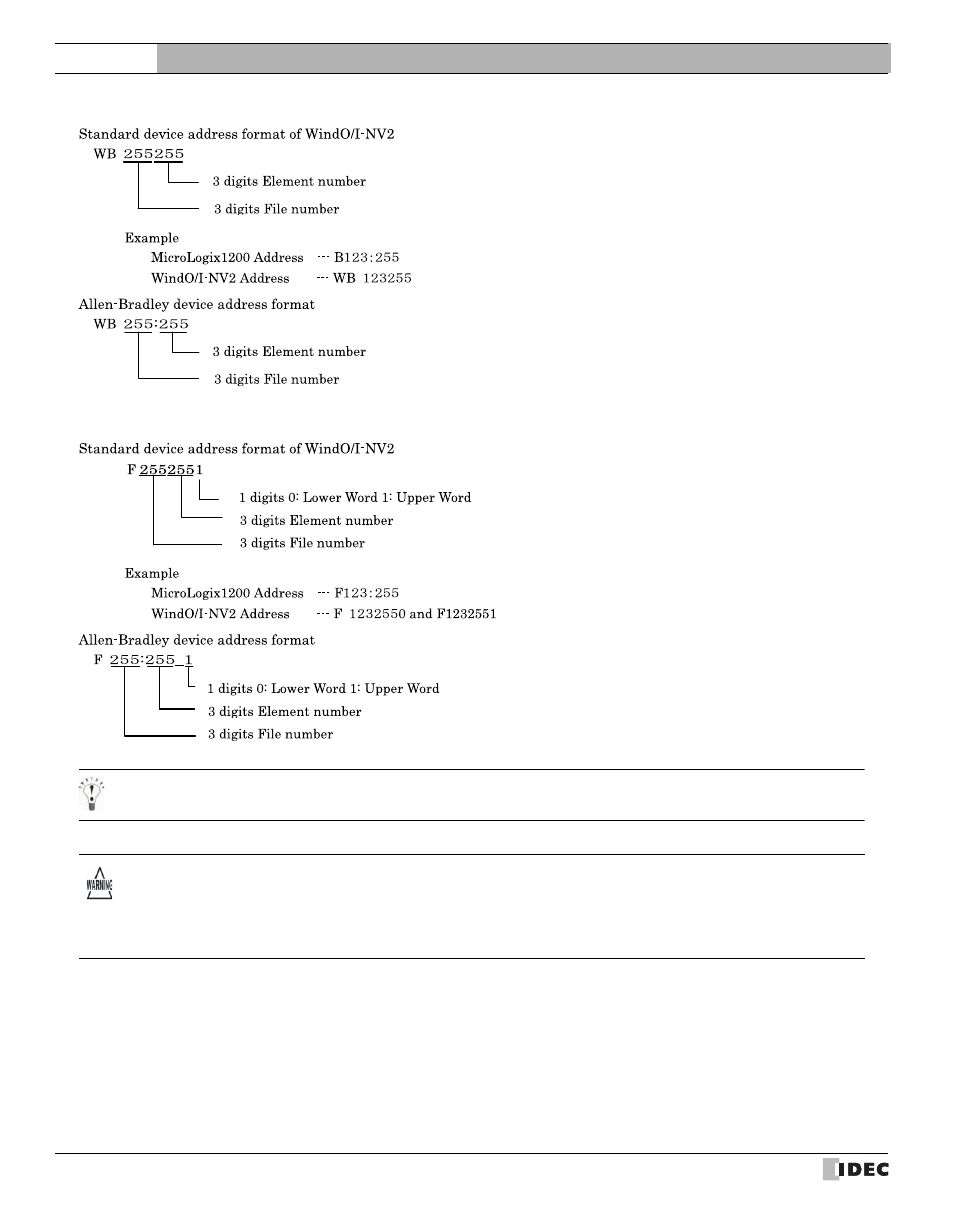

*2. Address selection rule is as follows.
*3. Address selection rule is as follows.
WindO/I-NV2 uses 32 bit device as the divided 2 word device.
Therefore, the last one digit shows that the device is upper word or lower word.
- Floating Point (F) and Long Word (L) are 32-bit devices. When you write to these devices, please be sure to write a high
word and low word simultaneously. If you write only high word or only low word, 0 will be written into the other word.
- A communication error will occur if you specify a file or element that is not allocated to the MicroLogis1200, SLC 500
data table map.
