Chapter 4
562
External Device Setup Manual
3 Wiring

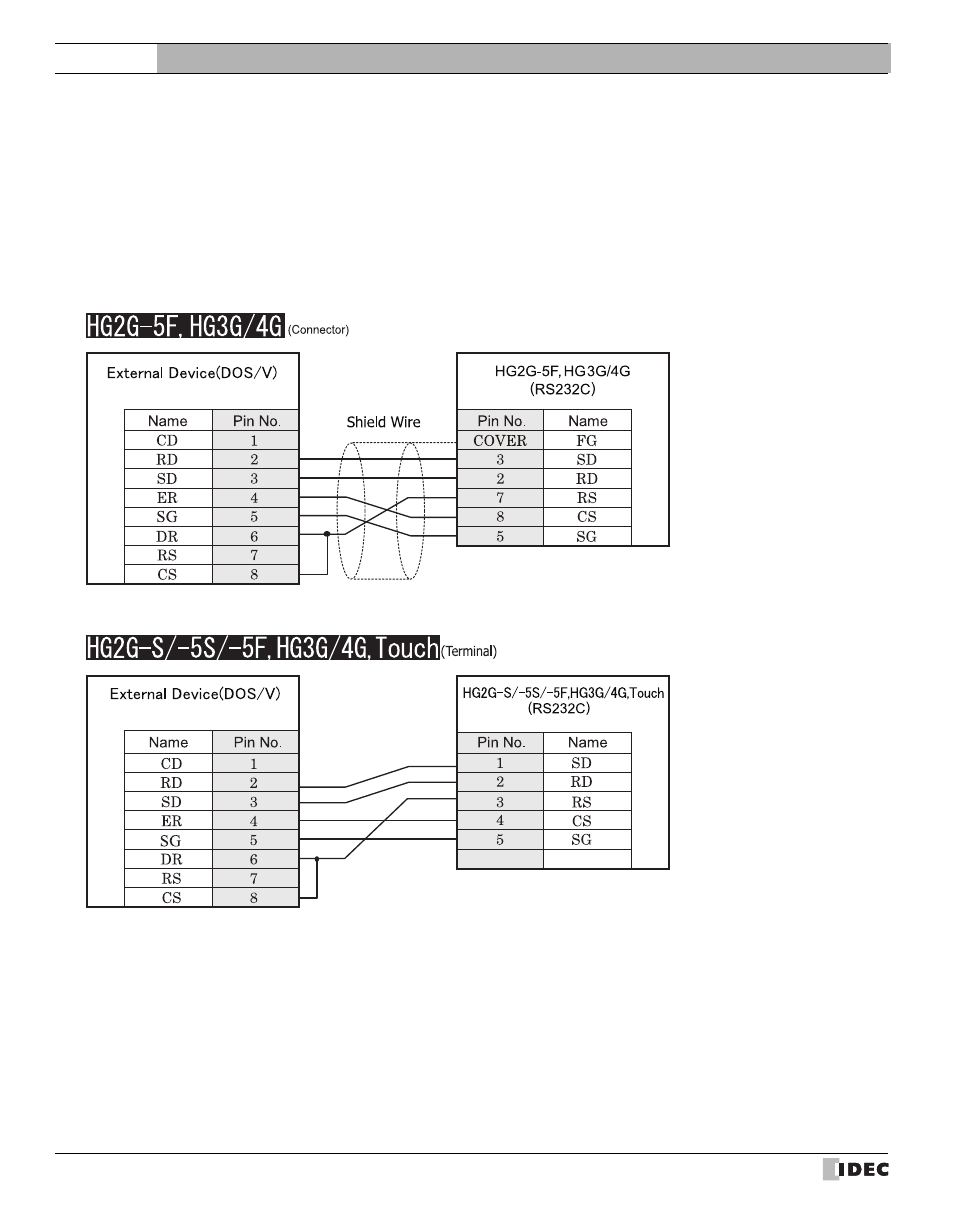

The following is an example of wiring for use with DM Link communication.
3.1 RS232C
3.1.1 With Hardware
External Device: DOS/V Personal Computer System.
D-sub, 9P connector D-sub, 9P connector plug type
D-sub, 9P connector Terminal
