Refer to p85) – IDEC High Performance Series User Manual
Page 103

85
2 Mitsubishi
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Con
nection
to a PLC
External Device Setup Manual
2.3.7

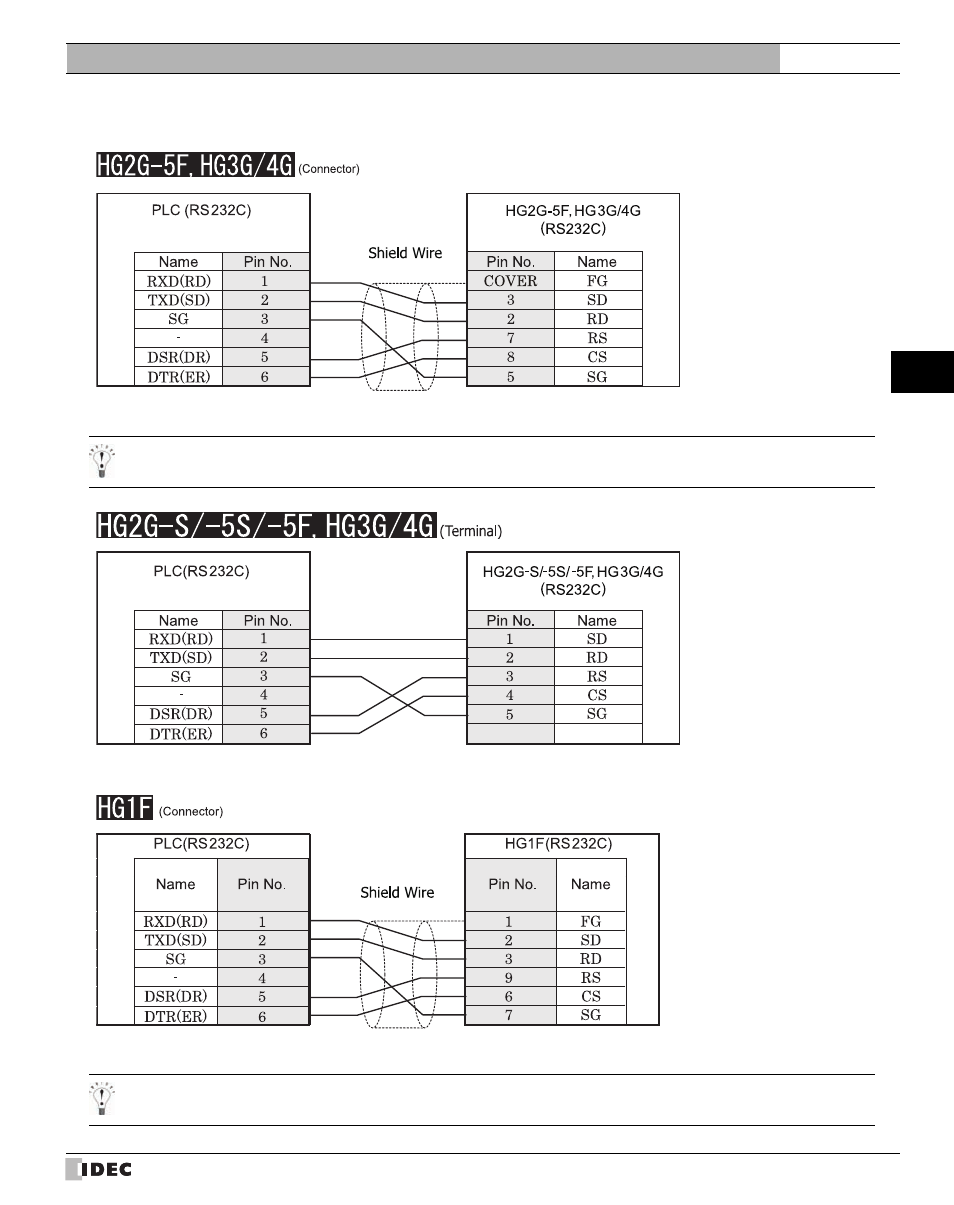

Connection Diagram 7: MELSEC-Q (CPU unit programming port) to MICRO/I
In case of HG2G-5F, HG3G/4G a connection cable is available. (part number: HG9Z-XC315).
In case of HG1F a connection cable is available. (part number: HG9Z-XC265).
Mini Din 6P socket connector (unit side)
D-sub, 9P connector plug type
Mini Din 6P socket connector (unit side)
Terminal
Mini Din 6P socket connector (unit side)
D-sub, 9P connector socket type
