IDEC High Performance Series - Manual (Page 438)

Chapter 2
420
External Device Setup Manual
There is no pin number corresponding to TERM on the HG1F. When inserting a termination resistor, use a communication
switch. For the setting of the switch, refer to Chapter 1 "3 Important Points Regarding Wiring" on page 19.

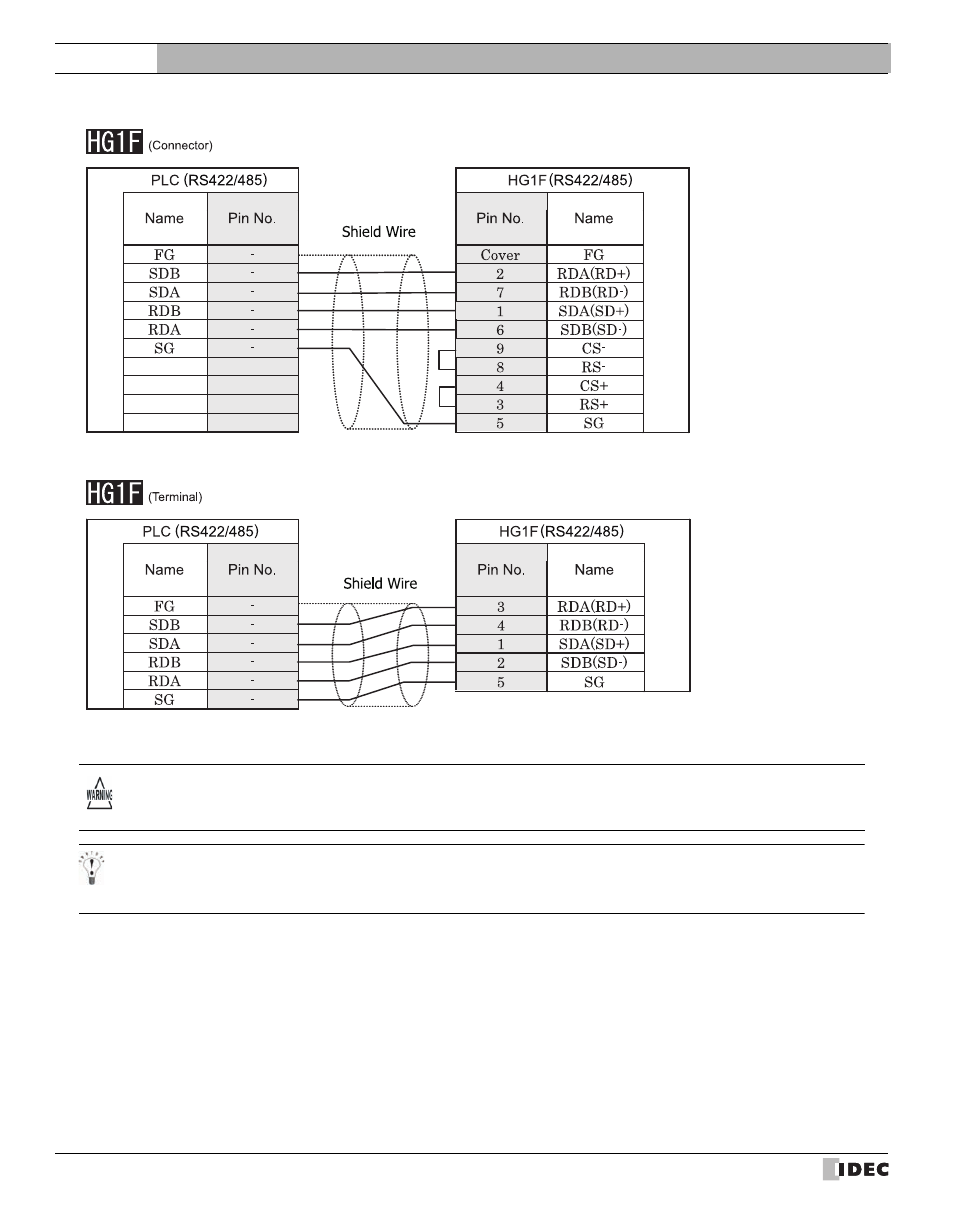

Screw terminal block D-sub, 9P connector socket type
Screw terminal block Terminal
- In MICRO/I and PLC, the name of A pole and B pole is reverse.
- When you use the Terminal Block type of HG1F, make sure to configure the Hardware Flow control to NONE.
