External Device Setup Manual

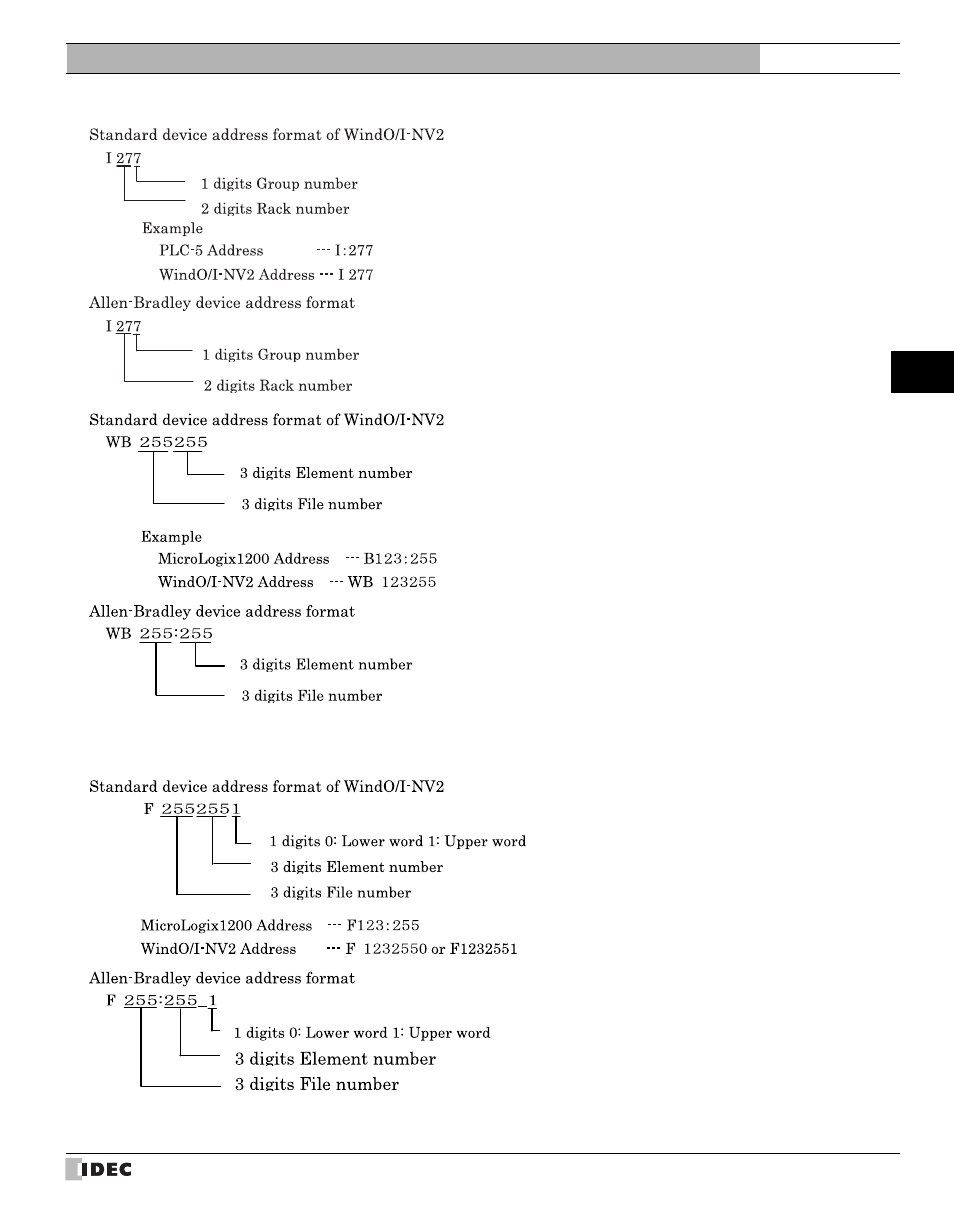

*2. Address selection rule is as follows.
*3. Address selection rule is as follows.
*4. Address selection rule is as follows.
WindO/I-NV2 uses 32 bit device as the divided 2 word device.
Therefore, the last one digit shows that the device is upper word or lower word
