2.2.3
MELSEC-A Series (connected to the CPU Unit Programming Port)
RS422
MICRO/I

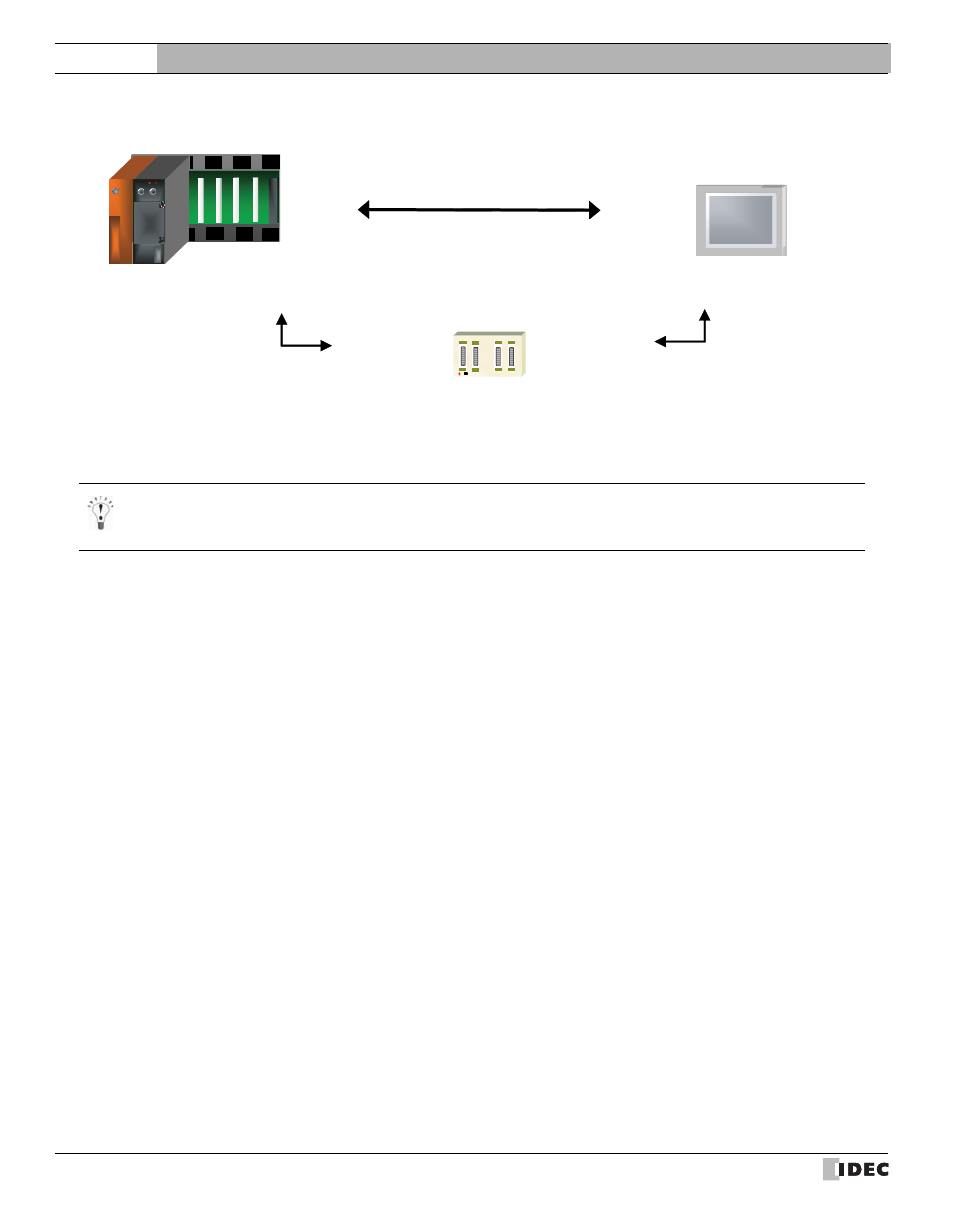

Connection Diagram 4
Mitsubishi 2-point adapter
X-2PIF
A0J2H
A1SJH, AISH
A2N, A2SH,
A2C
A2A, A3A,
A2US
Mitsubishi Cable
RS422
A2USH, A2U
FX-422CAB
(Connection Diagram 4)
- In case of HG2F/3F/4F a connection cable is available for Connection Diagram 4 (part number: HG9Z-3C165).
- In case of HG1F a connection cable is available for Connection Diagram 4 (part number: HG9Z-XC255).
