Chapter 2

318

External Device Setup Manual

10.3.2

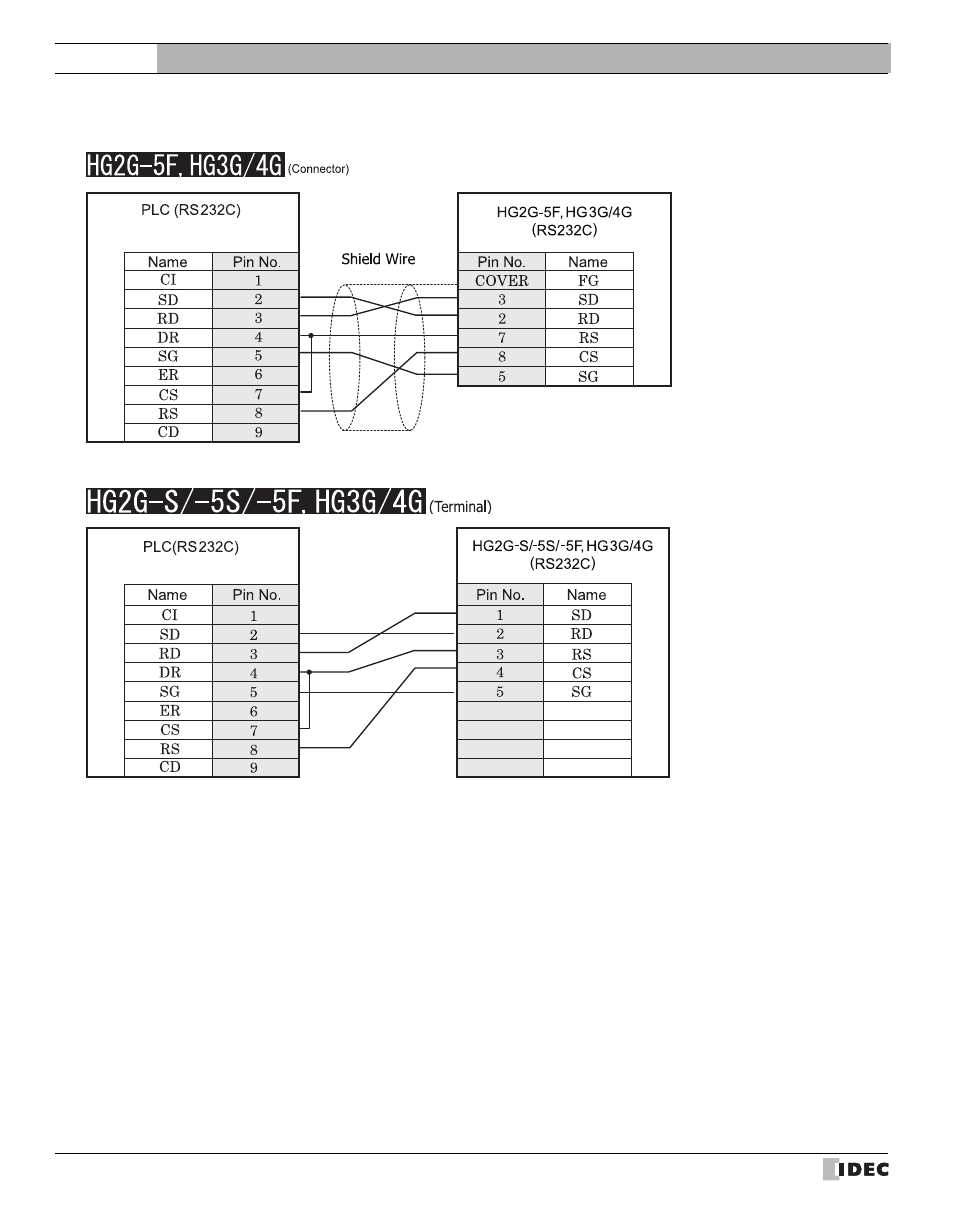

Connection Diagram 2: TCmini (RS232C) - MICRO/I

D-sub, 9P connector plug type

D-sub, 9P connector plug type

D-sub, 9P connector plug type

Terminal
