IDEC High Performance Series - Manual (Page 372)

Chapter 2
354
External Device Setup Manual

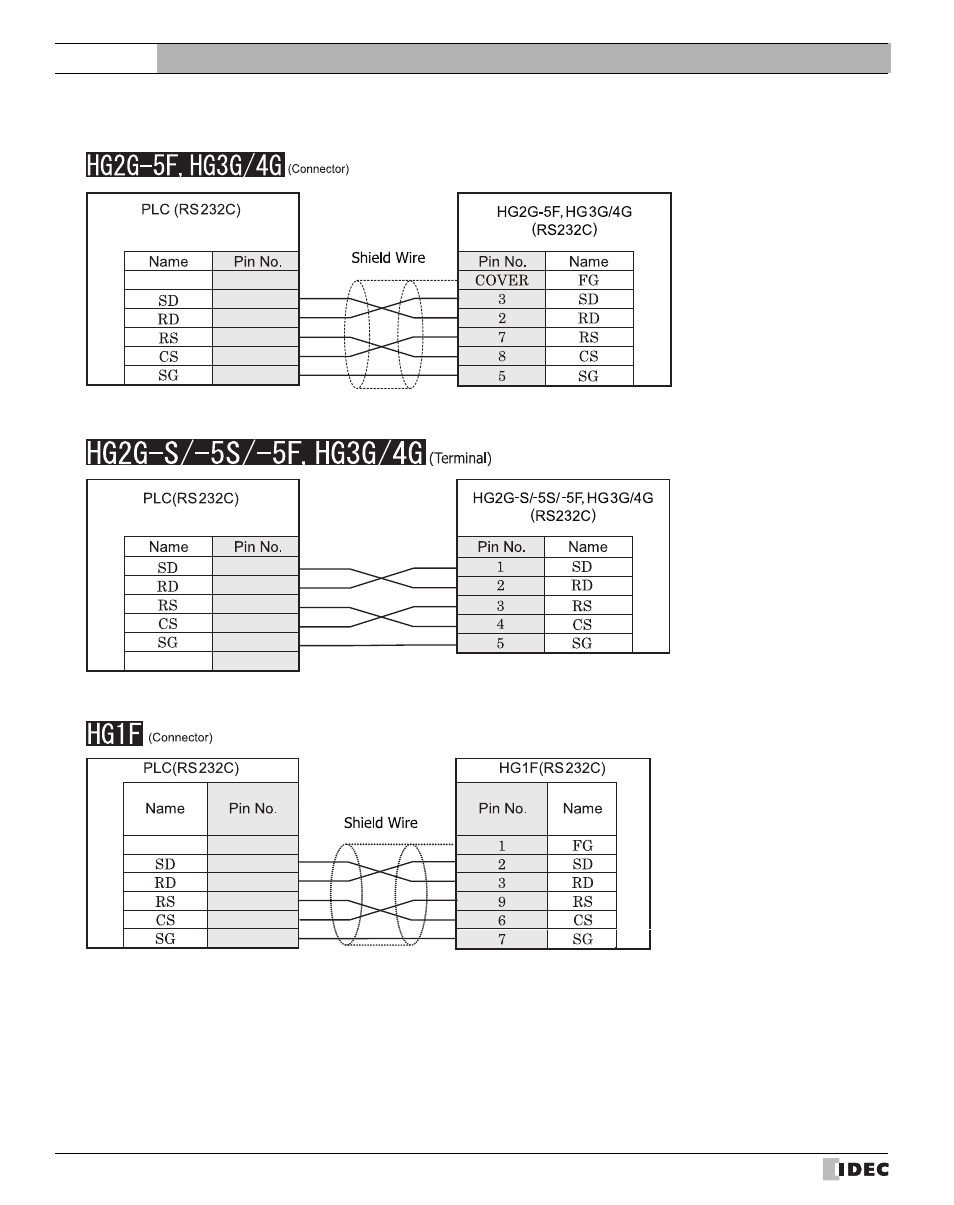

12.3.5 Connection Diagram 5: FP
- Communication cassette (AFPG801) - MICRO/I
Screw terminal block D-sub, 9P connector plug type
Screw terminal block Terminal
Screw terminal block D-sub, 9P connector socket type
