Con
nection
to a PLC
External Device Setup Manual
1.3.3

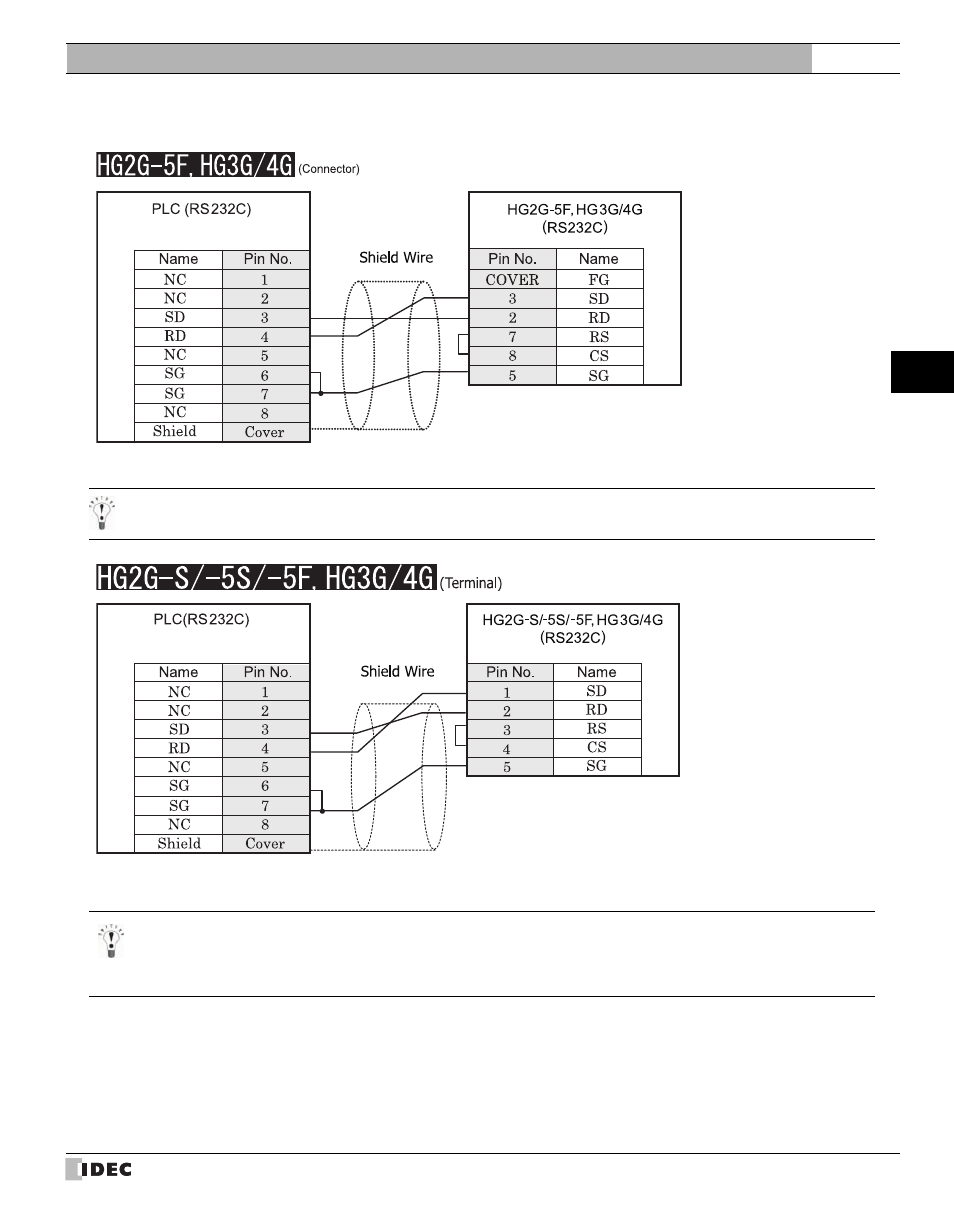

Connection Diagram 3: MICROSmart/MICROSmart Pentra (RS232C Port 1) to MICRO/I
In case of HG2G-5F, HG3G/4G a connection cable is available. (part number: HG9Z-XC295).
Mini DIN 8P
D-sub, 9P connector plug type
Mini Din 8P
Terminal
- In case of HG2G-S/-5S/-5F, HG3G/4G a connection cable is available. (part number: HG9Z-XC275).
- Refer to Chapter 7 "1.19 PLC connection cable: HG9Z-XC275" on page 654 about the connection diagram of HG9Z-
XC275.
