IDEC High Performance Series - Manual (Page 262)

Chapter 2
244
External Device Setup Manual

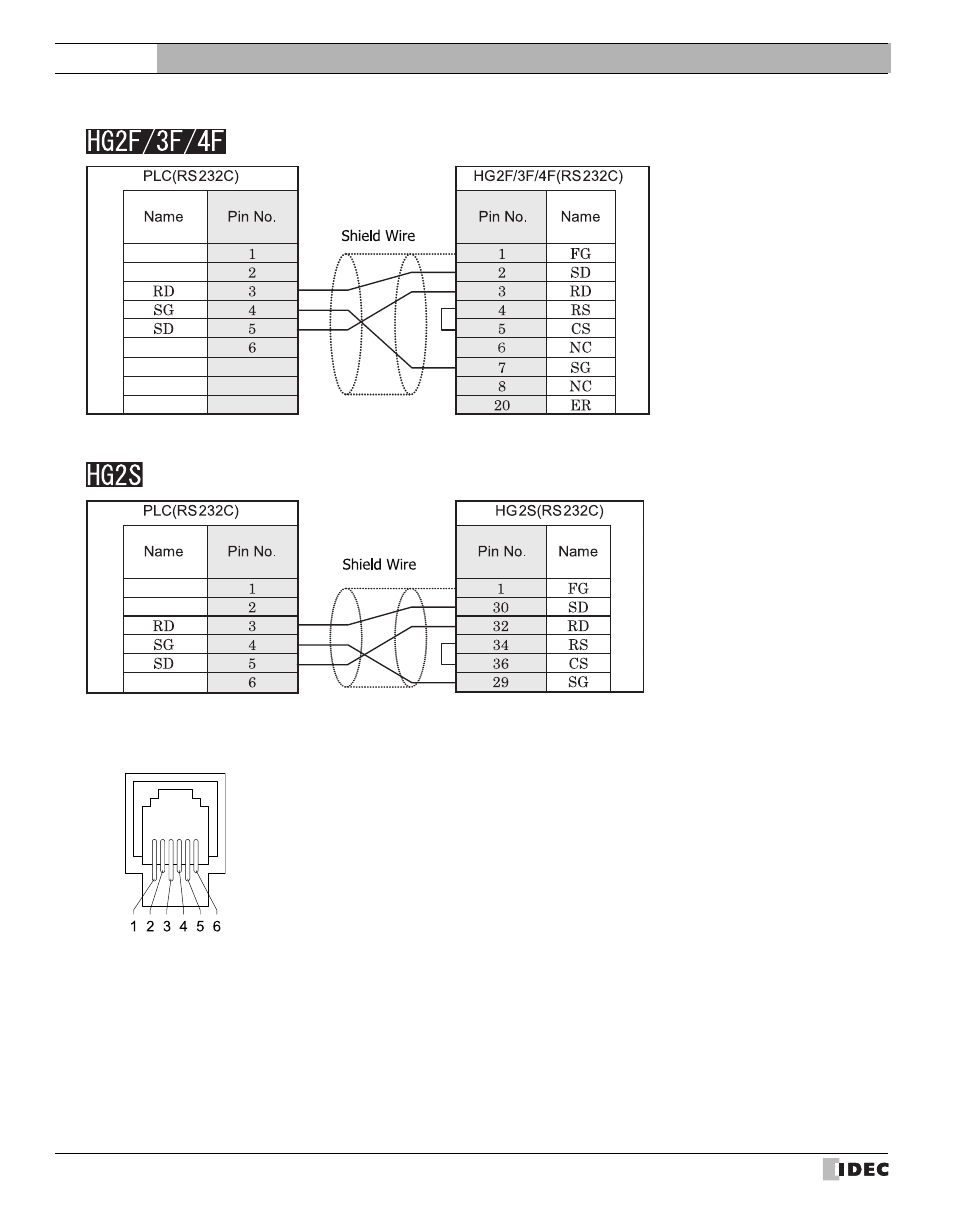

Connector Pin Layout for PLC side Modular jack
Modular connector D-sub, 25P connector socket type
Modular connector D-sub, 37P connector plug type
