External Device Setup Manual

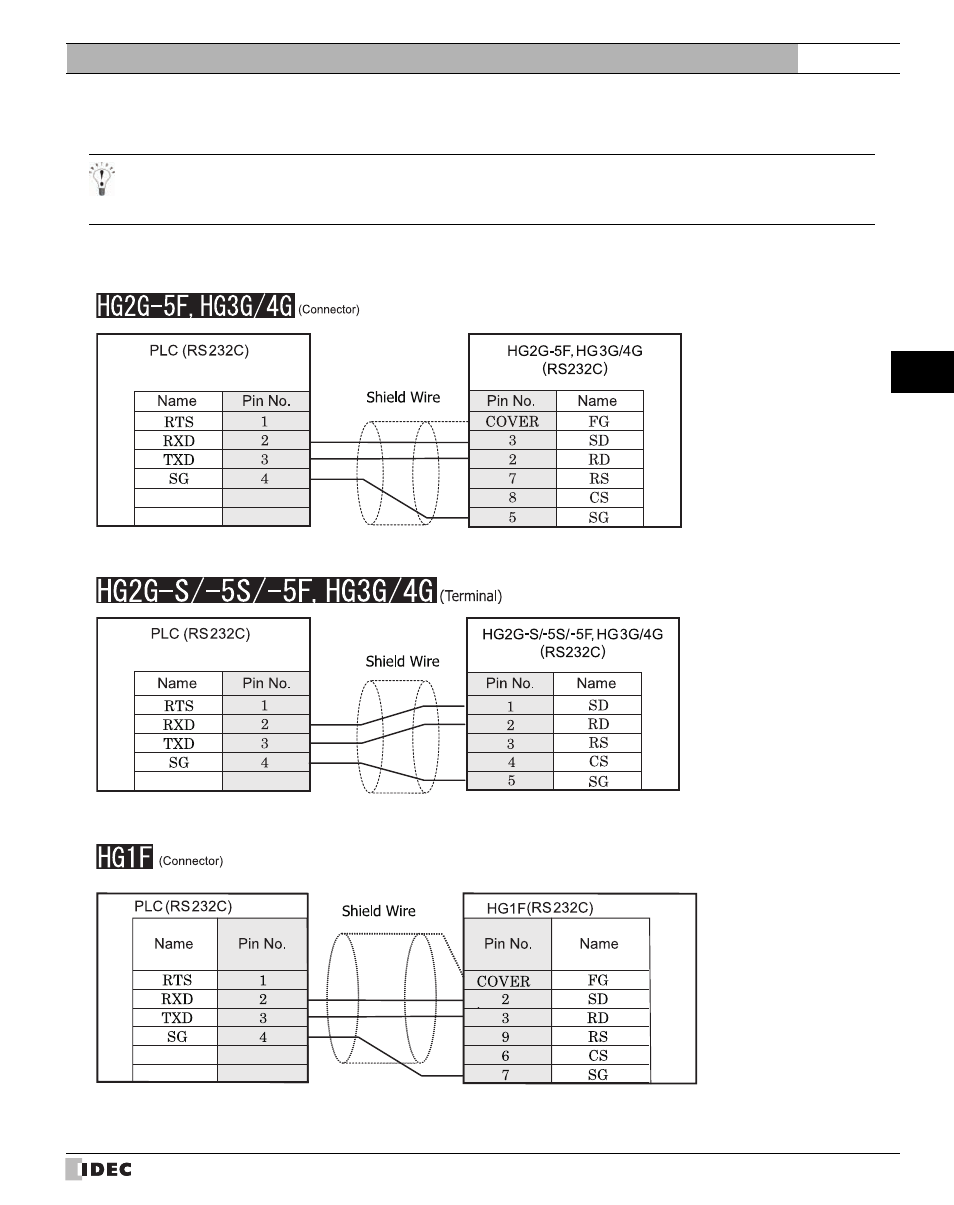

21.3 Connection Diagram
The connector types given in the Connection Diagrams are for the unit and not the cable. For details regarding wiring, refer
to Chapter 1 "3 Important Points Regarding Wiring" on page 19.
21.3.1
Connection Diagram 1: VB0, VB1, VB2, VH (Programming Tool Communication Port)
A type connector
D-sub, 9P connector plug type
A type connector
Terminal
A type connector
D-sub, 9P connector socket type
This manual is related to the following products:
