8n. Install the intake tube between the bracket
and the spigot on the front of the CVT
cover. Secure it with the hose clamp.
See Figure 2b.38.
8o. Install the passenger seat and its new
bracket to the new seat plate using a pair
of 1/2” wrenches. See Figure 2b.39.
8p. Reinstall the engine cover and parcel bin.
8q. Lower the work-box and seats.
8r. Test-drive the vehicle in a safe place to
confirm that it operates properly before
returning it to service.

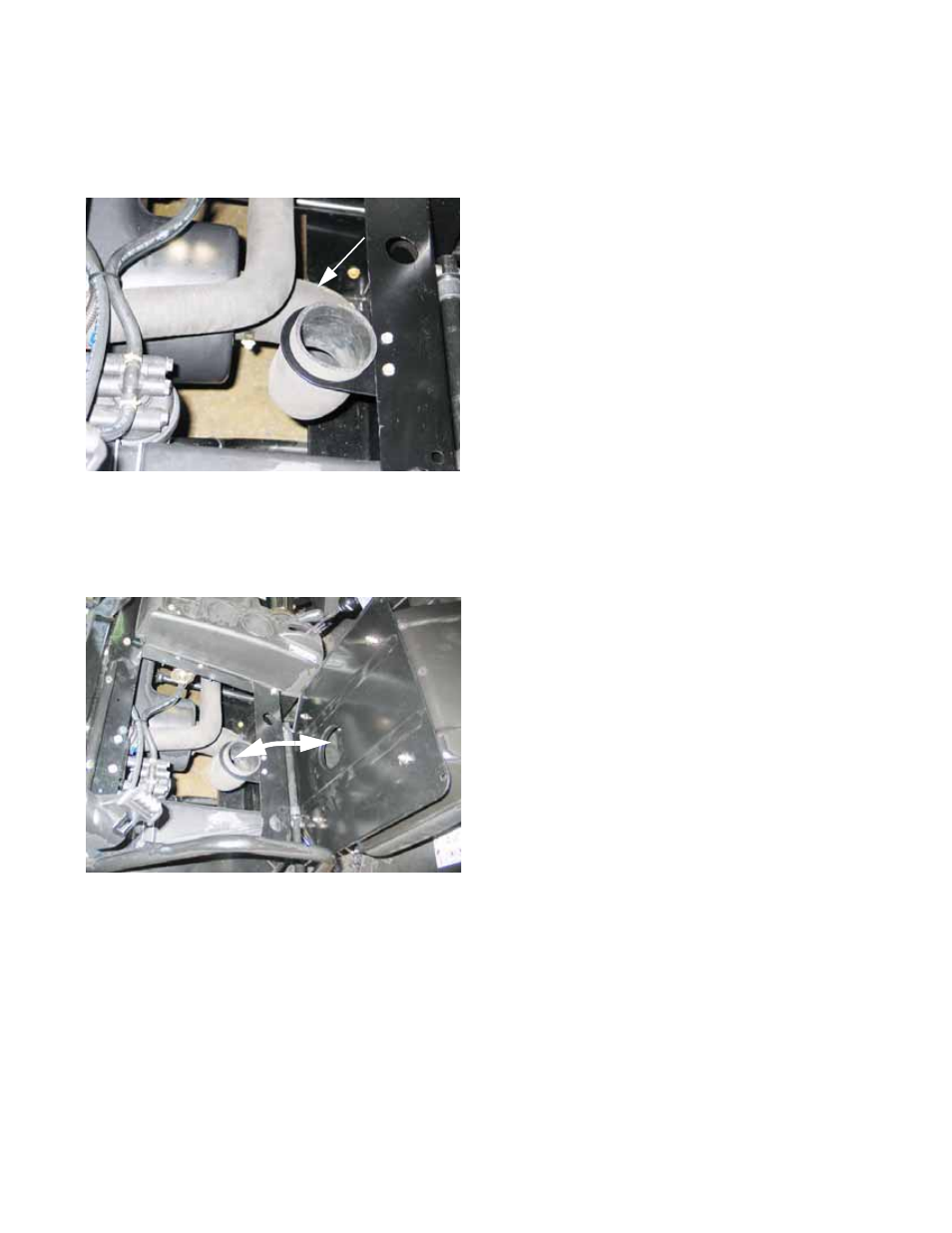

Figure 2b.38
Intake tube
Figure 2b.39
