Caterpillar Enclosed CVT Addendum
86
8f. Position the air filter and intake tube in the
vehicle. See Figure 2b.34.
• Remove the seals from the tube and the engine
air intake.
• Connect the tube to the engine intake manifold.
8g. Mount the air filter to the console-cup
holder support using the 5/16-18 nuts,
bolts, and spacer previously removed.
See Figure 2b.35.
8h. Reinstall the grab handle with the new
seat plate. See Figure 2b.36.
8i. After the seat plate and grab handle are
installed, mount the fuel filter to the frame
using the 5/16-18 nuts and bolts previ-
ously removed.
8j. Use the opening in the new seat plate to
locate the tube support bracket. The
openings in the seat plate and the bracket
should be concentric.
8k. Mark the points to drill mounting holes for
the tube support bracket.
8l. Center-punch and drill mounting holes in
the seat box using a 9/32” (7mm) drill bit.
8m. Mount the bracket beneath the front lip of
the seat box. Tighten the 1/4-14 screws
using a T-27 driver. See Figure 2b.37.

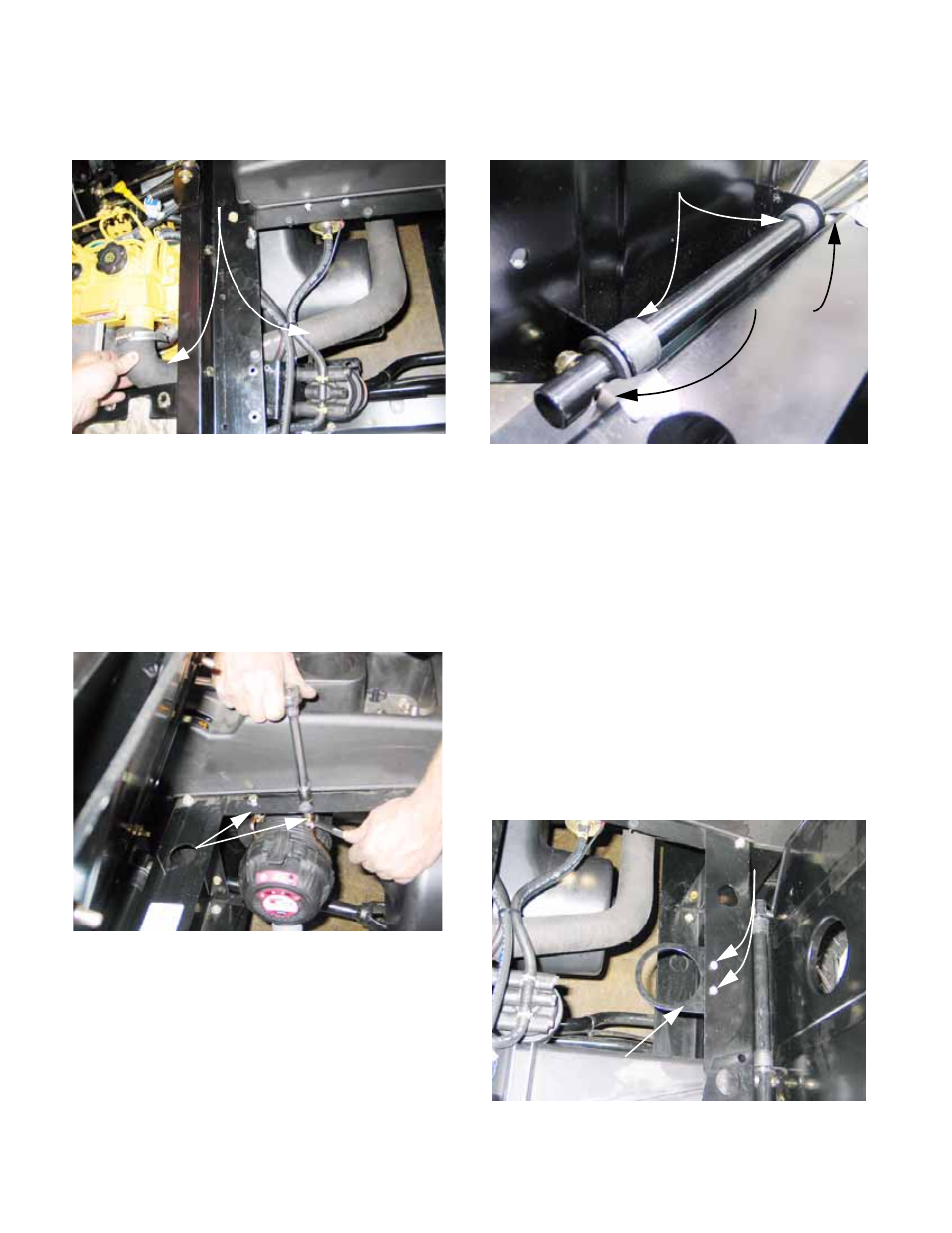

Figure 2b.34
Air filter
intake tube
Figure 2b.35
Spacers
Figure 2b.36
Flange bushings
Spacers
(secured with
tape to ease
mounting)
Figure 2b.37
9/32” holes
Tube support bracket
