Chapter 2- Drive System: CVT and Transfer Case
40
5d. Check the plastic split-busings for wear.
They are inexpensive, and replacing them
if there is any significant wear will
improve shift action. See Figure 2.84.
6. Remove the safety switches and detents:
6a. Unscrew and remove the two neutral
safety switches using a 7/8” wrench.
See Figure 2.85.
6b. Remove the detent plate using a 3/8”
wrench. See Figure 2.86.
6c. Remove the detent springs.
6d. Clear any sealant flash from the detent
bores, and remove the detent balls using
a magnet, if necessary.
7. Separate the case halves:
7a. Remove the two sets of nuts and bolts that
hold the case halves together through un-
tapped holes. Use a pair of 1/2”
wrenches.
7b. Support the transfer case by the housing,
with the screws that secure the case
halves together facing up.
See Figure 2.87.

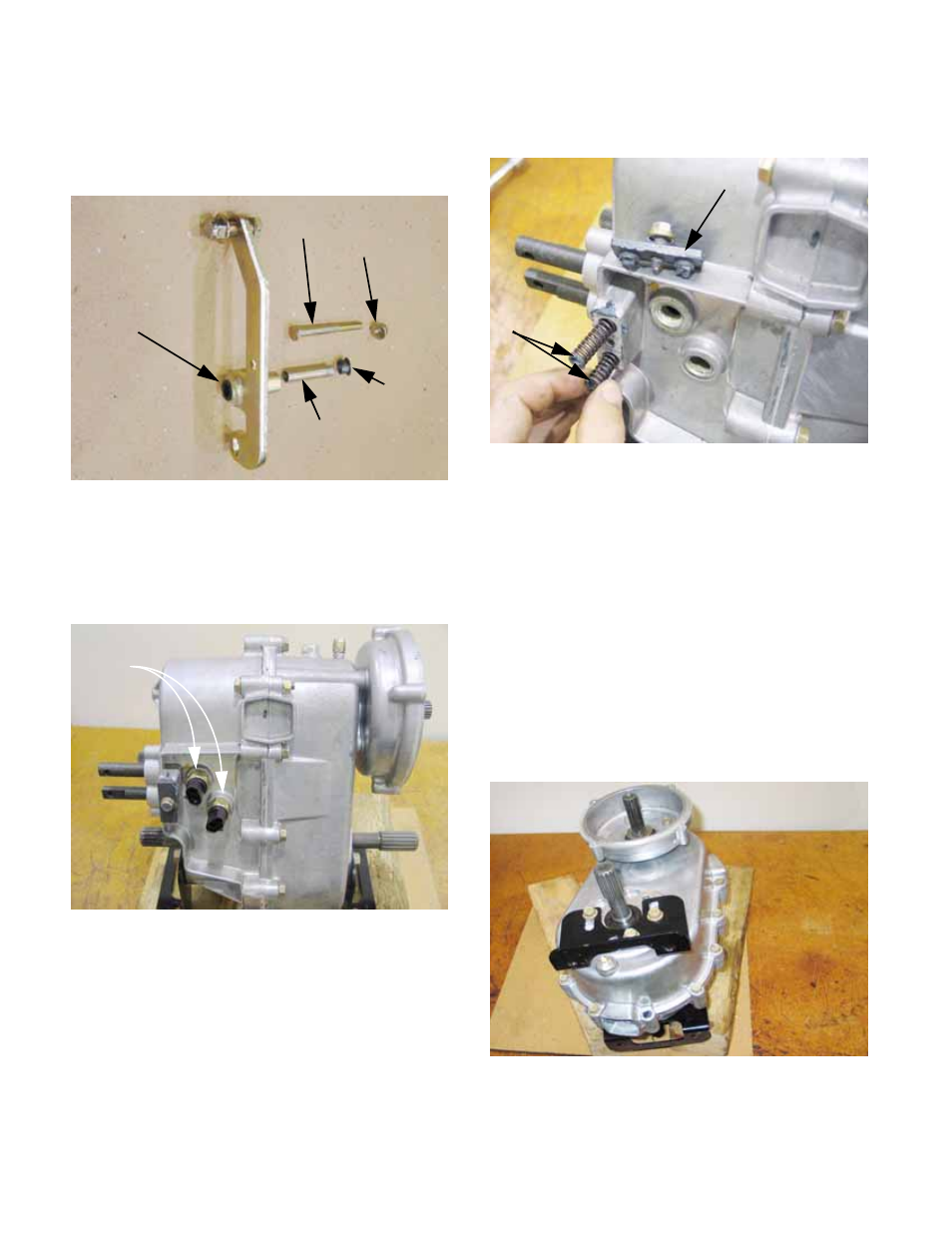

Figure 2.84
Bolt
Nut
spacer tube
plastic
split bushing
Plastic split
bushing
Figure 2.85
Neutral
safety
switches
Figure 2.86
Detent plate
Detent
springs
Figure 2.87
