Chapter 2- Drive System: CVT and Transfer Case
36
DRIVE SYSTEM BENCH SERVICE:
TRANSFER CASE DISASSEMBLY
1. Preliminary steps:
1a. Clean-up and visually examine the transfer
case for wear and damage that may make
it unfeasible to repair.
1b. Unless there is a specific reason to
remove the mounting brackets, they are
best left in place.
1c. If the gear lube was not previously
drained, remove the drain plug using a
13mm wrench and allow the fluid to drain
into a clean pan. See Figure 2.68.
1d. Remove the fill plug from the side of the
transfer case using a 5/8” wrench. This
will let air enter the case faster, speeding
the draining process. See Figure 2.69.
1e. Examine the contents of the drain pan and
the residue that is stuck to the magnetic
tip of the drain plug. See Figure 2.70.
1f. If not previously removed, take the washer
and spacer off of the input shaft.
See Figure 2.71.

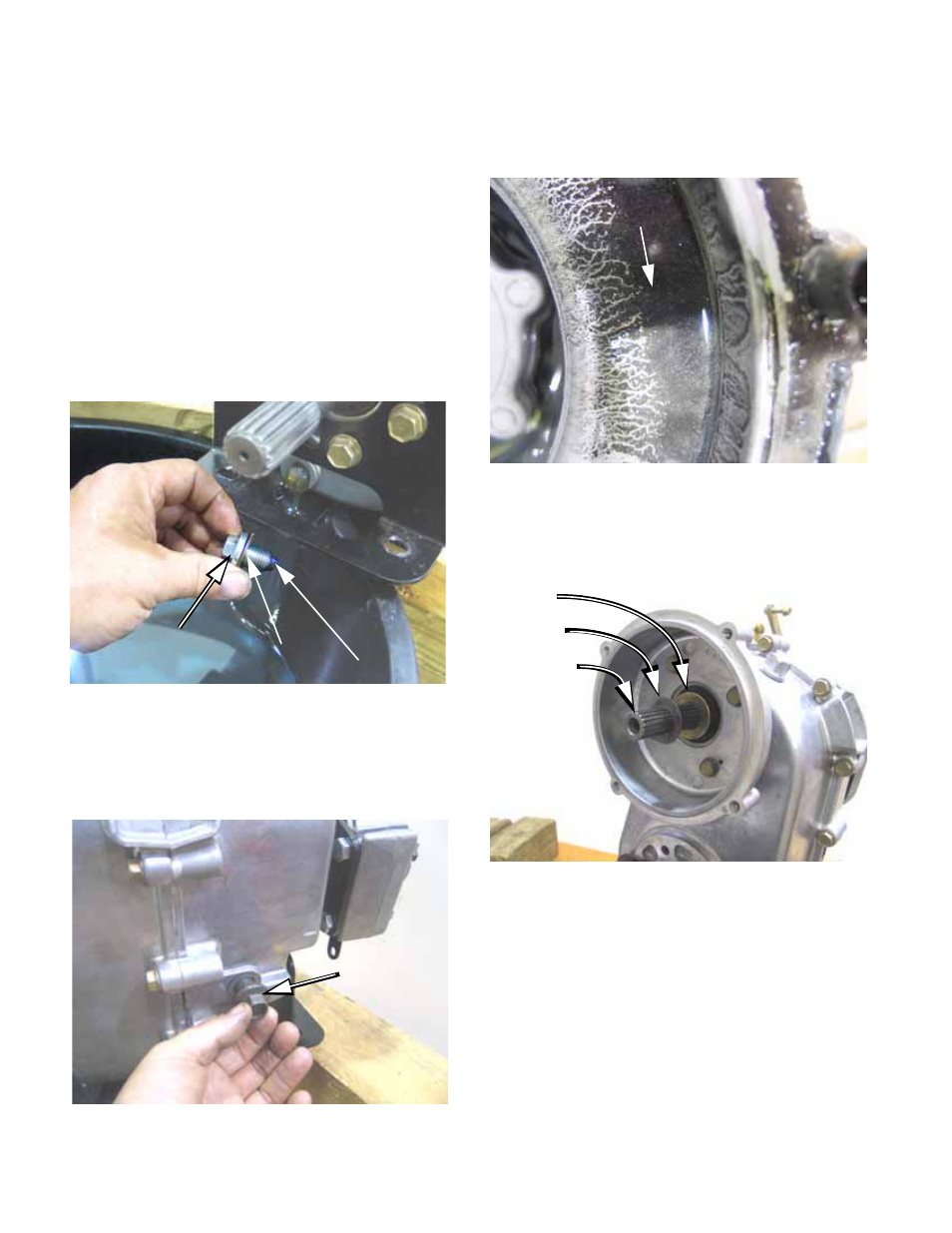

Figure 2.68
Drain plug
Gasket
magnetic tip
Figure 2.69
Level plug
(O-ring seal)
Figure 2.70
Residue inside
transfer case
Figure 2.71
Spacer
Washer
Input shaft
