Chapter 8 - Caterpillar Engine and Related Systems
256
5. The fuel pump feeds the injector pump mounted
on the side of the engine. See Figure 8.96.
• Some fuel that bleeds out of the injectors is
returned from the bleed rail to the injector pump
feed line.
• Some fuel that bleeds out of the injectors is
returned to the fuel tank.
• The fuel lubricates the injectors, so it is normal
for some to bleed-off.
6. A fuel shut-off solenoid on the fuel injector pump
stops the fuel flow when the key switch is turned-
off. It makes an audible click when energized or
de-energized. See Figure 8.97.
7. To reach the fuel tank for most service require-
ments, remove the rear fender and splash
shield.
7a. Tilt-up the load bed
7b. Remove the 3 screws that hold the fender
to the splash shield using a 5/16” wrench.
See Figure 8.98.
7c. Remove the remaining fasteners that hold
the fender to the vehicle:
See Figure 8.99.
• Remove the two screws that hold the front edge
of the fender to the upright that the rear tube of
the OPS mounts to using a 5/16” wrench.
• Remove the single screw that holds the top of
the fender to the frame using a 1/2” wrench.
• Remove the gas cap.

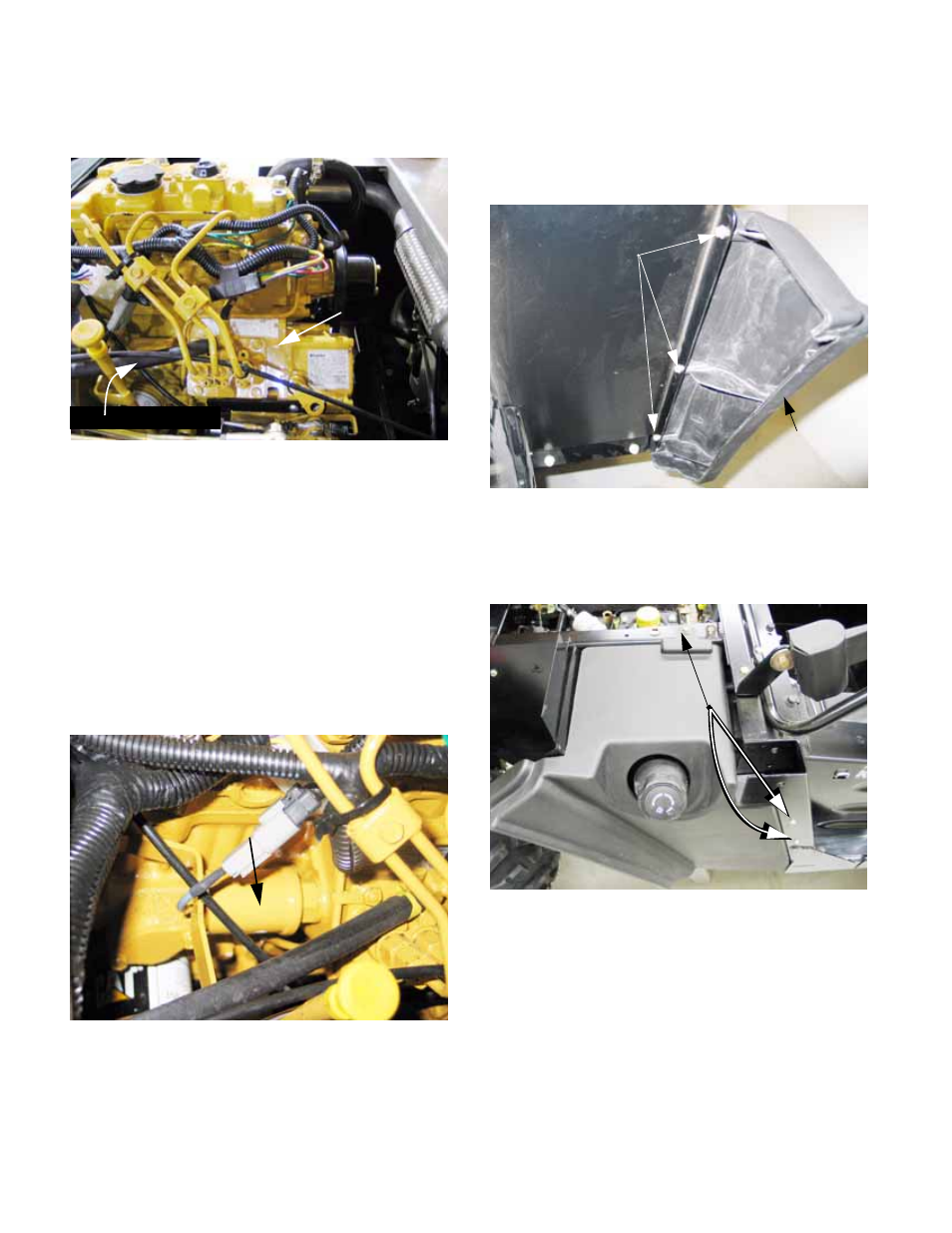

Figure 8.96
Injector pump
Line from fuel pump
Figure 8.97
Fuel shut-off
solenoid
Figure 8.98
Mounting screws
Right rear
fender
Figure 8.99
screws
Fender mounting
