Kohler Enclosed CVT Addendum
66

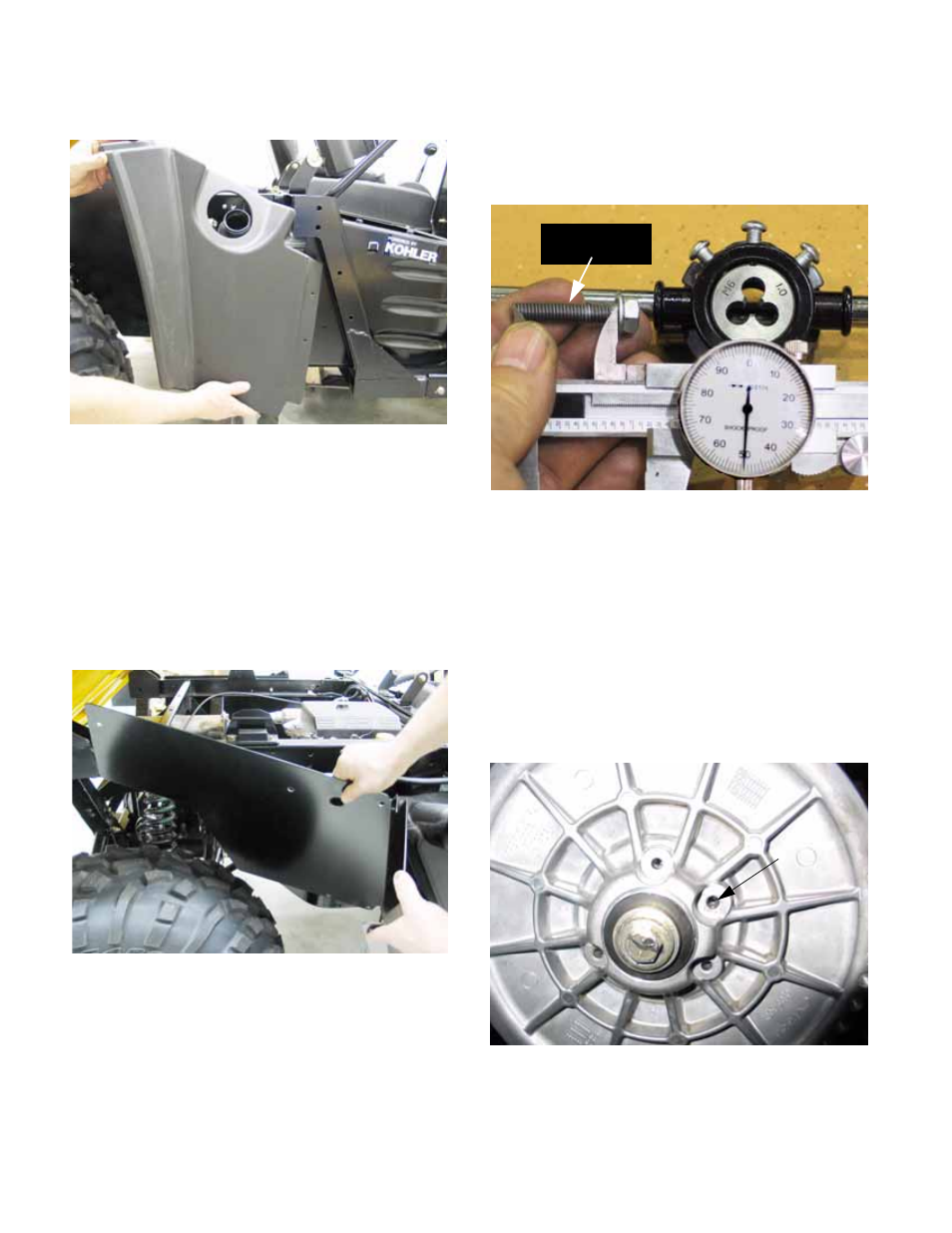

2l. Remove the fender: See Figure 2a.7.
• Pull the fender out slightly at the top to provide
freedom of movement around the fuel filler neck.
• Lift the fender up at the back to pull the front
edge clear of the channel that it locks into.
• Pull the fender clear of the vehicle.
• Replace the gas cap.
2m. Remove the right rear splash shield:
See Figure 2a.8.
• Remove the 6 screws connecting the splash
shield to the frame using a 1/2” wrench.
• Support the splash shield, and remove the final
screw using a 5/16” wrench.
• Lift the splash shield off of the vehicle.
3. BELT REMOVAL
3a. To remove the belt, a 6mm/1.0 screw with
a minimum thread length of 1.15" (2.9cm)
will be required. See Figure 2a.9.
NOTE: A 6mm screw with a thread pitch of 1.0
may be purchased locally. The minimum thread
length needed is longer than the threads of a
standard screw of this size. It will be necessary
to cut threads further up the shank of the screw
using a thread-cutting die, or neck-down the
shank of the bolt on a grinding wheel.
3b. There are 4 holes in the face of the driven
element. The middle hole of the closest
set of three is threaded. The other three
are not threaded. See Figure 2a.10.
Figure 2a.7
Figure 2a.8
Figure 2a.9
1.15” (2.9cm)
thread length
Figure 2a.10
Tapped hole
