Caterpillar Enclosed CVT Addendum
77
3.
Unbolt the fuel filter bracket from the vehicle
using a 1/2” wrench. See Figure 2b.3.
3a. With the fuel filter and bracket out of the
way, the grab bar and seat plate can be
removed using a pair of 1/2” wrenches.
See Figure 2b.4.

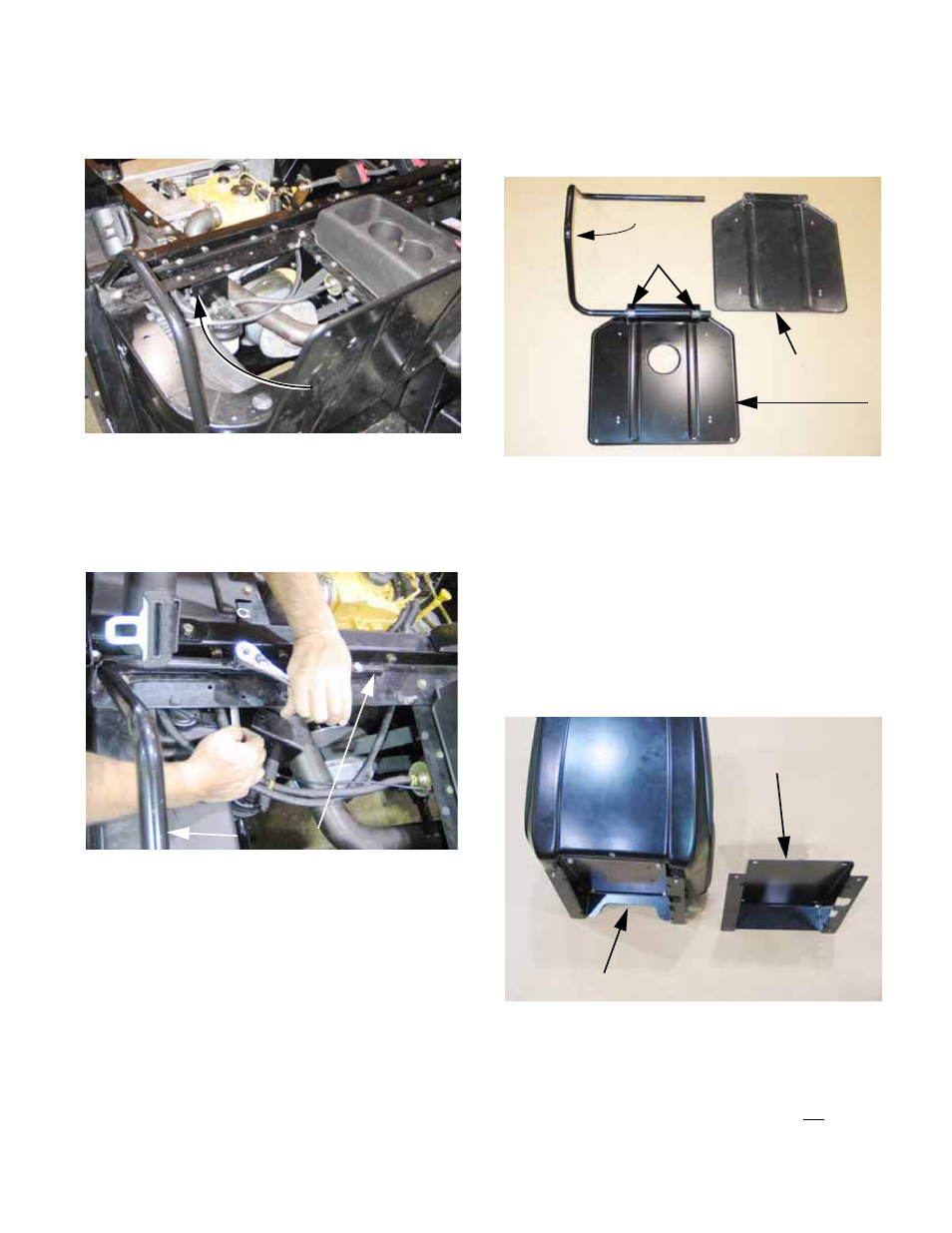

Figure 2b.3
Fuel filter bracket
Figure 2b.4
Grab handle
3b. Remove the original seat plate from the
grab handle, and replace it with the seat
plate from the kit. See Figure 2b.5.
NOTE: The flange bearings that the seat pivots
on fit through the holes in the seat plate with the
shoulders to the outside. The bolts holding the
grab handle to the vehicle trap the bearings in
position.
3c. Replace the original seat bracket with the
seat bracket contained in the kit. Position
the rear set of seat bracket mounting bolts
in the bracket before bolting the seat to
the bracket. See Figure 2b.6.
NOTE: The opening in the front of the new seat
bracket is vital. This opening allows cooling air
to enter the CVT enclosure. If the supply of
cooling air is restricted, the CVT belt will over-
heat and fail.
Figure 2b.5
Grab bar
Flange bearings
Old seat plate
New seat plate
Figure 2b.6
Old seat bracket
New seat bracket
