Cub Cadet 4 x 4 Volunteer - Manual (Page 286)

Chapter 9 - Electrical
282
10. The Starter motor on the Kohler engine is
located on the outboard side of the engine block.
The starter solenoid is part of the starter.
See Figure 9.12.
• Refer to the KOHLER SERVICE ACCESS AND
FUEL SYSTEM chapter of this manual for spe-
cific removal instructions.
11. The Alternator / Regulator / Rectifier, Kohler
engine are located on the engine.
See Figure 9.13.
• The alternator stator is concealed by the fly-
wheel. The rotor is built into the flywheel.
• Refer to the KOHLER SERVICE ACCESS AND
FUEL SYSTEM chapter of this manual for spe-
cific removal instructions.
• The Alternator feeds A.C. power out-put to the
regulator/rectifier that is attached to the inboard
side of the cooling fan shroud. See Figure 9.14.
• Refer to the KOHLER SERVICE ACCESS AND
FUEL SYSTEM chapter of this manual for spe-
cific removal instructions.
• Refer to the MAJOR CIRCUITS section of this
chapter to test the charging system.
12. The Fuel Shut-off Solenoid for the Kohler
engine is attached to the carburetor.
• Refer to the KOHLER SERVICE ACCESS AND
FUEL SYSTEM chapter of this manual for spe-
cific removal instructions.
13. The engine harness connection for the
Kohler engine is fastened to the engine cooling
shroud, directly above the starter motor.
See Figure 9.15.

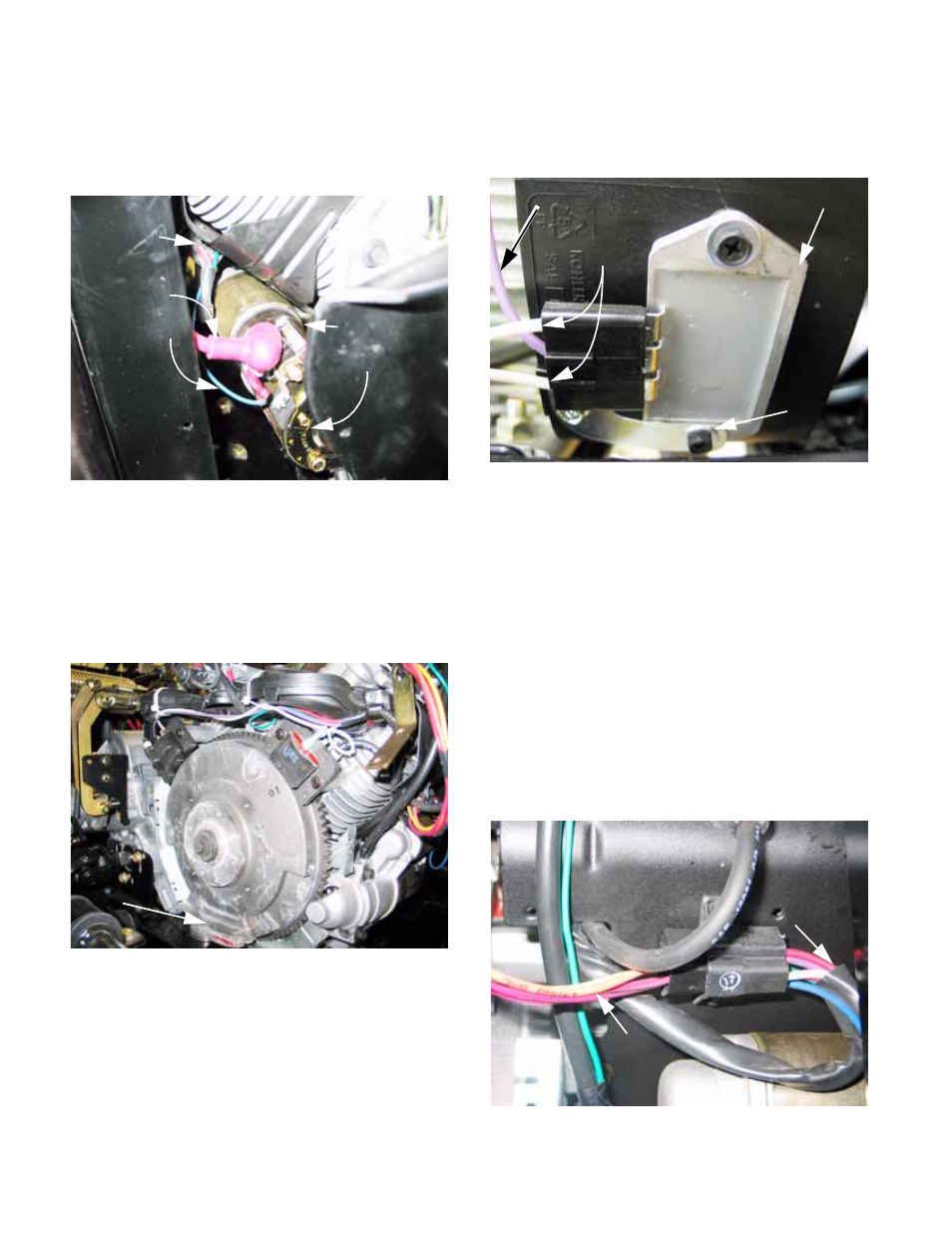

Figure 9.12
Engine harness
connector
Heavy-gauge
battery cable
Starter solenoid
trigger wire Starter solenoid
Starter motor
Figure 9.13
Flywheel
Figure 9.14
Ground
strap
Regulator /
rectifier Purple wire:
regulated 12V. output
2 white wires:
raw stator
output
Figure 9.15
Kohler
engine
harness
main
harness
