Cub Cadet 4 x 4 Volunteer - Manual (Page 37)

Chapter 2- Drive System: CVT and Transfer Case
33
14. Disconnect the parking brake cable from the
parking brake caliper by removing the hairpin
clip and clevis pin. See Figure 2.60.
15. Disconnect the transfer case safety switch har-
ness (orange and gray wires) from the main har-
ness. See Figure 2.61.
NOTE: Wire routing outboard of the flange that
surrounds the transfer case input shaft. This
keeps the wires well away from the exhaust sys-
tem.

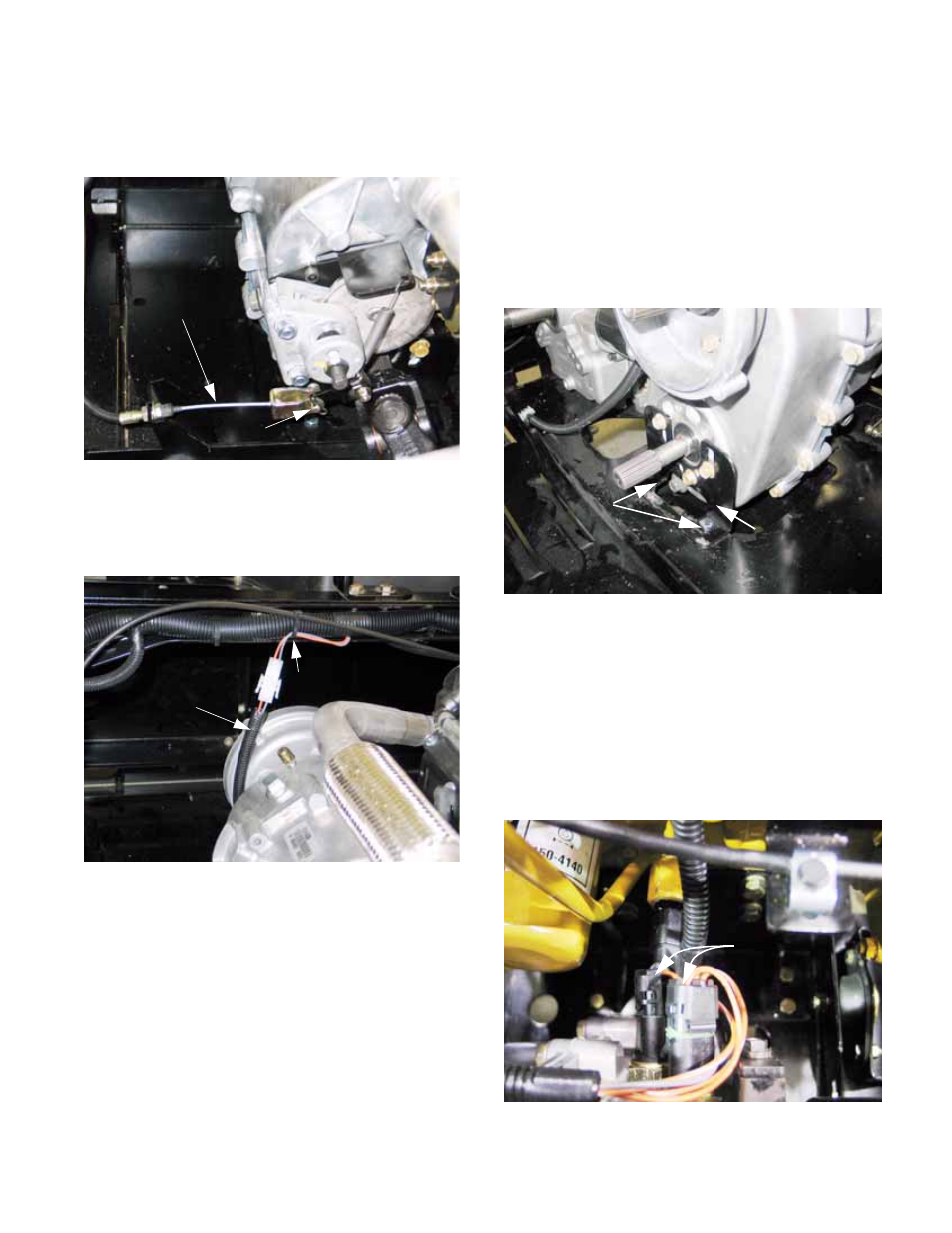

Figure 2.60
Parking brake
cable
Clevis pin
Figure 2.61
Transfer case
switch harness
Main harness
16. Lift and safely support the utility vehicle, as
described in the LIFTING AND SUPPORTING
section of this manual.
17. Drain the transfer case lube into an appropriate
container, as described in the DRIVE SYSTEM
SERVICE: LUBRICATION section of this man-
ual.
18. Unbolt the transfer case brackets from the tray
using a pair of 1/2” wrenches. See Figure 2.62.
NOTE: The nuts are easily accessible through
access slots in the bottom of the cradle.
NOTE: Do NOT unbolt the transfer case from
the brackets.
19. Slide the transfer case slightly away from the
engine, and disconnect the transfer case wiring
harness from the two neutral safety switches,
and remove the harness. See Figure 2.63.
Figure 2.62
Unbolt here
Transfer case
bracket
Figure 2.63
Safety switches
