Chapter 1: Introduction
4
Jack stands can safely be positioned beneath the up-
right frame members that are roughly even with the
centerline of the tray that supports the engine and
transfer case. See Figure 1.6.
The front of the vehicle may be safely lifted by placing a
jack directly under the mounting point where the front
differential joins the frame. See Figure 1.7.
Jack stands will safely support the front of the vehicle if
positioned beneath the frame, where the front out-rig-
ger extends to meet the base of the OPS.
See Figure 1.8.
Alternatively, the vehicle may be lifted by positioning a
jack along the outer frame channel, where the rear
out-rigger extends to meet the base of the OPS .
See Figure 1.9.
NOTE: The center of gravity for the vehicle is
beneath the seat support structure.
NOTE: The outer frame channel will support the
vehicle without damage.

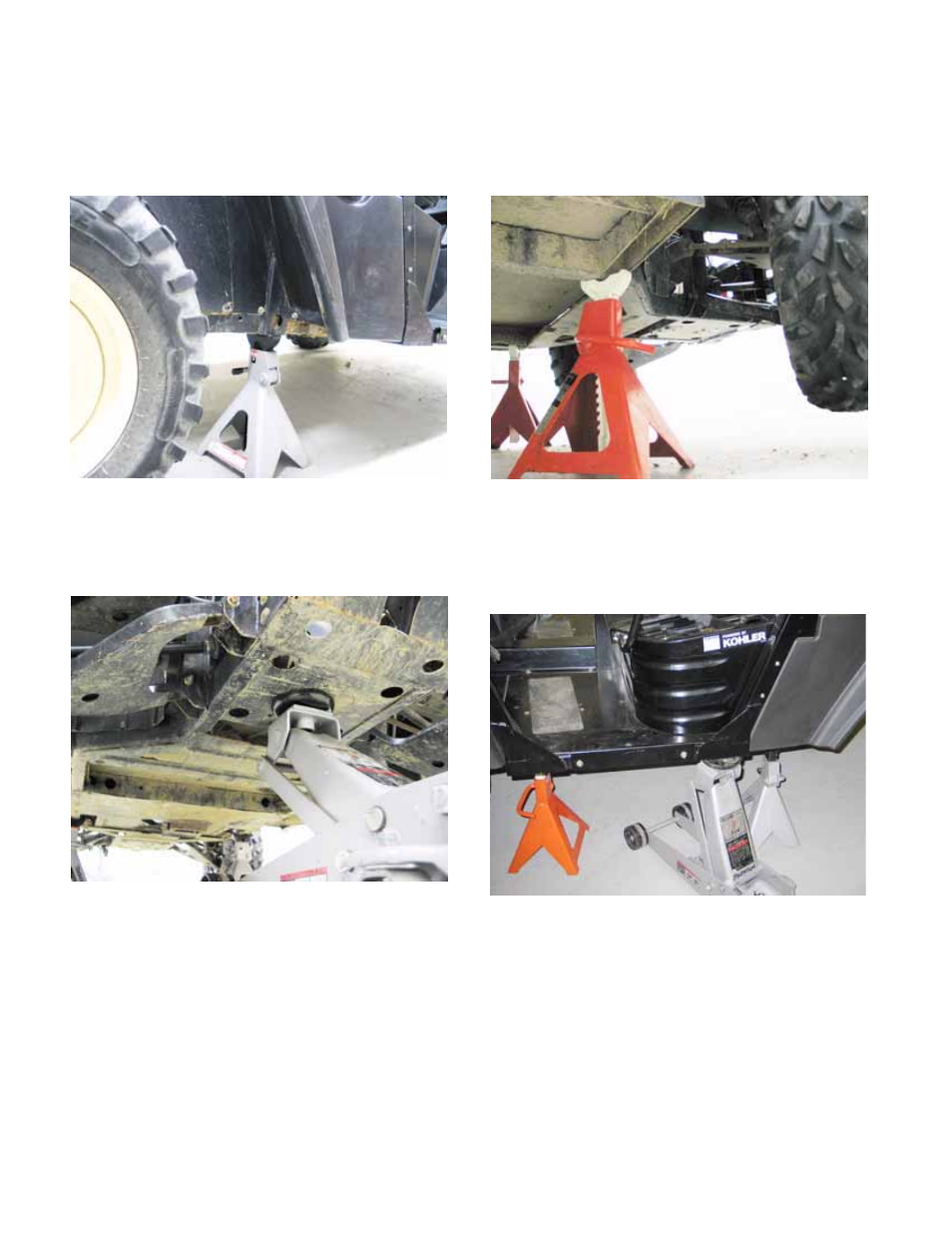

Figure 1.6
Figure 1.7
Figure 1.8
Figure 1.9
