Chapter 9 - Electrical
277
3. Additional Fuses and Relays
at Center Position One:
• Location: Open the hood to reach the fuse and
relay center. It is mounted on the firewall, imme-
diately forward of the steering column.
• There are three positions in the relay center.
The fuses and relays for front mounted optional
equipment (if present) occupy position one, the
outboard position.
Item Place Rating
Front Accessory 1 R1 R1 20/35A 14V
Front Accessory 2 R1 R2 20/35A 14V
Front Accessory 1 R2 R3 20/35A 14V
Front Accessory 2 R2 R4 20/35A 14V
Front Accessory 1 F1 30A ATM
Light Bar F2 30A ATM
Unused F3 N/A
Front Accessory 2 F4 30A ATM
Unused F5 N/A
Unused F6 N/A
4. Additional Fuses and Relays
at Relay Center Position Two:
• Location: Open the hood to reach the fuse and
relay center. It is mounted on the firewall, imme-
diately forward of the steering column.
• There are three positions in the relay center.
The fuses and relays for rear-mounted optional
equipment (if present) occupy position two, the
center position.

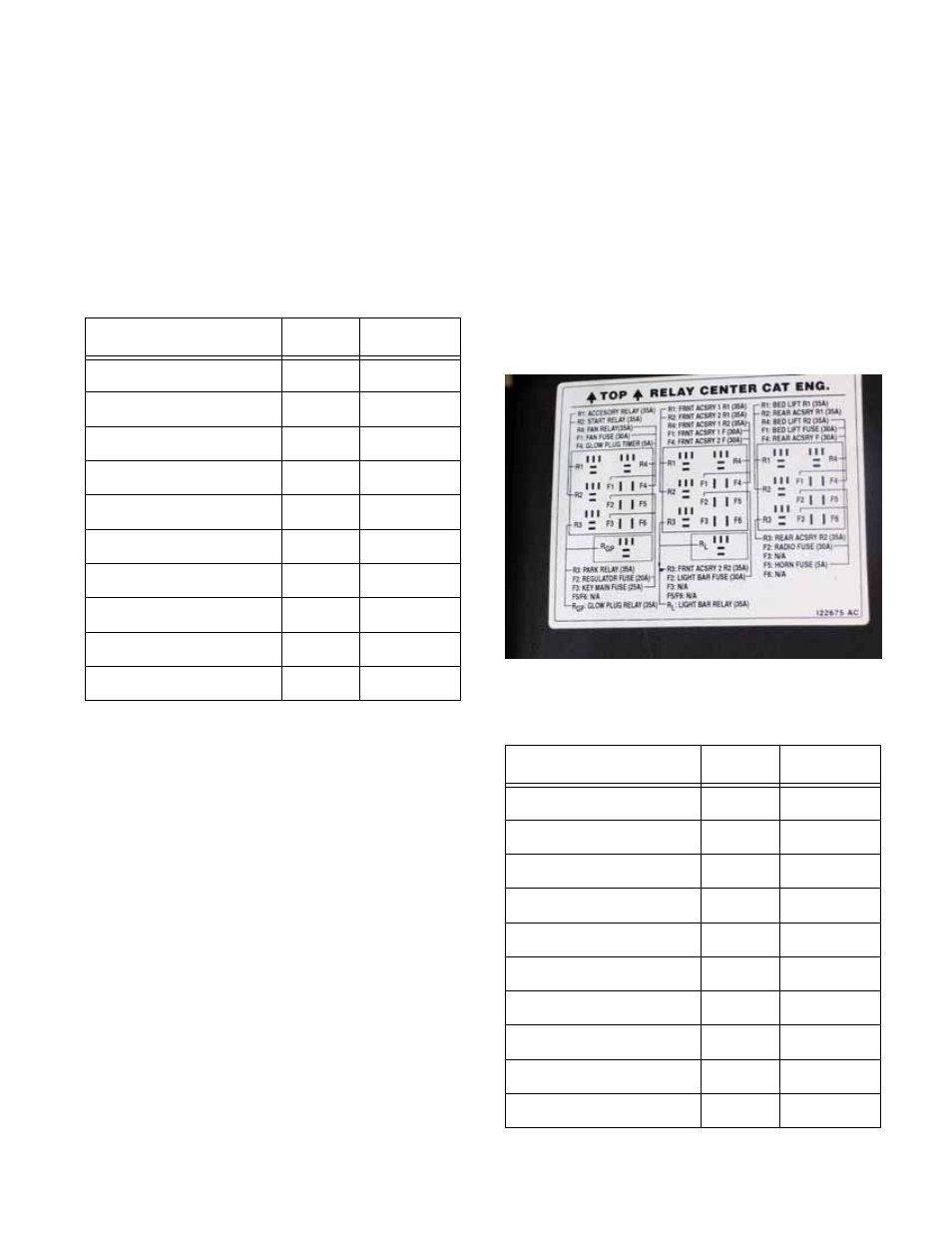

• The positions of the fuses and relays are
described on label on the fender.
See Figure 9.4.
Item Place Rating
Bed Lift Relay R1 20/35A 14V
Rear Accessory R1 R2 20/35A 14V
Rear Accessory R2 R3 20/35A 14V
Bed lift Relay R2 R4 20/35A 14V
Bed Lift Fuse F1 30A ATM
Radio Fuse F2 30A ATM
Unused F3 N/A
Rear Accessory R2 F4 30A ATM
Horn F5 5A ATM
Unused F6 N/A
Figure 9.4
