Caterpillar Enclosed CVT Addendum
76
CONVERSION INSTRUCTIONS: ENCLOSED CVT
1. PREPARATION
1a. Review and understand these instructions
before starting to work on the vehicle.
1b. Collect all necessary tools.
1c. Lay-out the contents of the CVT enclosure
kit. Make sure all the parts are present
and identified. See Figure 2b.1.
2. ACCESS
2a. Lift the load box (bed).
2b. Slide the driver’s seat all the way back on
its tracks.
2c. Tilt the seats forward. Secure the driver’s
seat in the tilted position using a shock
cord.
2d. Release the Camlok fasteners that secure
the parcel bin under the passenger seat,
and remove the parcel bin.
2e. Release the camlok fasteners that secure
the engine cover, and remove the cover.
2f. Unbolt the passenger’s seat mounting
bracket from the seat plate using a pair of
1/2” wrenches. Remove the seat and
bracket. See Figure 2b.2.
NOTE: It is not necessary to disconnect any fuel
lines. The fuel pump and filter will be moved to
provide room for the CVT cover to fit into the
area below the seat box.
Description Qty.
Mounting stud: driven pulley
and fan 1
Washer 1
Castle nut, 1/2”-20 1
Washer, fan 1
Cotter pin, 3/32” x 1” 1
Back plate-eng. screw 5
Back plate-trans screw 4
Cover screw 12
Bracket mount screw 2
CVT Spacer washers 3

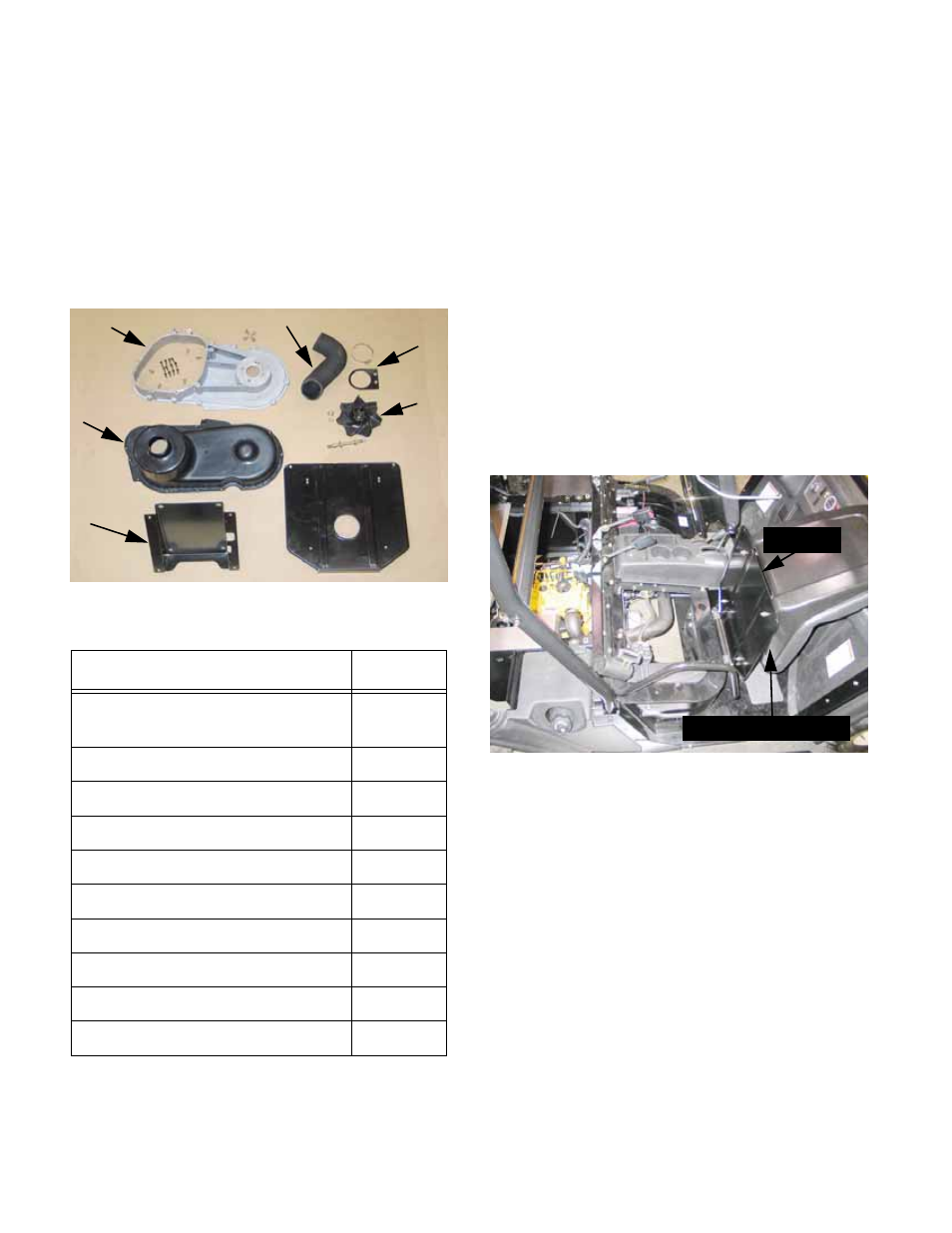

Figure 2b.1
New back plate
CVT cover
Seat
bracket
Intake tube
Seat plate
Tube
bracket
Fan
Figure 2b.2
Seat plate
Seat mounting bracket
