Caterpillar Enclosed CVT Addendum
85
8. FINAL ASSEMBLY
8a. Install the drain plug in the CVT cover, and
carefully tighten it until snug, using a 9/16”
wrench. See Figure 2b.30.
8b. Slip the CVT cover in through the opening
in the passenger side of the seat box.
See Figure 2b.31.
8c. Rotate the CVT cover down into position.

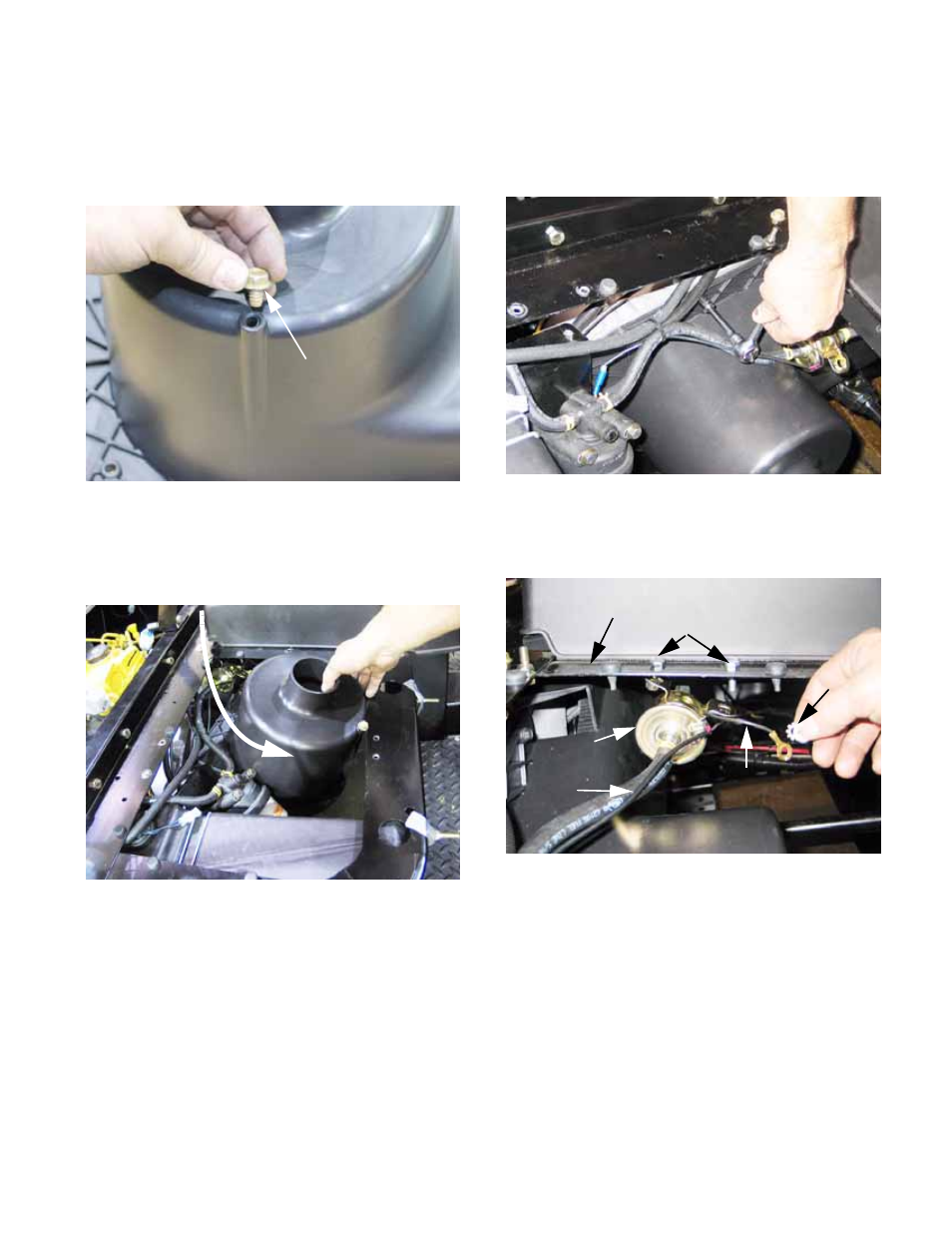

Figure 2b.30
Drain plug
Figure 2b.31
8d. Fasten the CVT cover to the back plate
using the (12) 1/4-20 self tapping screws.
Tighten the screws using a 3/8” wrench.
See Figure 2b.32.
8e. Mount the fuel pump to the console-cup
holder support. See Figure 2b.33.
NOTE: The star washer should be located under
the head of the bolt that the ground wire is
attached to, so that it bites through the paint to
establish a good electrical ground for the fuel
pump. Apply a small amount of silicone grease
to protect the joint from corrosion after the nuts
are tightened.
Figure 2b.32
Figure 2b.33
Console-cup holder support
Fuel pump mounting bolts
Fuel pump
“hot” wire
to fuel
pump
Ground wire
for fuel pump
Star
washer
