Chapter 2- Drive System: CVT and Transfer Case
28
9. Confirm that the transfer case is in neutral.
10. Disconnect the heavy Forward-Neutral-Reverse
shift rod from the shift arm mounted to the trans-
fer case. use a pair of 9/16” wrenches.
See Figure 2.47.
11. Disconnect the front of the Forward-Neutral-
Reverse shift rod from the Hurst shift mecha-
nism by removing the hairpin clip and tugging
the rod toward the right side of the vehicle.
12. Disconnect the lighter Low-range shift rod from
the shift arm mounted to the transfer case. Use
a pair of 1/2” wrenches. See Figure 2.48.
13. Disconnect the front of the Low-range shift rod
from the Hurst shift mechanism by removing the
hairpin clip and tugging the rod toward the left
side of the vehicle.
NOTE: Do not lose the plastic bushings.
14. Confirm that the parking brake is released.
15. Disconnect the parking brake cable from the
parking brake caliper by removing the hairpin
clip and clevis pin. See Figure 2.49.
16. Disconnect the transfer case safety switch har-
ness (orange and gray wires) from the main har-
ness. See Figure 2.50.
NOTE: Wire routing outboard of the flange that
surrounds the transfer case input shaft. This
keeps the wires well away from the exhaust sys-
tem.

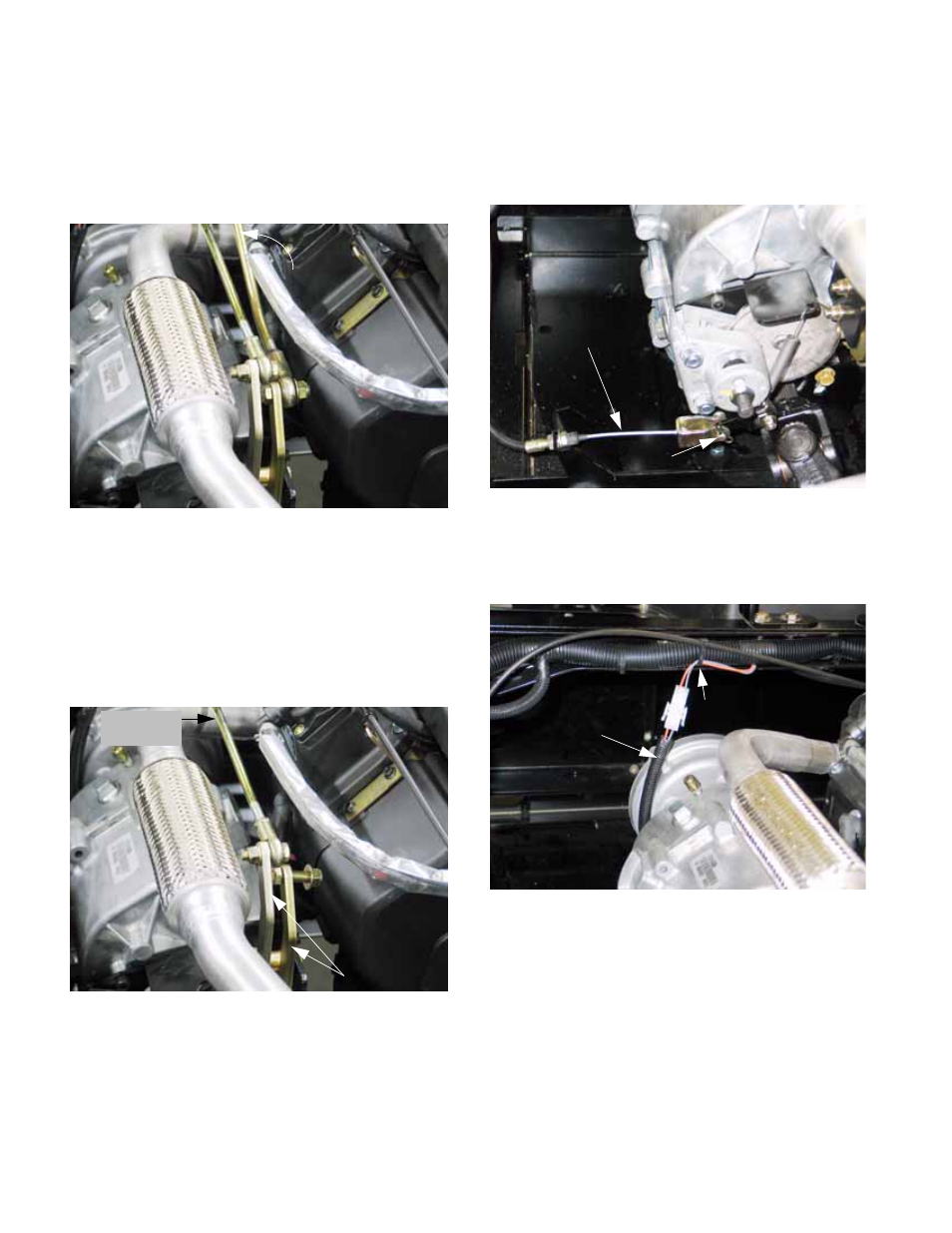

Figure 2.47
Forward-
Neutral-
Reverse
rod
Figure 2.48
Low-range
shift rod
shift arms
Transmission
Figure 2.49
Parking brake
cable
Clevis pin
Figure 2.50
Transfer case
switch harness
Main harness
