Installing and Removing Hardware
Cooling Fan 58
2 Remove the two thumbscrews from both sides of the panel.
3 Holding the server by the handles on both sides of the front panel, gently
slide it out.
Slide the server until it is automatically locked.
4 Make sure that the server cannot be slid backwards as it is locked by the
stopper.

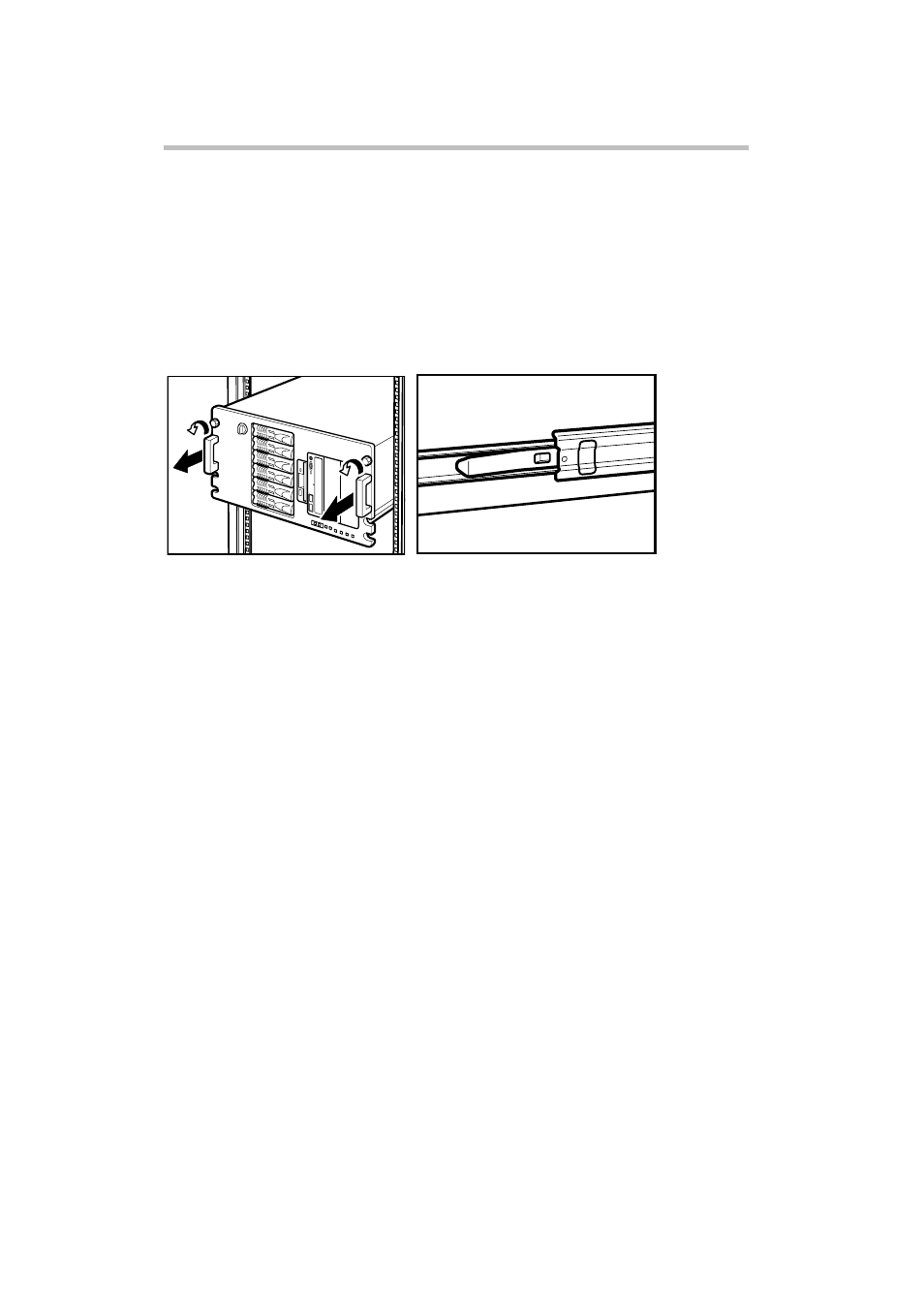

Sliding the server outwards (rack model)
Stopper
Sliding the server (rack model) into the rack
See “Installation Guide for Magnia-Series Rack Models”.
1 Hold the handles pressing the stopper, and gently slide it into the rack.
2 When it is located in place, fasten it with the two thumbscrews.
3 If some cables were disconnected from the back of the server for sliding it
out, connect them again.
Cooling Fan
There are three kinds of cooling fans provided in the server; one is the CPU fan
on the mother board, the second is the suction fan in the front part and the third
is the exhaust fan in the rear part. Additional installation of the suction fan and
exhaust fan makes a redundant fan configuration.
Removing the cooling fan
Before starting the job to remove the cooling fan, carefully read “Before start-
ing operation” of this chapter and proceed to the job according to the following
procedure.
1 If the server is in operation, shut it down first and cut off the power supply to
it.
