Installing and Removing Hardware
Expansion Cards

Installing the RAID Controller

NOTE: In using RAID controller C first, energize it fully to charge the backup
battery of a cache. Also, if RAID controller C was not energized for more than
72 hours, energize it fully after that.

There are RAID controllers C and D in a RAID controller. These two control-
lers cannot exist together in a system.
Install the RAID controller in the procedure below referring to “Before starting
operation” in Chapter 2.

Installing RAID Controller C and D

1 If the server is running, shut it down and turn off the power.

2 For the EPS model, unplug the power cable.

3 For the EPS-R model, set the DC operate switch on the back of the server to

OFF and then unplug the power cable.

NOTE: Installing the RAID controller while the power is on may damage the
server and RAID controller.

4 Remove the server panels.

See “Removing and replacing the server panels” on page 24.

5 Disconnect a SCSI cable from the mother board.

Do not pull the cable. Grasp the connector and pull it straight out.

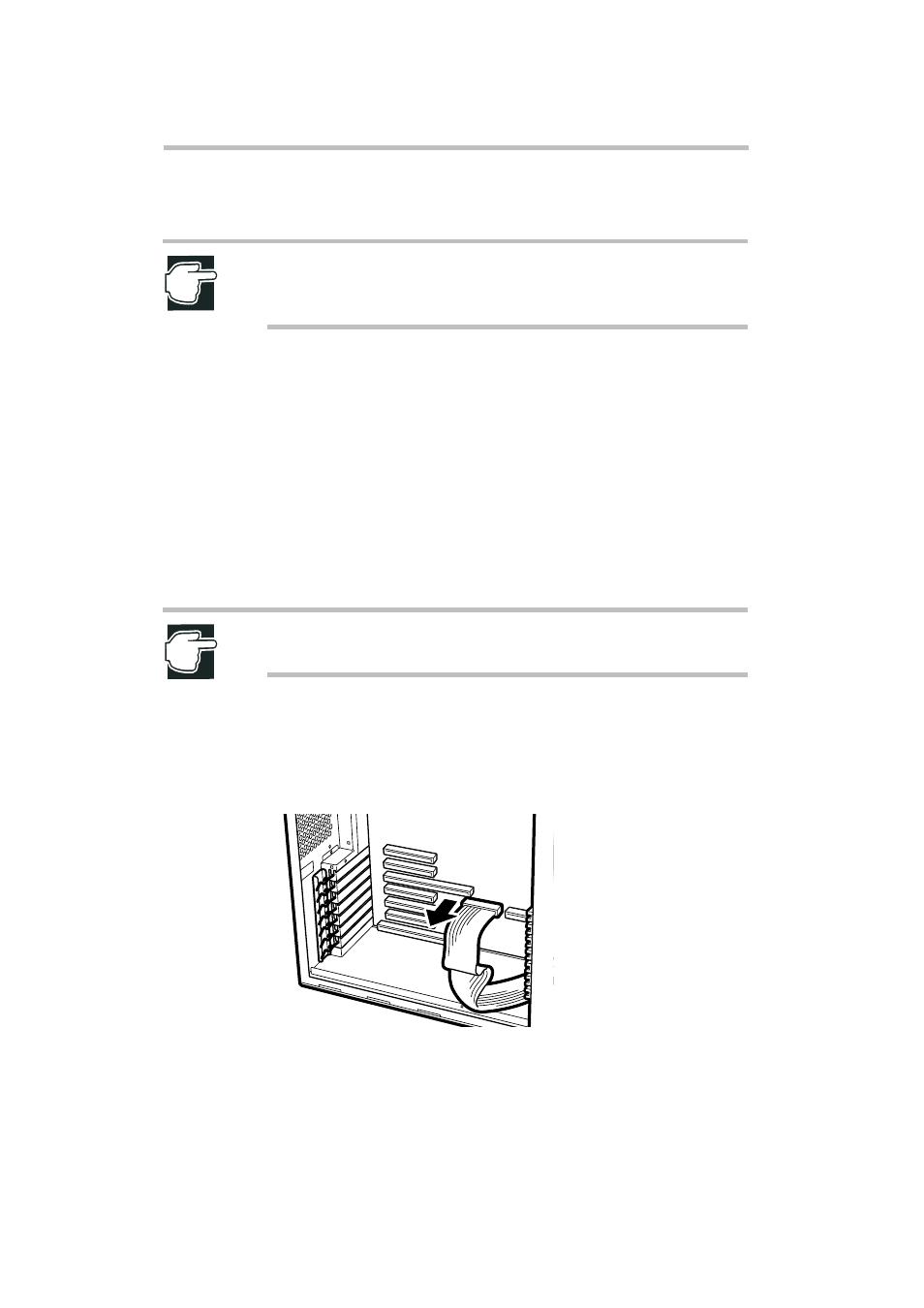

Disconnecting the SCSI cable
