207

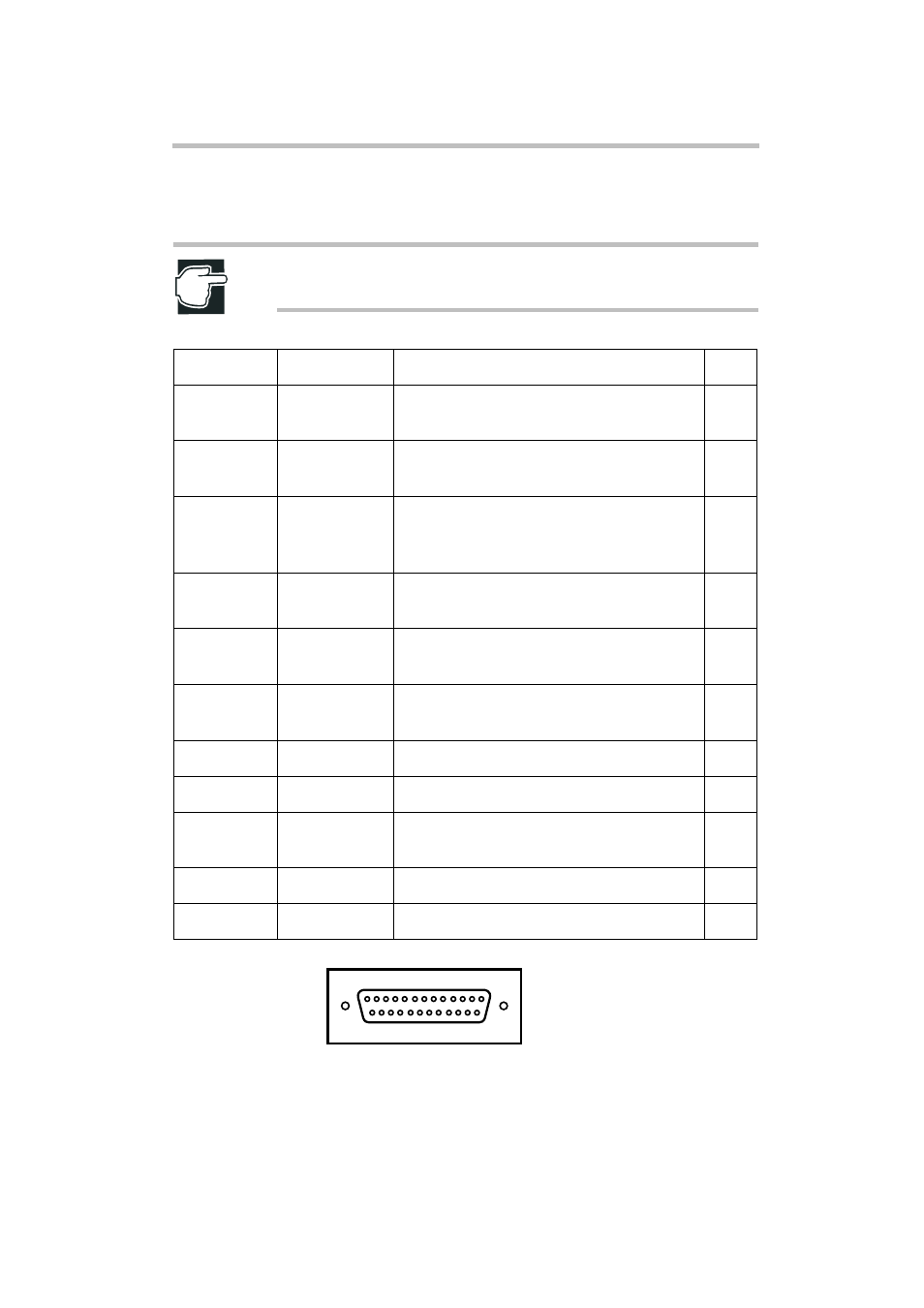

Printer interface
NOTE: In the table below, “I/O” denotes the input/output when seen from the
server.
Pin number Signal name Meaning I/O
1 _STROBE Synchronizing output signal for loading PD0-
to-PD7 data O
2-9 RD0-PD7 Output signal for sending the 0th-to-7th bit
data O
10 _ACK Request pulse generated from the printer
immediately after its BUSY status has been
released I
11 BUSY DC-level signal indicating whether the printer
is ready to receive data I
12 PE DC-level signal denoting that the lack of
printer paper has been detected I
13 SELECT DC-level signal denoting the select/directory
status of the printer I
14 _AUTFD Input/output signal O
15 _ERROR DC-level signal indicating a printer error I
16 _PRINT Output signal for initializing the printer con-
troller O
17 _SLIN Not used I/O
18-25 GND Signal ground
13 1
14 25
