Getting Started
Inside the server 30

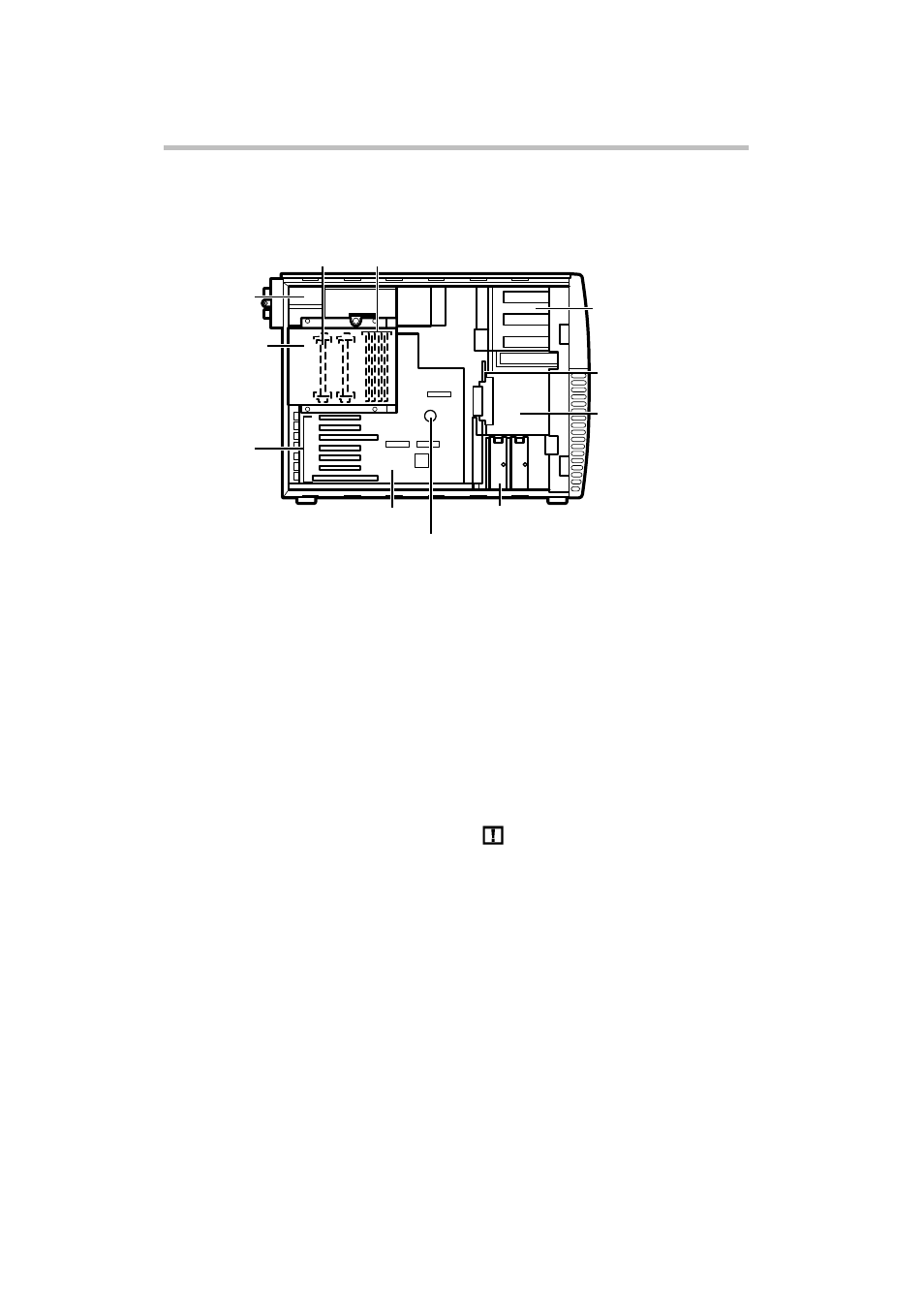

Inside the server
Inside the server
(1) Motherboard
The motherboard can contain 2 CPU modules, 4 memory modules, 6 PCI
expansion cards and 1 ISA expansion card at the maximum.
(2) Cooling fans
The server contains cooling fans for the hard disk drives, power supply unit,
motherboard and CPU, one for each device. You can install an additional fan
module in the server so that, if one module fails, the remaining module allows
the server to keep running. (Downgraded operation)
If a cooling fan fails, the Fault lamp ( ) flashes to give a warning of it.
See “(6) System status indicators” on page 14.
The failed cooling fan must be repaired as soon as possible.
The failure in the remaining cooling fan might result in the corruption or loss of
important data and programs.
Note that prolonged downgraded operation could shorten service life of each
system component.
See “Cooling Fan” on page 58.
(4) SMC
board
Device bay
Hard disk
drive
(5) Internal battery
(1) Motherboard
(7) Expansion
slots
Power supply
unit
(3) CPU slot (6) Memory slots
(2) Cooling fan (air-intake fan)
(2) Fan duct and
cooling fan
(exhaust fan)
