Rockwell Automation Publication PFLEX-IN029B-EN-P - August 2014

95

PowerFlex 700H and 700S Drives - Frame 11 Procedures

Chapter 3

Removing the Main AC or DC Fan Power Supply Assemblies

You must remove the main fan power supply assemblies from the drive in order to
test and/or replace the AC or DC fan power supply circuit board, AC fan
inverter output transformer, and/or AC fan inverter capacitor. Follow these steps
to remove the main fan inverter assemblies.

Note: You only need to complete the steps necessary to remove the fan assembly
(left side, center, or right side) you are testing or replacing.

1.

Review the General Precautions on page

17

.

2.

Remove power from the drive. See Remove Power from the Drive on page

91

.

3.

Move the control frame and remove the air flow plate and protective
covers. See Move the Control Frame and Remove the Air Flow Plate and
Protective Covers
on page

92

.

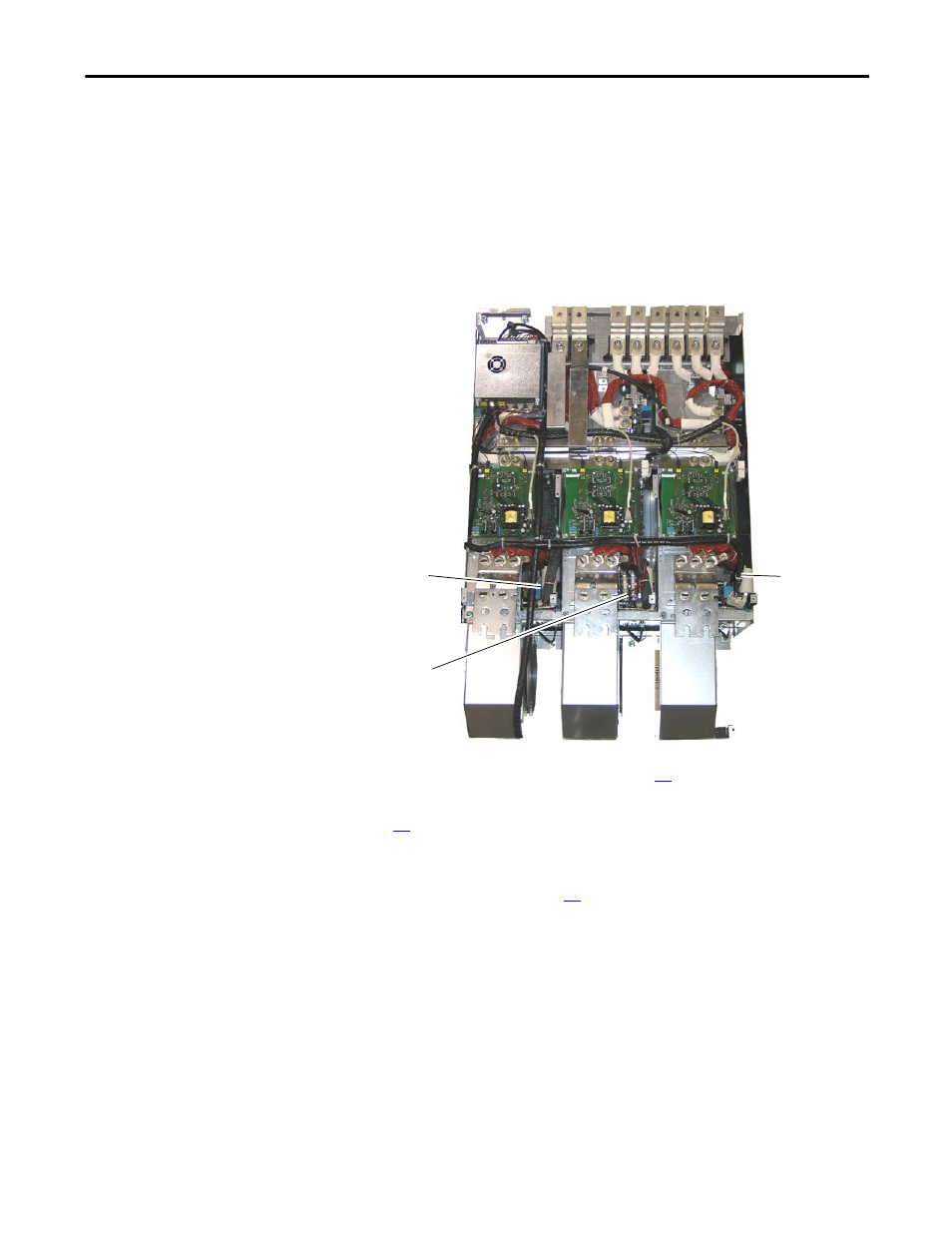

Left Side

Fan Inverter

Center Fan

Inverter

Right Side
Fan Inverter

Note: AC Fan

Systems Shown
