70

Rockwell Automation Publication PFLEX-IN029B-EN-P - August 2014

Chapter 2

PowerFlex 700H and 700S Drives - Frame 10 Procedures

5.

Install the new DC fan power supply assembly in the reverse order of
removal, using the existing sheet metal housing.

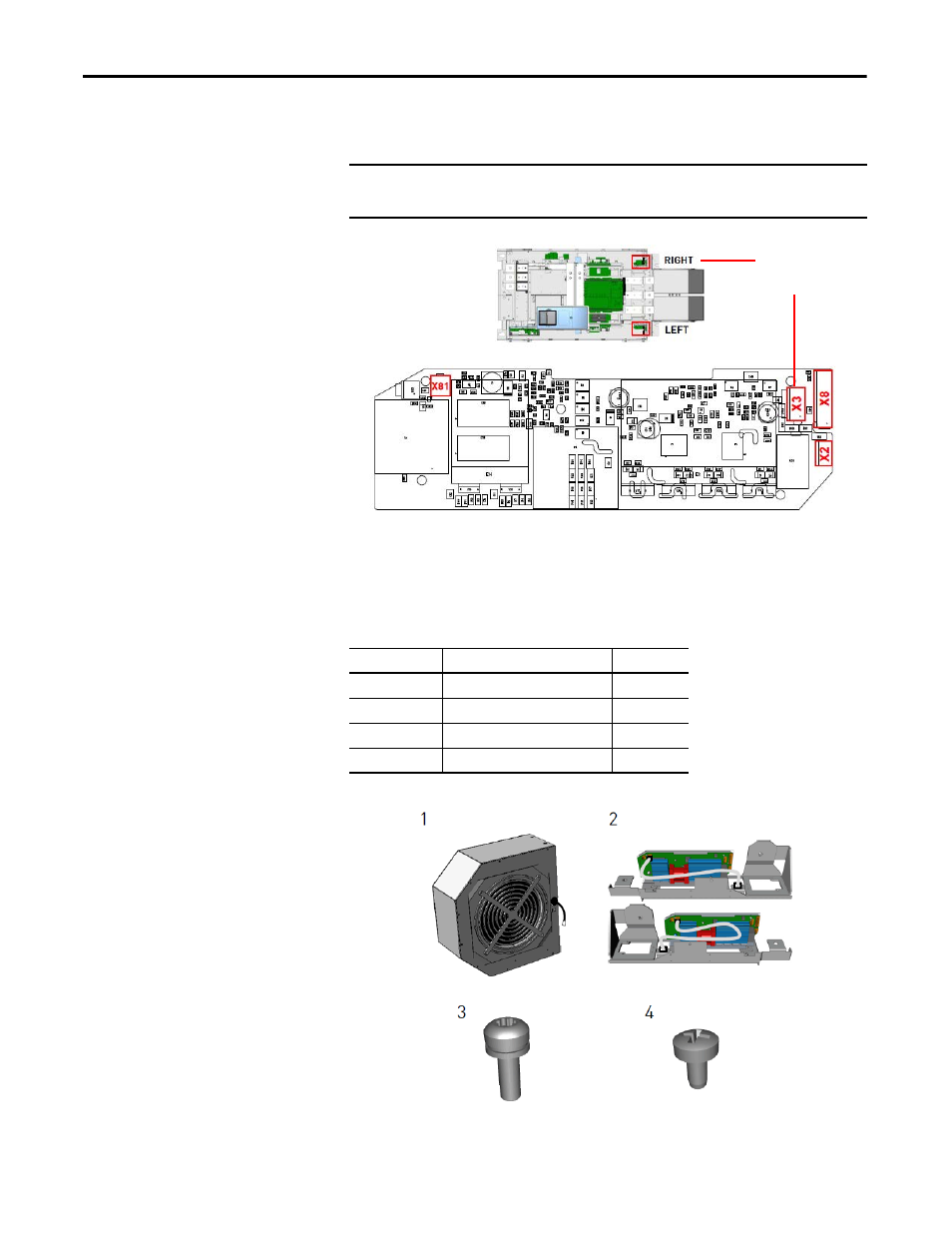

AC to DC Fan System Retrofit Kit (SK-H1-DCFANRETROFIT-F10)

The frame 10 main AC to DC fan system retrofit kit contains the following
parts:

IMPORTANT

If you are replacing a right-side DC fan power supply assembly, install the
jumper on connector X3.

Item Number

Description

Quantity

1

Main DC fan assembly

2

2

DC fan power supply assembly

1

3

M6 x 20 mm POZIDRIV screw

4

4

M5 x 10 mm POZIDRIV screw

12

For right-side DC fan
assemblies, install
jumper on connector X3.
