PowerFlex 700H and 700S Drives - Frame 10 Procedures

9.

If the original, defective capacitor being replaced is series B, continue with
the next step. If the original, defective capacitor being replaced is series A,
secure the new fan capacitor adapter bracket to the AC fan inverter
assembly using the new M8 x 16 mm hexagonal socket screw and washer
provided in the replacement kit.

IMPORTANT

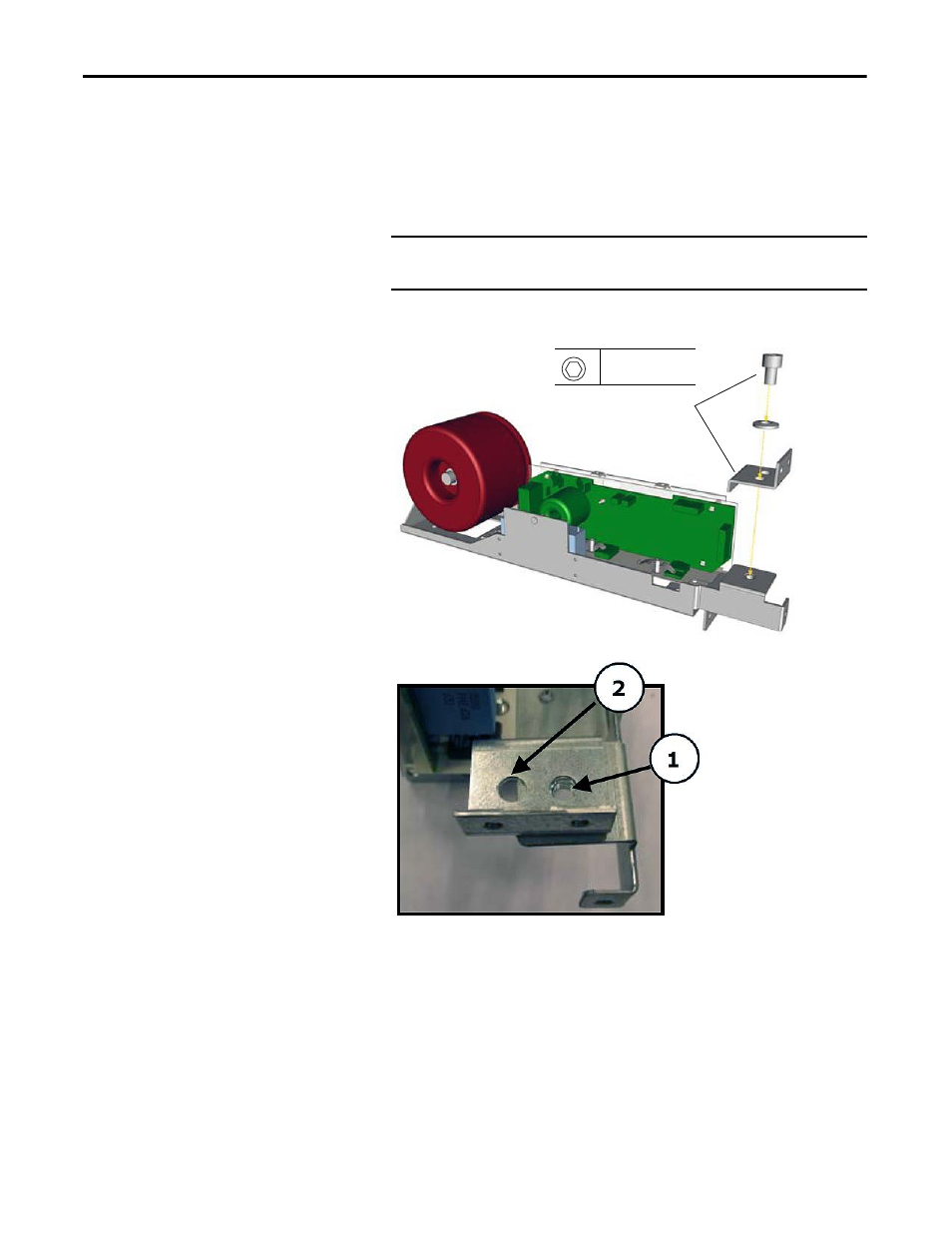

Assemble the adapter bracket using the appropriate mounting hole as
shown in the illustration below.

6 mm
12 N

m (106 lb

in)

9

Use this hole (1) when
installing the adapter
bracket on the right-side
AC fan inverter assembly.

Use this hole (2) when
installing the adapter
bracket on the left-side AC
fan inverter assembly.

Note: AC Fan System Shown
