Rockwell Automation Publication PFLEX-IN029B-EN-P - August 2014

169

PowerFlex 700H and 700S Drives - Frame 13 Procedures

Chapter 5

Main AC Fan Inverter Capacitor (SK-H1-FANCAP-F1314) Removal and
Installation (Converter Only)

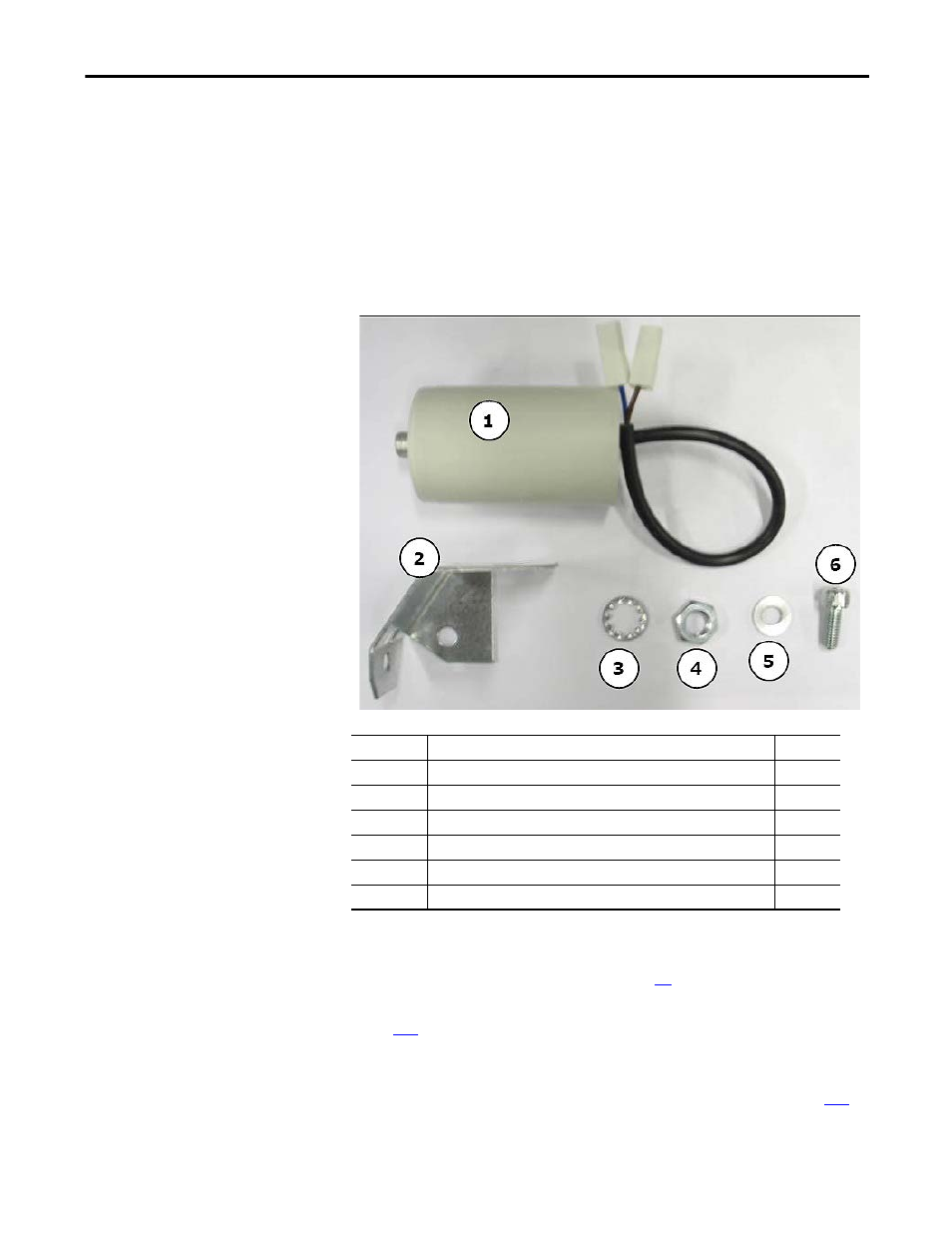

Note: The AC fan inverter capacitor replacement kit (SK-H1-FANCAP-F1314)
contains a new sheet metal bracket, hardware and fasteners, and a series B
capacitor (identified in the table and shown below). The series B capacitor
(50 mm dia. x 62 mm tall) is larger than the series A capacitor (35 mm dia. x 57
mm tall). If a series A capacitor is currently installed, always replace it with the
new series B capacitor.

Follow these steps to remove and replace the main AC fan inverter capacitor.

1.

Review the General Precautions on page

17

.

2.

Remove power from the drive. See Remove Power from the Drive on page

134

.

3.

Move the control frame, and remove the screens, airflow plates, and
protective covers from the drive. See Move the Control Frame, and
Remove the Screens, Airflow Plates, and Protective Covers on
page

135

.

Photo ID#

Part Description

Quantity

1

Fan capacitor

1

2

Fan capacitor bracket

1

3

Bracket lock washer (M12)

1

4

Bracket nut (M12)

1

5

Bracket spring washer

1

6

Bracket hexagonal socket screw (M8 x 12 mm)

1
