PowerFlex 700AFE Drive - Frame 10 Procedures

Chapter 7

5.

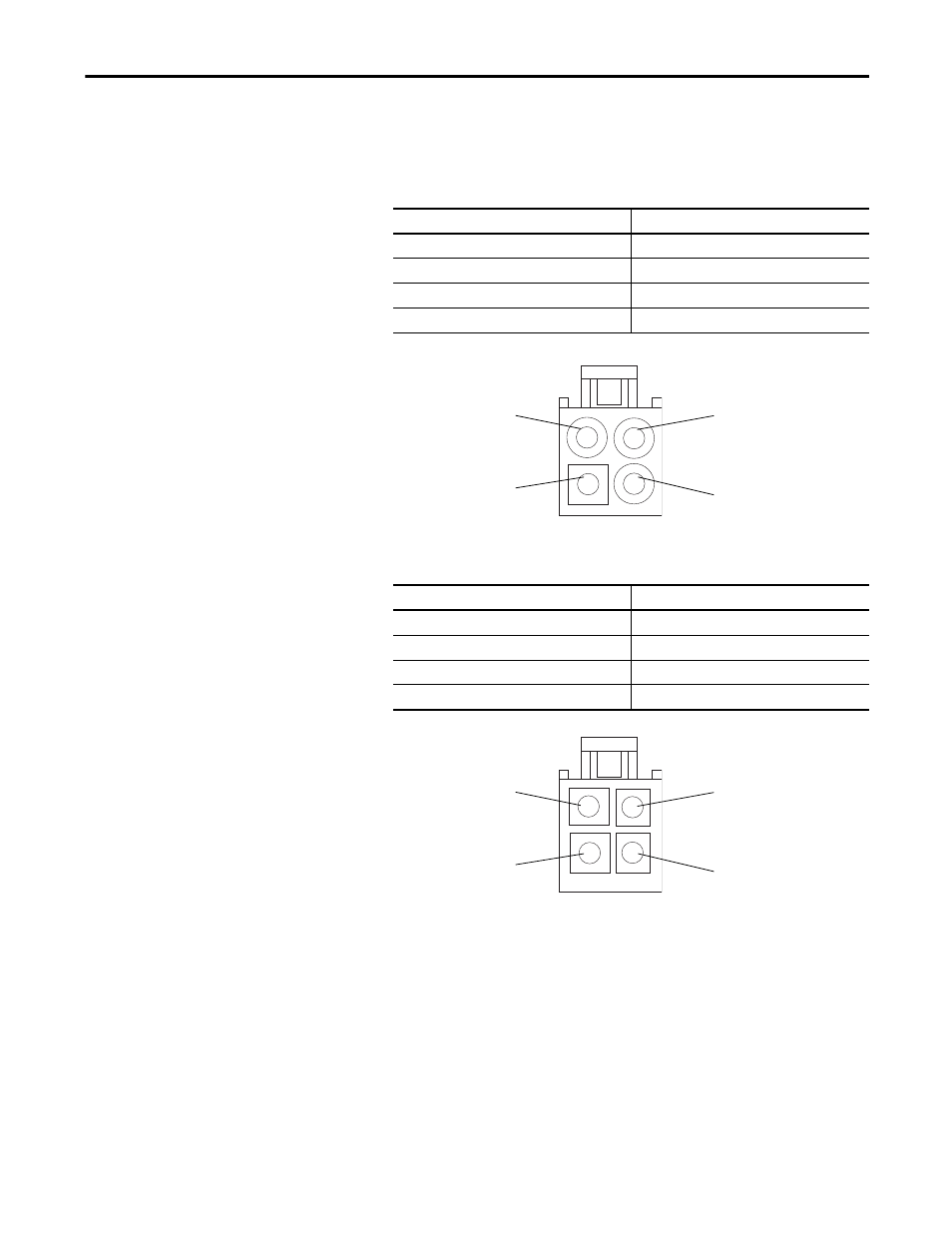

Using the appropriate table below, measure the resistance between the fan
supply wires.

AC Fan

: If the measurements are not similar to those in this table, replace

the AC fan.

DC Fan

: If the measurements are not similar to those in this table, replace

the DC fan.

6.

For AC fan systems, install the new fan assembly in the reverse order of
removal. For DC fan systems, complete the remaining steps.

Connection wires

Resistance ±5%

Black-Brown

62

Ω

Brown-Blue

36

Ω

Blue-Black

27

Ω

Green-chassis

0

Ω

Connection wires

Resistance ±5%

Red-Blue

∞ Ω

Red-White

∞ Ω

White-Yellow

∞ Ω

Blue-White

∞ Ω

Blue (Motor) Pin 4

Green/Yellow (Ground) Pin 1

Brown (Motor) Pin 3

Black (Motor) Pin 2

AC Fan Pinouts

White (Tach Output) Pin 3

Red (+) Pin 1

Blue (-) Pin 4

Yellow (Control Output) Pin 2

DC Fan Pinouts
