Rockwell Automation 20Y PowerFlex 700H, 700S, and 700AFE Drive Fan Systems, Frames 9...14 - Manual (Page 127)

Rockwell Automation Publication PFLEX-IN029B-EN-P - August 2014 127
PowerFlex 700H and 700S Drives - Frame 13 Procedures Chapter 5

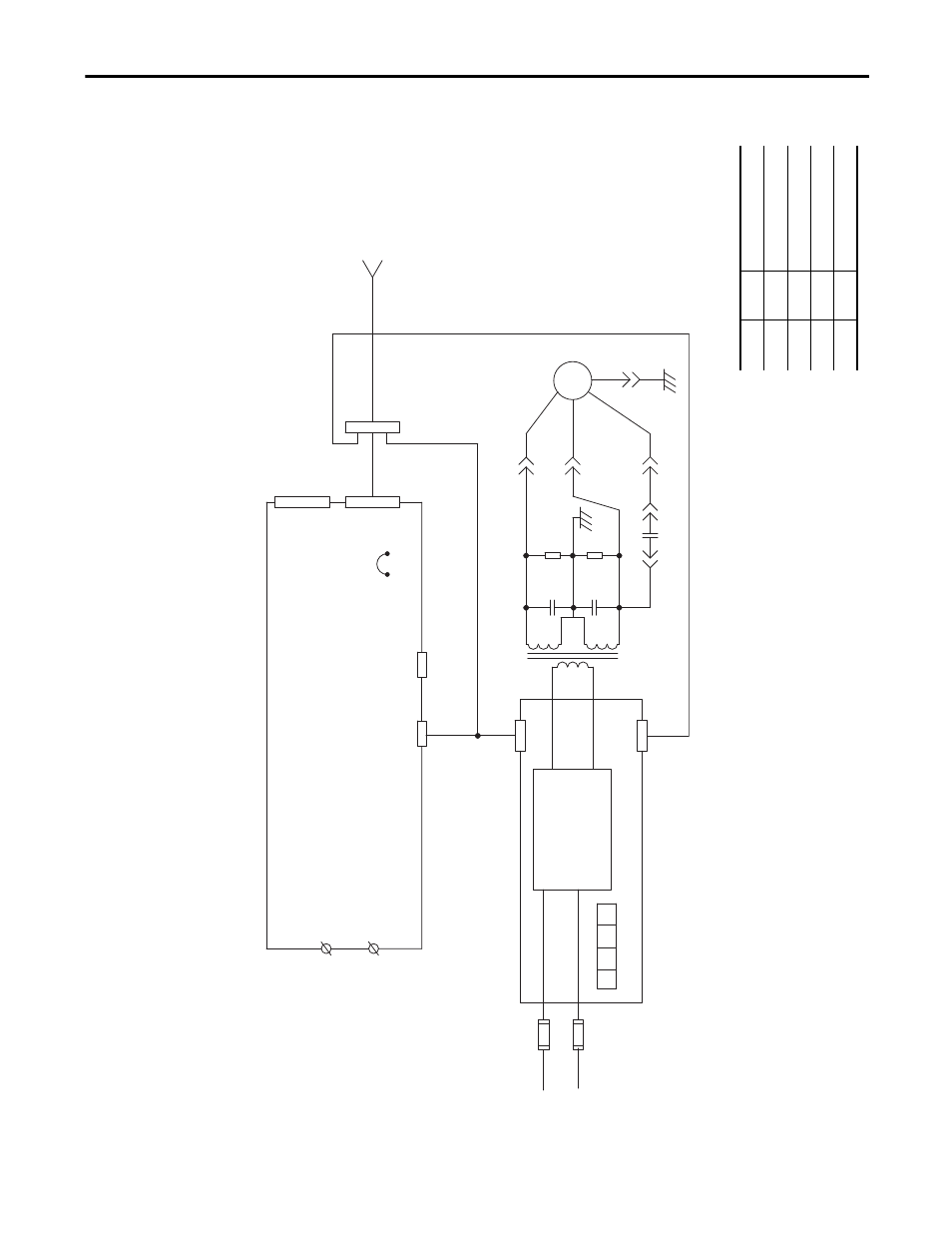

Figure 11 - Frame 13 AC Input Drive Converter AC Fan System
Rectifier Board
X201
X6
X13
X50
X1
(+)
DC/AC
X8
F1
X3
U1 V1
X4-1 X5-1
(-)
X2-1 X2-3
BLK
300VAC 300VAC
1
BLK
2
3
BLK BLK
2.2uf
4
BLK
5
2.2uf
1
7uf
Brown
10Meg 10Meg
Black
3
Ylw/Grn
4
M1
6
Blue
2
BLK
F2
S1-1 S1-2 S1-3 S1-4
Off
On
S1 Setup Switch
Off
Off
Fan Frequency Converter
From previous NFE or U Phase Inverter Module
M
DC- DC+
Swit
ch
Se
tting
To i
n
dic
at
e the f
ollowi
ng:
S1
O
ff
50
H
z fan mot
or fr
equenc
y
S2
O
ff
22
0 V A
C mot
or v
oltage
S3
O
n
23
0 V A
C mot
or v
olta
ge
S4
O
ff
Fram
e s
iz
e 9…14
