Rockwell Automation 20Y PowerFlex 700H, 700S, and 700AFE Drive Fan Systems, Frames 9...14 User Manual
Page 41
Rockwell Automation Publication PFLEX-IN029B-EN-P - August 2014
41
PowerFlex 700H and 700S Drives - Frame 9 Procedures
Chapter 1

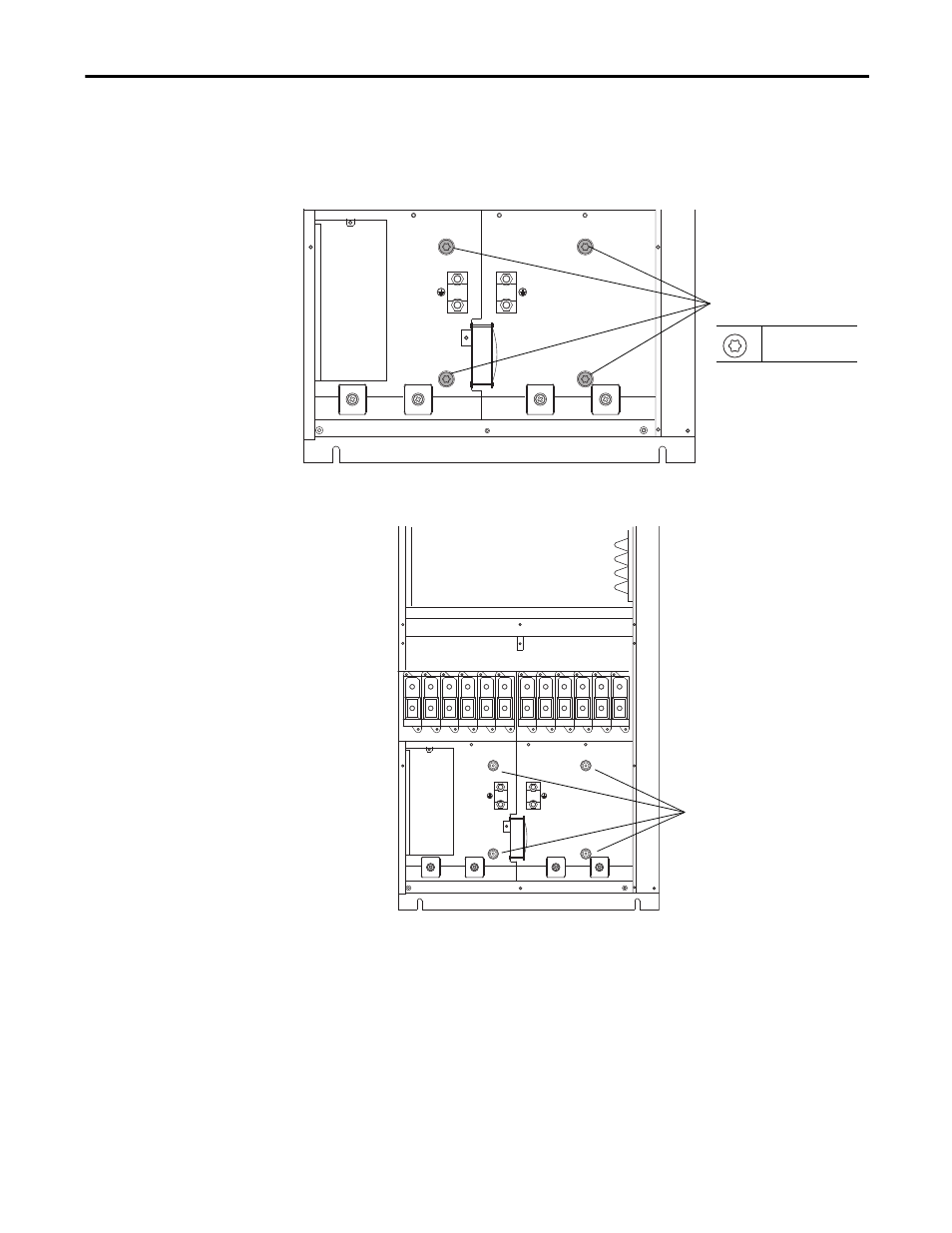

13.
Using a 9 cm long T20 hexalobular screwdriver, tighten (approximately 12
full screw rotations) the four screws (accessible through the holes in the
drive chassis) to secure the fan plenum sheet metal bracket against the fan
assembly inside the drive.
14.
Install the four rubber bushings in the four holes in the drive chassis.
13
T20
3.0 N
•
m (27 lb
•
in)
14
