Rockwell Automation 20Y PowerFlex 700H, 700S, and 700AFE Drive Fan Systems, Frames 9...14 User Manual
Page 251
Rockwell Automation Publication PFLEX-IN029B-EN-P - August 2014
251
PowerFlex 700AFE Drive - Frame 13 Procedures
Chapter 8
7.

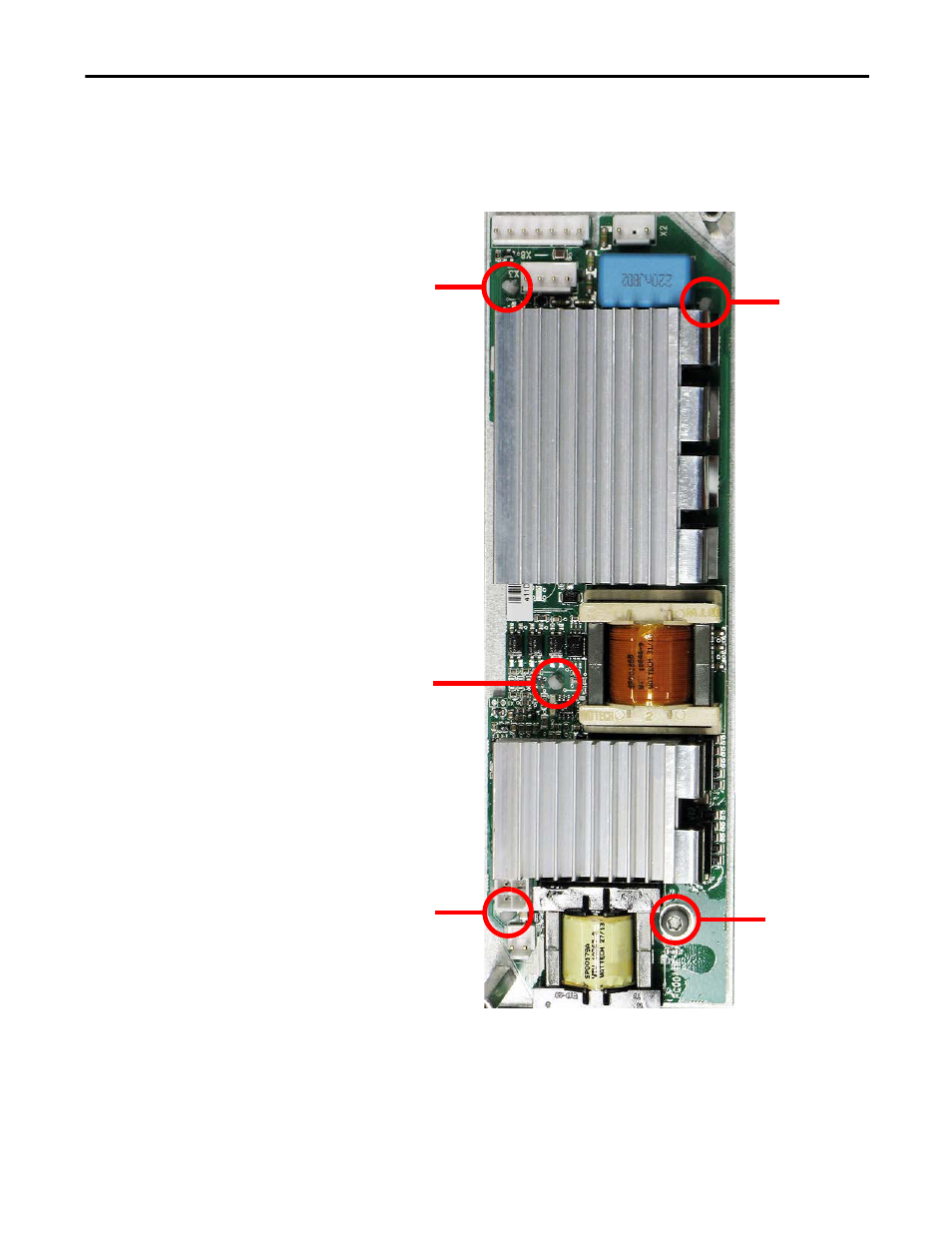

Remove the M4 x 8 mm hexalobular screw that secures the circuit board to
the sheet metal support.
8.
Remove the four fasteners that secure the DC power supply.
9.
Install the new DC fan power supply circuit board in the reverse order of
removal.
7
Image for SK-H1-DCFANBD1
8
8
8
8
