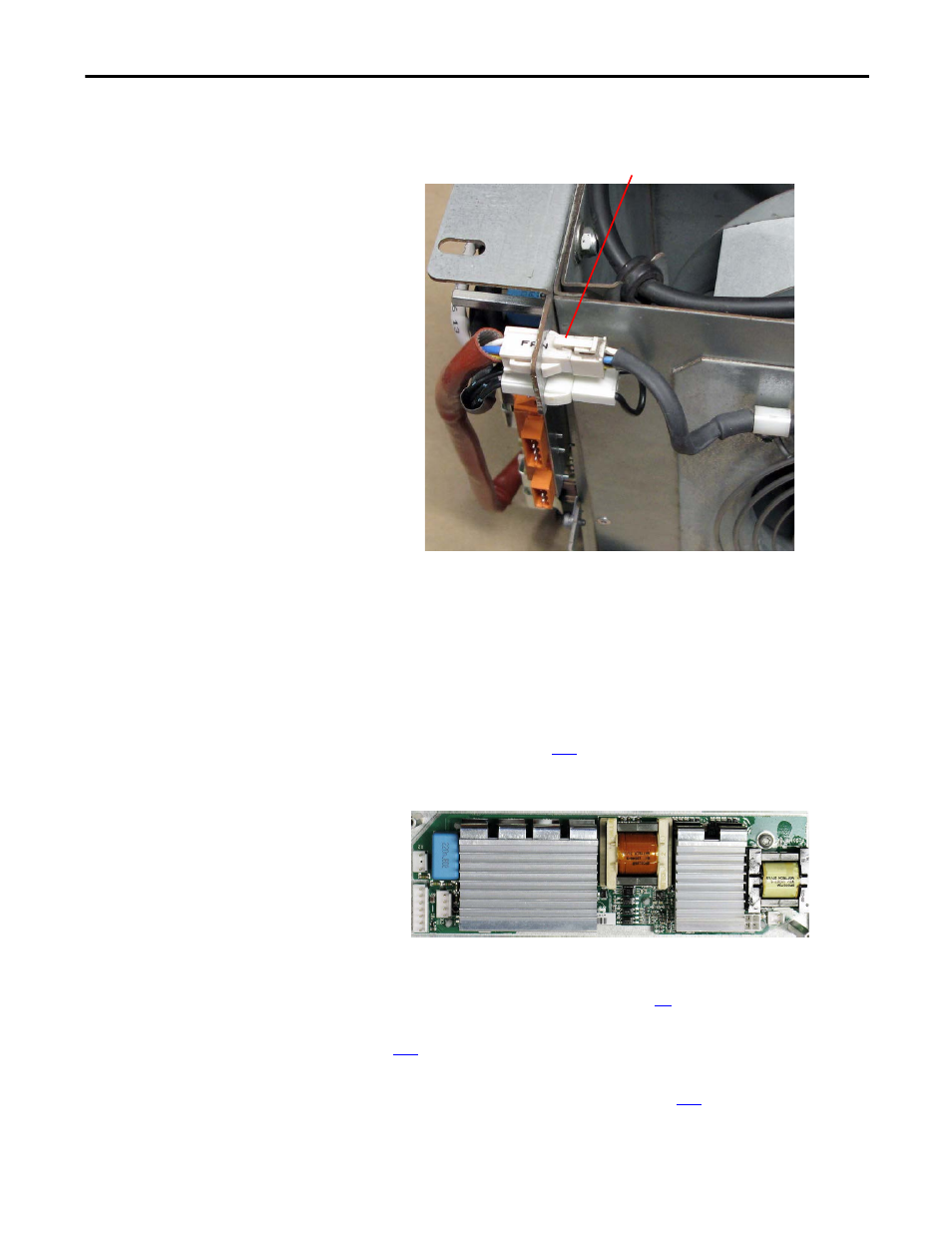

13. Reconnect the X1 connector from the fan to the connector on the sheet
metal housing.
14. Install the fan housing the reverse order of removal.
LCL Filter DC Fan Power Supply Circuit Board (SK-H1-DCFANBD1) Removal and Installation
If the LCL filter already has a new fan power supply kit (SK-Y1-DCPS2-F10)
installed, the DC fan power supply circuit board (SK-H1-DCFANBD1) can be
installed as a replacement part.
Note: See Appendix B on page 277 to verify the version of the DC fan power
supply circuit board installed in your system.
1. Review the General Precautions on page 17 .
2. Remove power from the AFE. See Remove Power from the AFE on page
192 .
3. Remove the LCL filter fan assembly from the AFE. See LCL Filter Fan
Assembly Removal and Installation on page
229 .
13 Image for SK-Y1-DCPS2-F10
SK-H1-DCFANBD1
