PowerFlex 700AFE Drive - Frame 10 Procedures

Chapter 7

6.

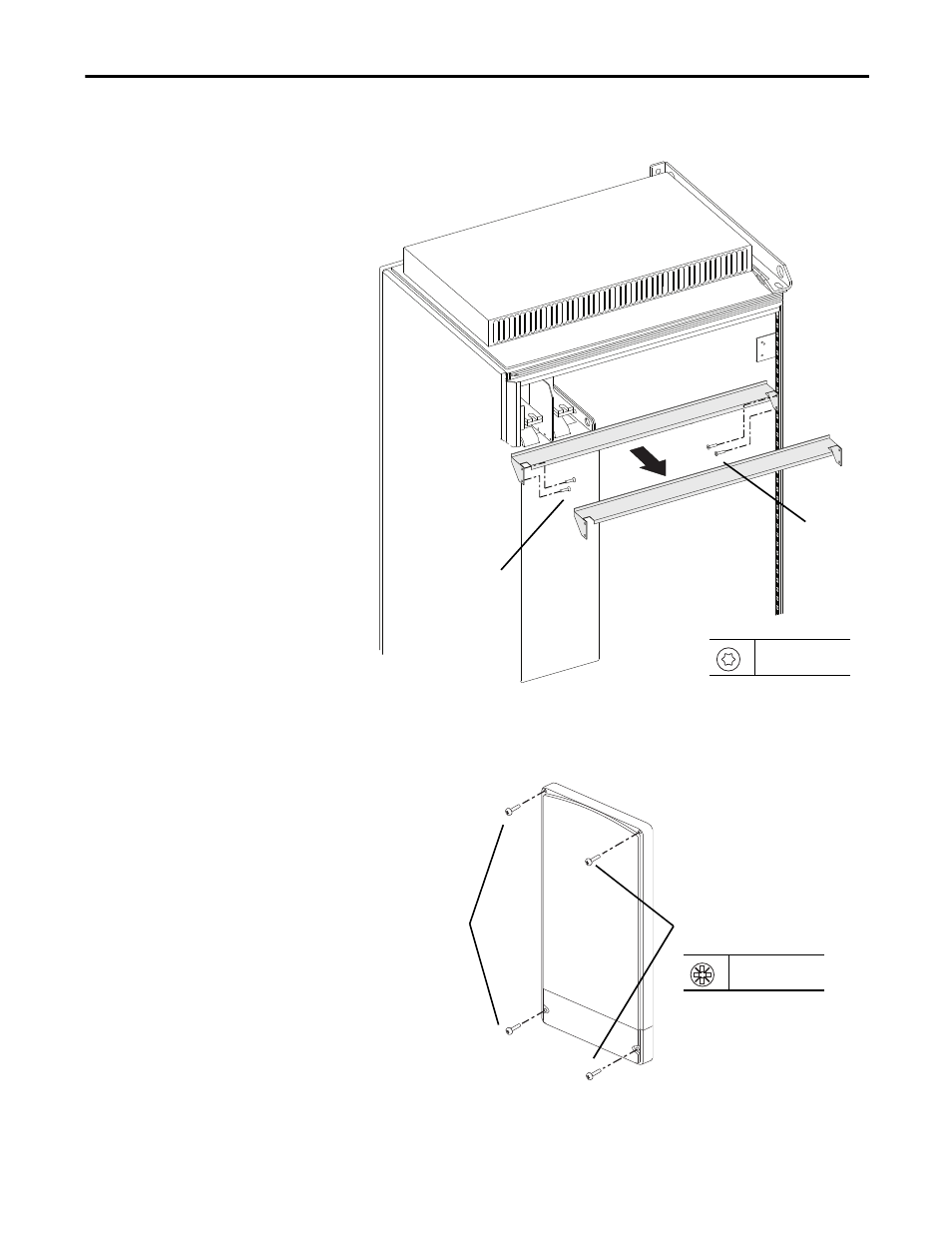

Remove the four T8 hexalobular screws which secure the air flow plate to
the AFE and slide the air flow plate off the AFE.

7.

Remove the four M5 x 16 mm POZIDRIV screws that secure the
protective front cover and terminal cover to the power structure and
remove the covers.

7

7

T20
3.0 N

m (27 lb

in)

8

8

PZ2
1.65 N

m (14.6 lb

in)
